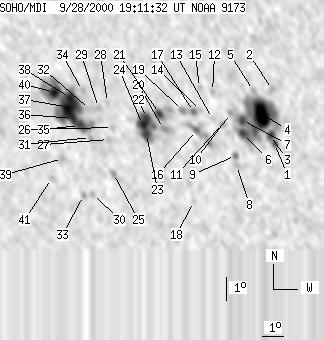

SOHO MDI 2000-09-28 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145 | 740 | 84 | 433 | -11.42 | 351.57 | -27.30 | 123.99 | 0.5425 | 41.4 | 26.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-28 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3 | 254 | 2 | 144 | -12.14 | 356.31 | -22.55 | 130.09 | 0.4921 | -909.5 | -593.3 | |
| 0 | 7 | 0 | 4 | -9.93 | 356.41 | -22.46 | 126.54 | 0.4703 | -666.0 | -600.8 | |
| 4 | -1 | 2 | -1 | -11.82 | 356.17 | -22.70 | 129.39 | 0.4907 | -1055.9 | 999999 | |
| 34 | -1 | 19 | -1 | -10.98 | 355.86 | -23.01 | 127.63 | 0.4866 | -1670.9 | 999999 | |
| 0 | 4 | 0 | 2 | -10.01 | 355.59 | -23.28 | 125.69 | 0.4812 | -670.0 | -567.5 | |
| 4 | -1 | 2 | -1 | -11.80 | 354.96 | -23.91 | 127.90 | 0.5048 | -95.7 | 999999 | |
| 6 | -1 | 3 | -1 | -11.26 | 355.01 | -23.86 | 127.09 | 0.4994 | -741.1 | 999999 | |
| 0 | 7 | 0 | 4 | -13.13 | 354.56 | -24.30 | 129.51 | 0.5216 | -663.0 | -602.5 | |
| 0 | 7 | 0 | 4 | -12.72 | 354.56 | -24.30 | 128.88 | 0.5178 | -853.0 | -588.3 | |
| 0 | 5 | 0 | 3 | -11.00 | 354.51 | -24.36 | 126.10 | 0.5031 | -378.0 | -179.3 | |
| 0 | 4 | 0 | 2 | -11.43 | 354.12 | -24.75 | 126.36 | 0.5115 | -296.0 | -183.9 | |
| 0 | 5 | 0 | 3 | -10.14 | 353.80 | -25.07 | 123.90 | 0.5045 | -636.0 | -516.3 | |
| 0 | 5 | 0 | 3 | -11.25 | 353.70 | -25.17 | 125.60 | 0.5150 | 429.0 | 305.1 | |
| 0 | 3 | 0 | 1 | -10.95 | 353.20 | -25.67 | 124.58 | 0.5186 | 801.0 | 723.6 | |
| 0 | 5 | 0 | 3 | -10.01 | 353.24 | -25.63 | 123.09 | 0.5104 | -726.0 | -575.8 | |
| 3 | 31 | 2 | 18 | -11.78 | 352.94 | -25.92 | 125.63 | 0.5287 | -590.2 | 49.6 | |
| 0 | 7 | 0 | 4 | -11.01 | 352.89 | -25.98 | 124.35 | 0.5229 | 841.0 | 698.5 | |
| 0 | 4 | 0 | 3 | -14.74 | 352.46 | -26.40 | 129.54 | 0.5599 | -475.0 | -421.7 | |
| 0 | 8 | 0 | 5 | -10.99 | 352.40 | -26.47 | 123.83 | 0.5288 | 700.0 | 620.4 | |
| 0 | 13 | 0 | 7 | -11.78 | 351.47 | -27.39 | 124.14 | 0.5464 | 817.0 | 595.6 | |
| 5 | 36 | 3 | 21 | -11.17 | 351.36 | -27.51 | 123.09 | 0.5430 | 854.9 | 473.7 | |
| 7 | 68 | 4 | 40 | -11.37 | 350.75 | -28.11 | 122.82 | 0.5519 | -1254.2 | -151.4 | |
| 9 | -22 | 5 | -22 | -12.07 | 350.67 | -28.19 | 123.82 | 0.5583 | 824.9 | 999999 | |
| 9 | -22 | 5 | -22 | -11.67 | 350.54 | -28.33 | 123.08 | 0.5568 | -955.7 | 999999 | |
| 0 | 6 | 0 | 3 | -13.78 | 348.94 | -29.92 | 124.75 | 0.5919 | -569.0 | -343.3 | |
| 0 | 5 | 0 | 3 | -11.87 | 349.15 | -29.72 | 122.14 | 0.5751 | -155.0 | -87.8 | |
| 0 | 6 | 0 | 3 | -12.38 | 348.90 | -29.96 | 122.68 | 0.5818 | 639.0 | 538.3 | |
| 0 | 4 | 0 | 2 | -10.86 | 349.04 | -29.83 | 120.50 | 0.5692 | 662.0 | 583.1 | |
| 0 | 4 | 0 | 3 | -11.09 | 348.60 | -30.27 | 120.49 | 0.5762 | 748.0 | 639.2 | |
| 0 | 5 | 0 | 3 | -14.73 | 347.82 | -31.04 | 125.09 | 0.6118 | 629.0 | 427.6 | |
| 0 | 5 | 0 | 3 | -12.35 | 348.07 | -30.79 | 121.93 | 0.5915 | 860.0 | 793.5 | |
| 0 | 3 | 0 | 2 | -11.20 | 348.17 | -30.70 | 120.30 | 0.5822 | 680.0 | 614.3 | |
| 0 | 5 | 0 | 3 | -14.80 | 347.39 | -31.48 | 124.81 | 0.6172 | 710.0 | 574.0 | |
| 0 | 4 | 0 | 2 | -10.44 | 347.94 | -30.93 | 118.95 | 0.5799 | 919.0 | 790.1 | |
| 16 | 206 | 10 | 126 | -11.89 | 347.62 | -31.24 | 120.87 | 0.5936 | 1045.6 | 625.1 | |
| -35 | -35 | -35 | -35 | -11.62 | 347.38 | -31.49 | 120.28 | 0.5947 | 999999 | 999999 | |
| 22 | -35 | 13 | -35 | -11.18 | 347.25 | -31.62 | 119.52 | 0.5933 | 1350.3 | 999999 | |
| 11 | -35 | 7 | -35 | -10.77 | 347.29 | -31.57 | 118.94 | 0.5900 | 1475.1 | 999999 | |
| 0 | 7 | 0 | 5 | -13.31 | 346.63 | -32.24 | 122.12 | 0.6153 | 719.0 | 533.4 | |
| 12 | -35 | 7 | -35 | -10.61 | 346.61 | -32.25 | 118.18 | 0.5974 | 975.6 | 999999 | |
| 0 | 7 | 0 | 4 | -14.18 | 345.96 | -32.90 | 122.81 | 0.6289 | 453.0 | 303.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
