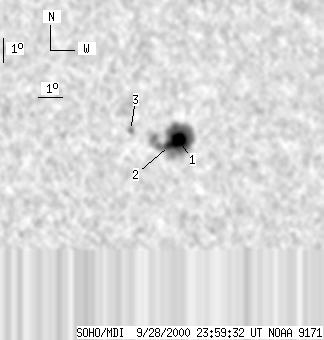

SOHO MDI 2000-09-28 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22 | 147 | 12 | 79 | -13.69 | 26.95 | 10.72 | 207.46 | 0.3937 | -1627.2 | -689.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-28 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 142 | 10 | 76 | -13.67 | 27.08 | 10.85 | 207.78 | 0.3943 | -1696.3 | -690.0 | |
| 4 | -1 | 2 | -1 | -13.91 | 26.73 | 10.50 | 206.71 | 0.3951 | -1357.8 | 999999 | |
| 0 | 5 | 0 | 3 | -13.26 | 25.12 | 8.89 | 203.78 | 0.3745 | -866.0 | -670.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
