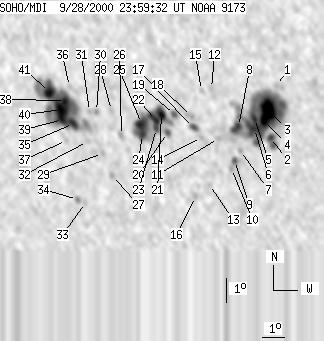

SOHO MDI 2000-09-28 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 147 | 793 | 86 | 455 | -11.35 | 351.73 | -24.50 | 126.90 | 0.5084 | 4.5 | 8.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-28 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 9 | 0 | 5 | -9.77 | 356.55 | -19.68 | 129.97 | 0.4348 | -746.0 | -595.9 | |
| 3 | 307 | 2 | 171 | -11.91 | 356.15 | -20.08 | 133.02 | 0.4614 | -963.5 | -625.0 | |
| 25 | -2 | 14 | -2 | -10.77 | 356.15 | -20.08 | 131.12 | 0.4496 | -1933.0 | 999999 | |
| 9 | -2 | 5 | -2 | -11.22 | 355.95 | -20.28 | 131.60 | 0.4566 | -1319.3 | 999999 | |
| 5 | -2 | 3 | -2 | -11.16 | 355.53 | -20.70 | 130.91 | 0.4608 | -1079.9 | 999999 | |
| 7 | -2 | 4 | -2 | -11.57 | 355.50 | -20.73 | 131.55 | 0.4653 | -733.1 | 999999 | |
| 0 | 4 | 0 | 2 | -12.50 | 354.82 | -21.41 | 132.13 | 0.4824 | -200.0 | -150.8 | |
| 4 | -2 | 2 | -2 | -11.52 | 354.82 | -21.41 | 130.55 | 0.4727 | -848.5 | 999999 | |
| 3 | 12 | 2 | 7 | -12.93 | 354.53 | -21.70 | 132.40 | 0.4901 | -781.2 | -592.6 | |
| 0 | 3 | 0 | 2 | -13.27 | 354.37 | -21.86 | 132.71 | 0.4953 | -704.0 | -592.0 | |
| 0 | 4 | 0 | 2 | -12.05 | 353.92 | -22.31 | 130.24 | 0.4883 | 619.0 | 553.0 | |
| 0 | 4 | 0 | 2 | -10.02 | 353.78 | -22.45 | 126.69 | 0.4709 | -751.0 | -656.1 | |
| 0 | 3 | 0 | 2 | -13.98 | 353.34 | -22.89 | 132.47 | 0.5137 | -480.0 | -391.2 | |
| 0 | 3 | 0 | 2 | -12.05 | 353.18 | -23.04 | 129.31 | 0.4968 | -527.0 | -343.7 | |
| 0 | 4 | 0 | 2 | -10.12 | 353.35 | -22.88 | 126.33 | 0.4772 | -619.0 | -479.5 | |
| 0 | 4 | 0 | 2 | -14.51 | 352.67 | -23.56 | 132.42 | 0.5263 | -557.0 | -572.6 | |
| 3 | 10 | 2 | 5 | -11.65 | 352.87 | -23.36 | 128.30 | 0.4968 | -458.7 | -430.1 | |
| 0 | 8 | 0 | 4 | -11.20 | 352.83 | -23.40 | 127.52 | 0.4933 | 659.0 | 460.2 | |
| 3 | 8 | 1 | 4 | -11.16 | 352.09 | -24.14 | 126.59 | 0.5017 | 754.1 | 590.5 | |
| 3 | 9 | 2 | 5 | -11.91 | 351.72 | -24.51 | 127.38 | 0.5129 | 646.7 | 538.6 | |
| 10 | 122 | 6 | 71 | -11.15 | 351.53 | -24.70 | 125.94 | 0.5084 | 1342.1 | 247.9 | |
| 3 | -21 | 2 | -21 | -11.45 | 351.28 | -24.95 | 126.14 | 0.5140 | 820.7 | 999999 | |
| 4 | -21 | 2 | -21 | -11.77 | 351.25 | -24.98 | 126.63 | 0.5172 | 712.4 | 999999 | |
| 7 | -21 | 4 | -21 | -12.05 | 350.60 | -25.62 | 126.37 | 0.5274 | 895.3 | 999999 | |
| 12 | -21 | 7 | -21 | -11.60 | 350.61 | -25.62 | 125.66 | 0.5235 | -950.3 | 999999 | |
| 0 | 6 | 0 | 4 | -12.15 | 349.66 | -26.57 | 125.52 | 0.5394 | -660.0 | -415.5 | |
| 0 | 4 | 0 | 2 | -13.83 | 349.06 | -27.17 | 127.43 | 0.5605 | -384.0 | -297.7 | |
| 0 | 5 | 0 | 3 | -11.14 | 349.32 | -26.91 | 123.61 | 0.5353 | 652.0 | 544.6 | |
| 0 | 3 | 0 | 2 | -12.94 | 348.72 | -27.51 | 125.78 | 0.5570 | 768.0 | 679.1 | |
| 0 | 4 | 0 | 2 | -11.22 | 348.64 | -27.59 | 123.08 | 0.5442 | 805.0 | 647.7 | |
| 0 | 3 | 0 | 2 | -11.24 | 348.33 | -27.90 | 122.81 | 0.5482 | 674.0 | 665.1 | |
| 0 | 4 | 0 | 3 | -12.48 | 348.10 | -28.13 | 124.49 | 0.5607 | 899.0 | 721.7 | |
| 0 | 3 | 0 | 2 | -15.04 | 347.67 | -28.56 | 127.77 | 0.5863 | 311.0 | 324.7 | |
| 0 | 5 | 0 | 3 | -14.93 | 347.31 | -28.92 | 127.28 | 0.5894 | 672.0 | 574.9 | |
| 7 | 236 | 4 | 141 | -11.78 | 347.55 | -28.68 | 122.90 | 0.5618 | 1134.5 | 646.3 | |
| 0 | 2 | 0 | 1 | -10.27 | 347.53 | -28.70 | 120.55 | 0.5509 | 701.0 | 672.6 | |
| 0 | 4 | 0 | 2 | -12.50 | 347.14 | -29.09 | 123.62 | 0.5722 | 564.0 | 475.6 | |
| 6 | -35 | 4 | -35 | -10.85 | 347.29 | -28.94 | 121.25 | 0.5581 | 1681.5 | 999999 | |
| 7 | -35 | 4 | -35 | -11.64 | 347.06 | -29.17 | 122.26 | 0.5667 | 978.5 | 999999 | |
| 14 | -35 | 9 | -35 | -11.23 | 347.06 | -29.17 | 121.64 | 0.5637 | 1485.8 | 999999 | |
| 12 | -35 | 7 | -35 | -10.57 | 346.59 | -29.64 | 120.20 | 0.5647 | 1051.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
