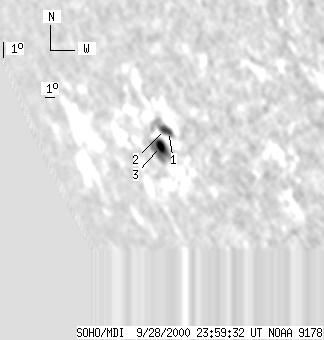

SOHO MDI 2000-09-28 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 86 | 17 | 108 | -21.43 | 314.39 | -61.84 | 116.82 | 0.9212 | -455.4 | -71.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-28 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 35 | 3 | 42 | -20.97 | 315.24 | -60.99 | 116.59 | 0.9150 | -634.9 | -194.1 | |
| 3 | -1 | 3 | -1 | -20.91 | 314.93 | -61.30 | 116.44 | 0.9168 | -525.1 | 999999 | |
| 9 | 51 | 11 | 66 | -21.75 | 313.95 | -62.28 | 117.01 | 0.9245 | -387.5 | 7.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
