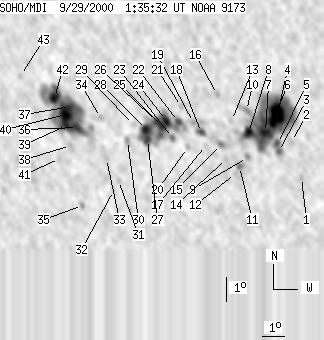

SOHO MDI 2000-09-29 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 147 | 855 | 84 | 487 | -11.41 | 352.04 | -23.31 | 128.41 | 0.4946 | -30.2 | 11.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-29 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -13.33 | 357.07 | -18.28 | 137.91 | 0.4573 | -704.0 | -635.8 | |
| 0 | 4 | 0 | 2 | -11.86 | 356.76 | -18.59 | 135.14 | 0.4442 | -151.0 | -185.7 | |
| 2 | 25 | 1 | 14 | -12.29 | 356.18 | -19.17 | 134.95 | 0.4552 | -785.3 | -590.4 | |
| 25 | 328 | 14 | 181 | -10.73 | 356.25 | -19.10 | 132.49 | 0.4378 | -1946.5 | -575.3 | |
| 3 | -3 | 2 | -3 | -11.96 | 356.16 | -19.19 | 134.40 | 0.4519 | -958.4 | 999999 | |
| 8 | -4 | 5 | -4 | -11.11 | 356.01 | -19.34 | 132.77 | 0.4445 | -1396.2 | 999999 | |
| 14 | -4 | 8 | -4 | -11.53 | 355.69 | -19.66 | 133.00 | 0.4526 | -960.6 | 999999 | |
| 9 | -4 | 5 | -4 | -11.56 | 354.97 | -20.38 | 132.01 | 0.4612 | -781.4 | 999999 | |
| 0 | 5 | 0 | 3 | -12.59 | 354.84 | -20.51 | 133.49 | 0.4733 | -169.0 | -68.1 | |
| 0 | 15 | 0 | 8 | -10.66 | 354.95 | -20.40 | 130.49 | 0.4523 | -457.0 | -442.9 | |
| 0 | 10 | 0 | 6 | -12.98 | 354.47 | -20.88 | 133.57 | 0.4814 | -610.0 | -568.6 | |
| 0 | 5 | 0 | 3 | -13.28 | 354.27 | -21.08 | 133.76 | 0.4867 | -555.0 | -538.8 | |
| 0 | 5 | 0 | 3 | -11.10 | 354.28 | -21.07 | 130.31 | 0.4645 | 273.0 | 282.8 | |
| 0 | 4 | 0 | 2 | -12.67 | 353.94 | -21.41 | 132.38 | 0.4842 | 313.0 | 343.0 | |
| 0 | 8 | 0 | 4 | -12.11 | 353.73 | -21.62 | 131.21 | 0.4809 | 832.0 | 639.8 | |
| 0 | 4 | 0 | 2 | -10.06 | 353.76 | -21.59 | 127.86 | 0.4608 | -840.0 | -630.9 | |
| 0 | 2 | 0 | 1 | -12.18 | 353.08 | -22.27 | 130.49 | 0.4891 | -428.0 | -358.8 | |
| 4 | 9 | 2 | 5 | -11.65 | 352.95 | -22.40 | 129.48 | 0.4855 | -378.7 | -197.8 | |
| 0 | 13 | 0 | 7 | -11.26 | 352.64 | -22.71 | 128.45 | 0.4854 | 559.0 | 598.0 | |
| 0 | 4 | 0 | 2 | -12.30 | 352.29 | -23.06 | 129.69 | 0.4993 | 631.0 | 459.0 | |
| 0 | 3 | 0 | 2 | -10.63 | 352.18 | -23.17 | 126.84 | 0.4852 | -364.0 | -267.6 | |
| 3 | 133 | 2 | 76 | -11.25 | 352.00 | -23.35 | 127.65 | 0.4931 | 734.4 | 347.2 | |
| 0 | 5 | 0 | 3 | -11.92 | 351.67 | -23.67 | 128.35 | 0.5030 | 676.0 | 658.4 | |
| 8 | -22 | 4 | -22 | -11.23 | 351.48 | -23.87 | 127.01 | 0.4992 | 1468.8 | 999999 | |
| 4 | -22 | 2 | -22 | -11.49 | 351.28 | -24.07 | 127.20 | 0.5038 | 881.6 | 999999 | |
| 4 | -22 | 2 | -22 | -11.30 | 351.04 | -24.31 | 126.61 | 0.5050 | 620.0 | 999999 | |
| 7 | -22 | 4 | -22 | -12.06 | 350.57 | -24.78 | 127.29 | 0.5173 | 838.8 | 999999 | |
| 9 | -22 | 5 | -22 | -11.65 | 350.57 | -24.78 | 126.64 | 0.5138 | -905.6 | 999999 | |
| 0 | 4 | 0 | 2 | -11.47 | 350.01 | -25.34 | 125.76 | 0.5189 | -472.0 | -345.5 | |
| 0 | 6 | 0 | 4 | -12.14 | 349.68 | -25.67 | 126.46 | 0.5286 | -693.0 | -480.7 | |
| 0 | 3 | 0 | 2 | -13.83 | 349.09 | -26.26 | 128.36 | 0.5501 | -484.0 | -358.1 | |
| 0 | 6 | 0 | 4 | -14.26 | 348.81 | -26.54 | 128.70 | 0.5570 | -493.0 | -394.6 | |
| 0 | 3 | 0 | 2 | -12.94 | 348.66 | -26.69 | 126.60 | 0.5474 | 827.0 | 749.4 | |
| 0 | 5 | 0 | 3 | -11.26 | 348.57 | -26.78 | 123.93 | 0.5346 | 741.0 | 639.7 | |
| 0 | 4 | 0 | 3 | -14.97 | 347.31 | -28.04 | 128.18 | 0.5799 | 730.0 | 563.2 | |
| 7 | 222 | 4 | 132 | -11.73 | 347.49 | -27.86 | 123.61 | 0.5515 | 1344.5 | 683.7 | |
| 7 | -36 | 4 | -36 | -10.89 | 347.27 | -28.08 | 122.08 | 0.5477 | 1658.7 | 999999 | |
| 0 | 9 | 0 | 5 | -12.49 | 347.09 | -28.26 | 124.38 | 0.5623 | 600.0 | 413.1 | |
| 8 | -36 | 5 | -36 | -11.68 | 347.00 | -28.35 | 123.07 | 0.5570 | 978.1 | 999999 | |
| 15 | -36 | 9 | -36 | -11.23 | 347.01 | -28.34 | 122.38 | 0.5535 | 1520.8 | 999999 | |
| 0 | 4 | 0 | 2 | -13.06 | 346.52 | -28.83 | 124.69 | 0.5735 | 356.0 | 252.8 | |
| 10 | -36 | 6 | -36 | -10.56 | 346.58 | -28.77 | 120.95 | 0.5538 | 1113.4 | 999999 | |
| 0 | 3 | 0 | 2 | -9.76 | 345.12 | -30.23 | 118.44 | 0.5665 | 645.0 | 495.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
