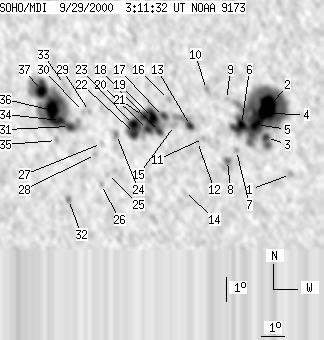

SOHO MDI 2000-09-29 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 151 | 821 | 86 | 463 | -11.36 | 352.04 | -22.43 | 129.45 | 0.4839 | -36.6 | 14.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-29 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -13.46 | 357.07 | -17.40 | 139.51 | 0.4497 | -786.0 | -598.6 | |
| 26 | 337 | 14 | 185 | -10.69 | 356.39 | -18.08 | 133.99 | 0.4257 | -1956.9 | -627.1 | |
| 3 | -2 | 2 | -2 | -11.97 | 356.18 | -18.29 | 135.77 | 0.4421 | -972.1 | 999999 | |
| 12 | -2 | 7 | -2 | -10.99 | 356.07 | -18.40 | 134.00 | 0.4325 | -1401.2 | 999999 | |
| 11 | -2 | 6 | -2 | -11.45 | 355.79 | -18.68 | 134.33 | 0.4407 | -1045.6 | 999999 | |
| 7 | -2 | 4 | -2 | -11.48 | 355.16 | -19.31 | 133.42 | 0.4480 | -1051.2 | 999999 | |
| 0 | 4 | 0 | 2 | -12.56 | 354.87 | -19.60 | 134.72 | 0.4628 | -109.0 | -67.5 | |
| 0 | 21 | 0 | 12 | -12.99 | 354.45 | -20.02 | 134.79 | 0.4720 | -847.0 | -557.5 | |
| 0 | 2 | 0 | 1 | -10.48 | 354.60 | -19.87 | 130.91 | 0.4442 | -457.0 | -399.4 | |
| 0 | 5 | 0 | 3 | -10.11 | 353.78 | -20.69 | 129.12 | 0.4502 | -593.0 | -512.7 | |
| 0 | 3 | 0 | 2 | -12.12 | 353.50 | -20.97 | 132.10 | 0.4735 | 606.0 | 511.3 | |
| 0 | 3 | 0 | 1 | -12.26 | 353.23 | -21.24 | 131.96 | 0.4780 | -473.0 | -393.4 | |
| 4 | 25 | 2 | 14 | -11.61 | 352.99 | -21.48 | 130.59 | 0.4743 | -394.2 | 408.6 | |
| 0 | 4 | 0 | 2 | -14.36 | 352.47 | -22.00 | 134.15 | 0.5077 | -653.0 | -575.2 | |
| 0 | 6 | 0 | 3 | -11.64 | 352.30 | -22.17 | 129.75 | 0.4827 | -418.0 | -249.0 | |
| 0 | 4 | 0 | 2 | -10.59 | 352.13 | -22.34 | 127.79 | 0.4748 | -396.0 | -319.0 | |
| 4 | 143 | 2 | 81 | -11.29 | 351.86 | -22.61 | 128.62 | 0.4846 | 735.2 | 370.9 | |
| 4 | -17 | 2 | -17 | -11.92 | 351.63 | -22.84 | 129.35 | 0.4932 | 657.2 | 999999 | |
| 11 | -17 | 6 | -17 | -11.36 | 351.38 | -23.09 | 128.14 | 0.4909 | 1280.4 | 999999 | |
| 4 | -17 | 2 | -17 | -11.86 | 351.12 | -23.35 | 128.64 | 0.4987 | 946.8 | 999999 | |
| 5 | -17 | 3 | -17 | -11.34 | 350.99 | -23.48 | 127.64 | 0.4954 | 539.3 | 999999 | |
| 7 | -17 | 4 | -17 | -12.06 | 350.53 | -23.94 | 128.25 | 0.5073 | 842.6 | 999999 | |
| 9 | -17 | 5 | -17 | -11.69 | 350.52 | -23.95 | 127.66 | 0.5041 | -898.2 | 999999 | |
| 0 | 6 | 0 | 3 | -12.14 | 349.74 | -24.73 | 127.47 | 0.5174 | -625.0 | -481.9 | |
| 0 | 3 | 0 | 2 | -13.82 | 349.16 | -25.31 | 129.37 | 0.5392 | -334.0 | -271.3 | |
| 0 | 3 | 0 | 2 | -14.25 | 348.84 | -25.63 | 129.65 | 0.5467 | -560.0 | -414.9 | |
| 0 | 3 | 0 | 2 | -12.54 | 349.03 | -25.43 | 127.32 | 0.5293 | 580.0 | 496.6 | |
| 0 | 5 | 0 | 3 | -13.01 | 348.72 | -25.75 | 127.69 | 0.5371 | 747.0 | 657.4 | |
| 0 | 4 | 0 | 2 | -11.25 | 348.64 | -25.83 | 124.88 | 0.5230 | 766.0 | 709.6 | |
| 0 | 2 | 0 | 1 | -11.27 | 348.37 | -26.10 | 124.62 | 0.5264 | 679.0 | 675.8 | |
| 5 | 211 | 3 | 124 | -11.92 | 347.68 | -26.79 | 124.94 | 0.5401 | 1030.5 | 720.7 | |
| 0 | 6 | 0 | 3 | -14.96 | 347.26 | -27.21 | 129.00 | 0.5706 | 700.0 | 489.1 | |
| 0 | 12 | 0 | 7 | -10.21 | 347.63 | -26.84 | 122.17 | 0.5271 | 838.0 | 704.0 | |
| 3 | -31 | 2 | -31 | -11.69 | 347.30 | -27.17 | 124.21 | 0.5428 | 1285.8 | 999999 | |
| 0 | 4 | 0 | 3 | -12.53 | 347.03 | -27.44 | 125.22 | 0.5528 | 529.0 | 461.2 | |
| 21 | -31 | 13 | -31 | -11.30 | 346.99 | -27.48 | 123.30 | 0.5436 | 1463.5 | 999999 | |
| 15 | -31 | 9 | -31 | -10.51 | 346.57 | -27.90 | 121.66 | 0.5426 | 1081.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
