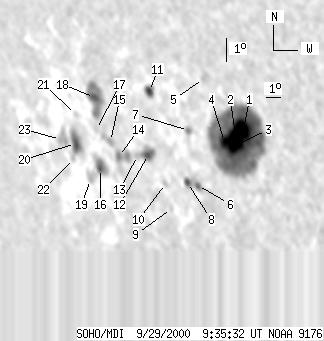

SOHO MDI 2000-09-29 09:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 108 | 754 | 88 | 620 | -8.31 | 320.18 | -50.77 | 105.89 | 0.7968 | -633.4 | -120.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-29 09:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56 | 472 | 43 | 360 | -7.56 | 324.09 | -46.86 | 106.22 | 0.7556 | -1402.5 | -434.6 | |
| -1 | -1 | -1 | -1 | -7.88 | 323.58 | -47.37 | 106.45 | 0.7622 | 999999 | 999999 | |
| -1 | -1 | -1 | -1 | -8.35 | 323.33 | -47.62 | 106.94 | 0.7663 | 999999 | 999999 | |
| 11 | -1 | 8 | -1 | -8.18 | 322.89 | -48.06 | 106.58 | 0.7706 | -639.0 | 999999 | |
| 0 | 8 | 0 | 6 | -5.75 | 321.98 | -48.97 | 103.23 | 0.7734 | 405.0 | 359.8 | |
| 2 | 7 | 1 | 5 | -10.14 | 320.89 | -50.06 | 108.27 | 0.7971 | -624.1 | -471.9 | |
| 0 | 6 | 0 | 5 | -7.94 | 320.76 | -50.20 | 105.56 | 0.7921 | -540.0 | -451.0 | |
| 4 | 13 | 3 | 11 | -10.07 | 320.28 | -50.67 | 107.98 | 0.8030 | -285.5 | -310.0 | |
| 0 | 2 | 0 | 2 | -11.25 | 318.98 | -51.97 | 108.93 | 0.8189 | -201.0 | -182.8 | |
| 0 | 4 | 0 | 3 | -10.25 | 318.84 | -52.11 | 107.70 | 0.8175 | -365.0 | -292.1 | |
| 7 | 14 | 6 | 12 | -6.59 | 318.51 | -52.44 | 103.24 | 0.8112 | -526.1 | -335.1 | |
| 8 | 23 | 7 | 20 | -9.17 | 317.97 | -52.98 | 106.14 | 0.8228 | -605.5 | -279.3 | |
| 0 | 3 | 0 | 3 | -9.28 | 317.21 | -53.74 | 106.05 | 0.8302 | -367.0 | -267.1 | |
| 0 | 35 | 0 | 32 | -9.45 | 315.88 | -55.07 | 105.85 | 0.8428 | 640.0 | 338.5 | |
| 0 | 14 | 0 | 13 | -8.89 | 315.45 | -55.50 | 105.08 | 0.8454 | 681.0 | 621.4 | |
| 3 | 23 | 3 | 22 | -10.08 | 314.44 | -56.51 | 106.15 | 0.8569 | 789.1 | 715.4 | |
| 0 | 4 | 0 | 3 | -8.50 | 314.55 | -56.40 | 104.38 | 0.8525 | 644.0 | 631.7 | |
| 7 | 61 | 7 | 57 | -7.21 | 314.68 | -56.27 | 102.93 | 0.8487 | 940.4 | 649.1 | |
| 0 | 14 | 0 | 14 | -10.61 | 313.56 | -57.39 | 106.50 | 0.8655 | 491.0 | 421.2 | |
| 10 | 29 | 10 | 29 | -9.24 | 312.83 | -58.12 | 104.76 | 0.8688 | 775.1 | 556.7 | |
| 0 | 2 | 0 | 2 | -8.04 | 313.12 | -57.83 | 103.49 | 0.8640 | 375.0 | 434.4 | |
| 0 | 3 | 0 | 3 | -9.87 | 312.50 | -58.45 | 105.38 | 0.8728 | 240.0 | 244.8 | |
| 0 | 17 | 0 | 18 | -9.19 | 311.69 | -59.26 | 104.41 | 0.8780 | -324.0 | 106.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
