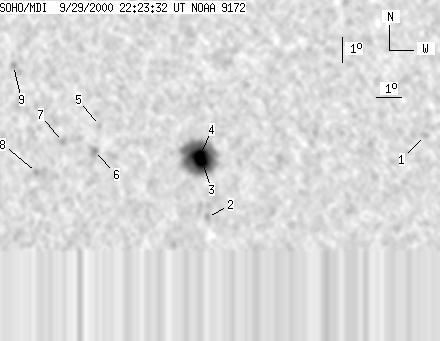

SOHO MDI 2000-09-29 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21 | 190 | 11 | 96 | 13.09 | 358.27 | -5.65 | 40.97 | 0.1472 | 1675.0 | 524.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-29 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 3 | 13.88 | 7.84 | 3.92 | 331.93 | 0.1418 | 871.0 | 643.3 | |
| 0 | 4 | 0 | 2 | 10.67 | 359.16 | -4.76 | 49.79 | 0.1072 | 647.0 | 531.2 | |
| 21 | 153 | 11 | 76 | 12.81 | 358.92 | -5.00 | 38.63 | 0.1366 | 1912.7 | 721.5 | |
| -3 | -3 | -3 | -3 | 13.12 | 358.83 | -5.08 | 37.69 | 0.1418 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | 14.20 | 354.73 | -9.19 | 49.69 | 0.2040 | 523.0 | 395.7 | |
| 0 | 8 | 0 | 4 | 13.22 | 354.56 | -9.35 | 54.13 | 0.1961 | -953.0 | -699.1 | |
| 0 | 5 | 0 | 3 | 13.54 | 353.25 | -10.67 | 56.19 | 0.2176 | -905.0 | -623.8 | |
| 0 | 5 | 0 | 3 | 12.31 | 352.25 | -11.67 | 63.28 | 0.2222 | -797.0 | -657.1 | |
| 0 | 5 | 0 | 3 | 16.48 | 351.07 | -12.85 | 51.09 | 0.2752 | -734.0 | -557.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
