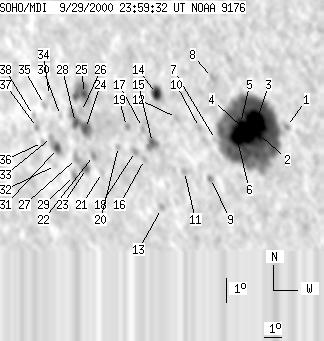

SOHO MDI 2000-09-29 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 120 | 821 | 81 | 570 | -8.10 | 321.08 | -41.95 | 108.99 | 0.7002 | -897.2 | -224.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-29 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -7.59 | 325.84 | -37.20 | 110.48 | 0.6420 | -576.0 | -471.8 | |
| 9 | 550 | 6 | 364 | -8.02 | 324.40 | -38.64 | 110.34 | 0.6618 | -1508.1 | -544.0 | |
| 28 | -2 | 18 | -2 | -7.50 | 324.35 | -38.68 | 109.58 | 0.6600 | -1887.8 | 999999 | |
| 22 | -2 | 15 | -2 | -7.98 | 323.84 | -39.19 | 110.01 | 0.6683 | -1477.9 | 999999 | |
| 8 | -2 | 5 | -2 | -7.65 | 323.53 | -39.51 | 109.38 | 0.6708 | -1085.8 | 999999 | |
| 21 | -2 | 14 | -2 | -8.19 | 323.26 | -39.78 | 110.01 | 0.6763 | -1043.8 | 999999 | |
| 0 | 2 | 0 | 2 | -8.39 | 322.15 | -40.89 | 109.76 | 0.6905 | -45.0 | -220.0 | |
| 0 | 7 | 0 | 5 | -5.91 | 322.26 | -40.77 | 106.35 | 0.6793 | 709.0 | 580.5 | |
| 0 | 6 | 0 | 4 | -10.01 | 321.65 | -41.38 | 111.71 | 0.7031 | -482.0 | -314.0 | |
| 0 | 4 | 0 | 3 | -7.98 | 321.36 | -41.68 | 108.83 | 0.6981 | -451.0 | -322.6 | |
| 0 | 5 | 0 | 3 | -9.83 | 320.29 | -42.74 | 110.83 | 0.7179 | -561.0 | -387.9 | |
| 0 | 5 | 0 | 4 | -7.67 | 320.17 | -42.86 | 107.90 | 0.7108 | -169.0 | -249.8 | |
| 0 | 4 | 0 | 3 | -11.46 | 318.74 | -44.30 | 112.22 | 0.7417 | 93.0 | 176.2 | |
| 10 | 20 | 7 | 14 | -6.79 | 319.20 | -43.84 | 106.32 | 0.7190 | -738.2 | -417.2 | |
| 3 | 19 | 2 | 14 | -8.80 | 318.71 | -44.33 | 108.78 | 0.7317 | -585.7 | -347.3 | |
| 0 | 4 | 0 | 3 | -9.53 | 318.15 | -44.89 | 109.49 | 0.7407 | -337.0 | -238.4 | |
| 0 | 4 | 0 | 3 | -8.23 | 318.24 | -44.80 | 107.85 | 0.7350 | -182.0 | -340.4 | |
| 0 | 7 | 0 | 5 | -9.25 | 317.69 | -45.35 | 108.94 | 0.7447 | -460.0 | -324.1 | |
| 0 | 5 | 0 | 4 | -8.27 | 317.33 | -45.70 | 107.54 | 0.7452 | 696.0 | 488.9 | |
| 0 | 3 | 0 | 2 | -9.13 | 316.74 | -46.29 | 108.41 | 0.7546 | -251.0 | -165.9 | |
| 0 | 4 | 0 | 3 | -10.28 | 315.60 | -47.43 | 109.40 | 0.7706 | 637.0 | 573.9 | |
| 0 | 7 | 0 | 5 | -9.63 | 315.20 | -47.84 | 108.44 | 0.7727 | 711.0 | 630.0 | |
| 1 | 12 | 1 | 9 | -10.20 | 314.67 | -48.37 | 108.95 | 0.7800 | 846.3 | 697.1 | |
| 7 | 44 | 5 | 34 | -8.56 | 314.92 | -48.12 | 107.01 | 0.7723 | 1056.0 | 801.6 | |
| 3 | 43 | 2 | 33 | -7.15 | 315.08 | -47.96 | 105.29 | 0.7663 | 1019.1 | 658.8 | |
| 0 | 2 | 0 | 1 | -7.89 | 314.79 | -48.25 | 106.13 | 0.7716 | 260.0 | 278.2 | |
| 0 | 12 | 0 | 9 | -9.84 | 314.14 | -48.89 | 108.31 | 0.7843 | 769.0 | 735.7 | |
| 4 | -24 | 3 | -24 | -8.37 | 314.35 | -48.68 | 106.58 | 0.7776 | 988.9 | 999999 | |
| 0 | 9 | 0 | 7 | -10.55 | 313.87 | -49.17 | 109.08 | 0.7893 | 642.0 | 557.8 | |
| 0 | 2 | 0 | 2 | -8.17 | 313.48 | -49.56 | 106.03 | 0.7861 | 433.0 | 348.7 | |
| 4 | 13 | 3 | 11 | -9.54 | 313.04 | -49.99 | 107.55 | 0.7945 | 751.4 | 579.7 | |
| 0 | 2 | 0 | 2 | -10.25 | 312.77 | -50.27 | 108.31 | 0.7994 | 339.0 | 313.0 | |
| 0 | 5 | 0 | 4 | -9.12 | 312.75 | -50.28 | 106.95 | 0.7962 | 487.0 | 438.8 | |
| 0 | 3 | 0 | 2 | -7.42 | 312.93 | -50.11 | 104.93 | 0.7897 | 572.0 | 509.7 | |
| 0 | 4 | 0 | 3 | -7.82 | 312.56 | -50.48 | 105.30 | 0.7946 | 501.0 | 455.7 | |
| 0 | 3 | 0 | 2 | -9.38 | 312.14 | -50.90 | 107.05 | 0.8031 | 239.0 | 220.2 | |
| 0 | 4 | 0 | 4 | -8.80 | 311.94 | -51.09 | 106.28 | 0.8034 | 317.0 | 239.5 | |
| 0 | 3 | 0 | 3 | -8.33 | 311.78 | -51.26 | 105.67 | 0.8038 | 373.0 | 328.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
