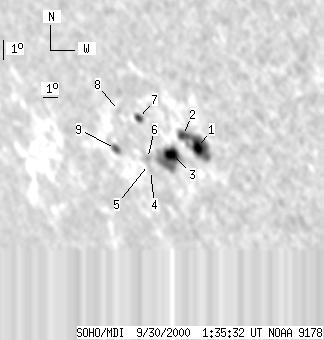

SOHO MDI 2000-09-30 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 180 | 29 | 156 | -21.59 | 314.20 | -47.96 | 122.43 | 0.8200 | -537.1 | -200.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-30 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12 | 76 | 10 | 64 | -21.43 | 315.83 | -46.32 | 123.06 | 0.8055 | -961.1 | -634.3 | |
| 4 | -1 | 3 | -1 | -20.97 | 315.11 | -47.05 | 122.18 | 0.8097 | -443.7 | 999999 | |
| 12 | 67 | 11 | 59 | -21.90 | 314.02 | -48.14 | 122.66 | 0.8230 | -742.2 | -83.5 | |
| 0 | 4 | 0 | 4 | -22.77 | 312.25 | -49.90 | 122.76 | 0.8409 | 234.0 | 258.8 | |
| 0 | 1 | 0 | 1 | -22.50 | 312.25 | -49.90 | 122.48 | 0.8399 | 402.0 | 378.3 | |
| 0 | 7 | 0 | 6 | -22.23 | 312.32 | -49.84 | 122.22 | 0.8383 | 487.0 | 458.4 | |
| 3 | 11 | 3 | 9 | -20.47 | 312.55 | -49.60 | 120.40 | 0.8293 | 610.8 | 521.1 | |
| 0 | 3 | 0 | 3 | -20.24 | 311.35 | -50.80 | 119.60 | 0.8384 | 480.0 | 397.2 | |
| 2 | 11 | 2 | 10 | -21.99 | 310.30 | -51.86 | 121.05 | 0.8533 | 473.4 | 422.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
