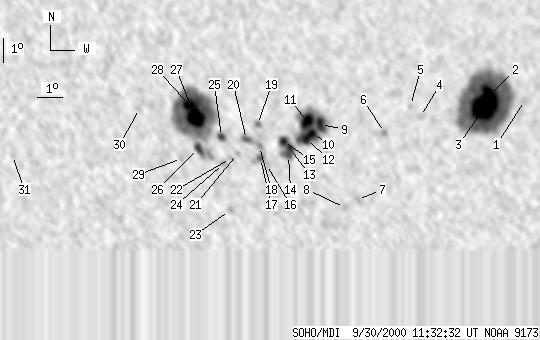

SOHO MDI 2000-09-30 11:32:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 174 | 1036 | 91 | 542 | -11.21 | 352.01 | -4.68 | 166.70 | 0.3297 | 62.7 | 76.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-30 11:32:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 8 | 0 | 4 | -10.44 | 359.44 | 2.75 | 189.09 | 0.2999 | -478.0 | -361.4 | |
| 18 | 417 | 9 | 216 | -10.19 | 358.05 | 1.36 | 184.61 | 0.2930 | -2118.6 | -666.5 | |
| 48 | -2 | 25 | -2 | -10.76 | 357.82 | 1.13 | 183.69 | 0.3022 | -1961.4 | 999999 | |
| 0 | 3 | 0 | 2 | -11.09 | 355.32 | -1.37 | 175.62 | 0.3080 | -529.0 | -558.2 | |
| 0 | 4 | 0 | 2 | -10.64 | 354.93 | -1.76 | 174.22 | 0.3011 | -664.0 | -549.8 | |
| 0 | 4 | 0 | 2 | -11.75 | 353.89 | -2.80 | 171.41 | 0.3216 | 608.0 | 488.2 | |
| 0 | 5 | 0 | 3 | -14.53 | 352.77 | -3.92 | 169.64 | 0.3697 | -720.0 | -706.8 | |
| 0 | 4 | 0 | 2 | -14.87 | 352.24 | -4.45 | 168.47 | 0.3767 | -637.0 | -595.4 | |
| 11 | 132 | 6 | 69 | -11.45 | 351.34 | -5.34 | 163.65 | 0.3257 | 1350.6 | 540.7 | |
| 6 | -9 | 3 | -9 | -11.82 | 351.02 | -5.67 | 163.05 | 0.3331 | -595.2 | 999999 | |
| 17 | -9 | 9 | -9 | -11.33 | 350.83 | -5.86 | 162.06 | 0.3263 | 1473.1 | 999999 | |
| 5 | -9 | 3 | -9 | -12.07 | 350.77 | -5.91 | 162.59 | 0.3382 | 97.4 | 999999 | |
| 5 | 44 | 2 | 23 | -12.45 | 350.12 | -6.56 | 161.17 | 0.3475 | 1097.0 | 794.6 | |
| 3 | -13 | 2 | -13 | -12.74 | 350.04 | -6.65 | 161.21 | 0.3524 | 1032.3 | 999999 | |
| 6 | -13 | 3 | -13 | -12.16 | 349.85 | -6.84 | 160.17 | 0.3445 | 1025.2 | 999999 | |
| 0 | 6 | 0 | 3 | -13.12 | 349.14 | -7.55 | 159.29 | 0.3633 | 565.0 | 446.2 | |
| 3 | 14 | 1 | 7 | -12.88 | 348.91 | -7.78 | 158.45 | 0.3609 | -670.9 | -532.7 | |
| 0 | 6 | 0 | 3 | -12.38 | 348.88 | -7.81 | 157.86 | 0.3536 | 866.0 | 600.7 | |
| 0 | 5 | 0 | 3 | -11.48 | 348.83 | -7.86 | 156.70 | 0.3403 | 1084.0 | 839.9 | |
| 0 | 9 | 0 | 5 | -12.10 | 348.37 | -8.32 | 156.23 | 0.3526 | 926.0 | 712.2 | |
| 0 | 4 | 0 | 2 | -12.69 | 347.99 | -8.70 | 155.95 | 0.3639 | 430.0 | 408.6 | |
| 0 | 5 | 0 | 3 | -12.90 | 347.70 | -8.99 | 155.49 | 0.3689 | -521.0 | -420.4 | |
| 0 | 4 | 0 | 2 | -15.06 | 347.57 | -9.12 | 157.50 | 0.4017 | 622.0 | 659.3 | |
| 0 | 5 | 0 | 3 | -13.11 | 347.40 | -9.28 | 155.05 | 0.3740 | 527.0 | 365.1 | |
| 4 | 10 | 2 | 5 | -12.00 | 347.36 | -9.32 | 153.60 | 0.3580 | 832.4 | 645.2 | |
| 5 | 335 | 3 | 177 | -12.51 | 346.42 | -10.27 | 152.00 | 0.3725 | 1090.1 | 701.5 | |
| 30 | -26 | 16 | -26 | -11.24 | 346.34 | -10.34 | 150.11 | 0.3550 | 1847.2 | 999999 | |
| 13 | -26 | 7 | -26 | -10.72 | 346.12 | -10.57 | 148.80 | 0.3494 | 1788.8 | 999999 | |
| 0 | 4 | 0 | 2 | -12.94 | 345.71 | -10.98 | 150.95 | 0.3840 | 526.0 | 493.6 | |
| 0 | 4 | 0 | 2 | -10.93 | 344.09 | -12.60 | 144.51 | 0.3704 | 434.0 | 500.8 | |
| 0 | 4 | 0 | 2 | -13.03 | 338.73 | -17.96 | 137.88 | 0.4498 | -635.0 | -640.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
