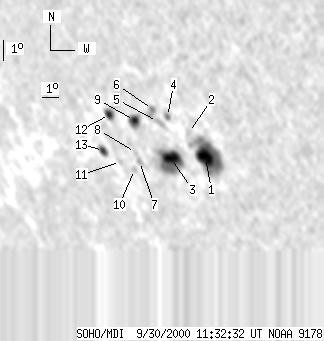

SOHO MDI 2000-09-30 11:32:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59 | 283 | 47 | 220 | -21.47 | 314.26 | -42.43 | 125.27 | 0.7711 | -439.8 | -196.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-30 11:32:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22 | 116 | 17 | 88 | -21.70 | 315.99 | -40.70 | 126.57 | 0.7567 | -1127.1 | -624.1 | |
| 0 | 5 | 0 | 4 | -20.66 | 315.40 | -41.29 | 125.01 | 0.7562 | -434.0 | -384.2 | |
| 19 | 77 | 15 | 60 | -21.91 | 314.00 | -42.69 | 125.59 | 0.7759 | -835.3 | -180.4 | |
| 0 | 6 | 0 | 5 | -20.04 | 314.43 | -42.26 | 123.72 | 0.7618 | -315.0 | -207.5 | |
| 0 | 8 | 0 | 6 | -20.32 | 313.77 | -42.91 | 123.65 | 0.7694 | -192.0 | -89.5 | |
| 0 | 12 | 0 | 9 | -19.81 | 313.66 | -43.02 | 123.00 | 0.7677 | 88.0 | 232.3 | |
| 0 | 5 | 0 | 4 | -22.21 | 312.02 | -44.67 | 124.80 | 0.7949 | 631.0 | 559.3 | |
| 0 | 3 | 0 | 3 | -21.82 | 311.94 | -44.75 | 124.32 | 0.7936 | 536.0 | 512.8 | |
| 6 | 20 | 5 | 16 | -20.39 | 312.43 | -44.26 | 122.97 | 0.7821 | 898.9 | 576.3 | |
| 0 | 5 | 0 | 4 | -22.60 | 311.56 | -45.13 | 124.98 | 0.8008 | 612.0 | 463.3 | |
| 0 | 3 | 0 | 2 | -22.31 | 310.84 | -45.85 | 124.27 | 0.8055 | 615.0 | 562.7 | |
| 6 | 12 | 5 | 10 | -20.25 | 311.00 | -45.68 | 122.06 | 0.7943 | 670.4 | 484.9 | |
| 6 | 11 | 5 | 9 | -21.91 | 309.97 | -46.72 | 123.37 | 0.8110 | 432.3 | 294.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
