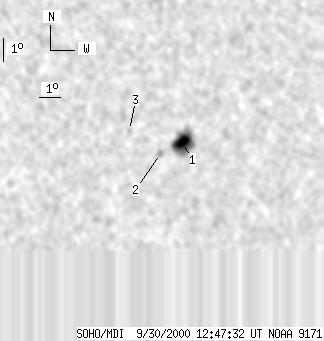

SOHO MDI 2000-09-30 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 74 | 11 | 46 | -13.71 | 27.66 | 31.66 | 236.94 | 0.6107 | -1180.6 | -510.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-30 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 65 | 11 | 41 | -13.71 | 27.84 | 31.84 | 237.08 | 0.6127 | -1202.3 | -507.1 | |
| 0 | 5 | 0 | 3 | -14.10 | 26.86 | 30.86 | 235.72 | 0.6044 | -756.0 | -618.8 | |
| 0 | 4 | 0 | 2 | -13.05 | 25.28 | 29.28 | 235.82 | 0.5781 | -412.0 | -412.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
