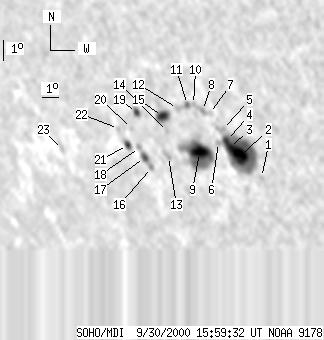

SOHO MDI 2000-09-30 15:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77 | 380 | 57 | 286 | -21.58 | 314.00 | -40.24 | 126.77 | 0.7516 | -434.7 | -132.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-09-30 15:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -22.76 | 316.99 | -37.26 | 130.09 | 0.7320 | -502.0 | -507.1 | |
| 23 | 142 | 17 | 103 | -21.85 | 316.16 | -38.08 | 128.47 | 0.7336 | -1181.9 | -665.9 | |
| 5 | -2 | 4 | -2 | -21.54 | 315.67 | -38.57 | 127.77 | 0.7361 | -628.1 | 999999 | |
| 6 | -2 | 4 | -2 | -21.24 | 315.60 | -38.64 | 127.38 | 0.7348 | -647.6 | 999999 | |
| 0 | 9 | 0 | 6 | -20.76 | 315.53 | -38.71 | 126.79 | 0.7325 | -507.0 | -424.2 | |
| 0 | 4 | 0 | 3 | -21.36 | 315.13 | -39.11 | 127.21 | 0.7400 | -198.0 | -124.7 | |
| 0 | 3 | 0 | 2 | -20.11 | 315.04 | -39.21 | 125.69 | 0.7332 | -503.0 | -392.2 | |
| 0 | 5 | 0 | 4 | -20.00 | 314.69 | -39.55 | 125.34 | 0.7359 | -507.0 | -357.7 | |
| 20 | 112 | 15 | 84 | -21.89 | 313.92 | -40.32 | 127.03 | 0.7544 | -789.4 | 34.2 | |
| 0 | 5 | 0 | 4 | -19.78 | 314.27 | -39.97 | 124.81 | 0.7385 | -379.0 | -278.9 | |
| 0 | 5 | 0 | 4 | -19.81 | 313.94 | -40.30 | 124.63 | 0.7419 | -114.0 | 131.7 | |
| 0 | 7 | 0 | 5 | -20.03 | 313.32 | -40.92 | 124.50 | 0.7491 | 392.0 | 459.6 | |
| 0 | 9 | 0 | 7 | -22.22 | 312.06 | -42.18 | 126.25 | 0.7730 | 601.0 | 557.8 | |
| 0 | 4 | 0 | 3 | -21.10 | 312.41 | -41.83 | 125.18 | 0.7636 | 245.0 | 207.0 | |
| 11 | 22 | 8 | 17 | -20.45 | 312.35 | -41.89 | 124.41 | 0.7606 | 851.0 | 600.0 | |
| 0 | 4 | 0 | 4 | -22.81 | 310.86 | -43.38 | 126.19 | 0.7868 | 642.0 | 515.0 | |
| 4 | 10 | 3 | 8 | -22.39 | 310.62 | -43.62 | 125.58 | 0.7867 | 522.8 | 476.1 | |
| 0 | 5 | 0 | 4 | -21.96 | 310.49 | -43.75 | 125.03 | 0.7855 | 529.0 | 484.9 | |
| 4 | 9 | 3 | 7 | -20.40 | 310.90 | -43.34 | 123.50 | 0.7738 | 435.0 | 396.4 | |
| 0 | 3 | 0 | 3 | -21.14 | 310.34 | -43.90 | 124.03 | 0.7827 | 626.0 | 545.9 | |
| 4 | 8 | 3 | 7 | -21.93 | 309.80 | -44.44 | 124.61 | 0.7914 | 332.9 | 292.6 | |
| 0 | 3 | 0 | 2 | -21.21 | 309.55 | -44.69 | 123.67 | 0.7900 | 481.0 | 433.1 | |
| 0 | 7 | 0 | 6 | -22.49 | 305.57 | -48.67 | 123.03 | 0.8298 | 564.0 | 495.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
