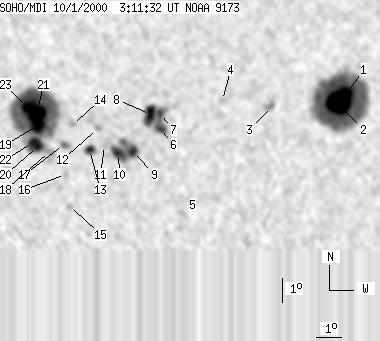

SOHO MDI 2000-10-01 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 177 | 961 | 93 | 505 | -11.50 | 352.14 | 4.06 | 191.94 | 0.3334 | 75.1 | 106.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-01 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 392 | 8 | 207 | -10.54 | 358.58 | 10.50 | 211.35 | 0.3458 | -2077.8 | -657.3 | |
| 44 | -1 | 23 | -1 | -10.94 | 358.23 | 10.15 | 209.90 | 0.3486 | -2060.9 | 999999 | |
| 0 | 11 | 0 | 6 | -11.01 | 355.59 | 7.51 | 202.94 | 0.3304 | -1071.0 | -879.5 | |
| 0 | 6 | 0 | 3 | -10.74 | 353.63 | 5.55 | 197.63 | 0.3149 | -807.0 | -604.6 | |
| 0 | 8 | 0 | 4 | -15.44 | 352.16 | 4.08 | 190.32 | 0.3841 | -748.0 | -616.2 | |
| 7 | 79 | 4 | 41 | -11.86 | 351.18 | 3.10 | 189.45 | 0.3236 | -382.5 | 708.9 | |
| 3 | -6 | 2 | -6 | -11.25 | 351.18 | 3.09 | 189.76 | 0.3135 | 1297.8 | 999999 | |
| 15 | -6 | 8 | -6 | -11.29 | 350.78 | 2.70 | 188.51 | 0.3131 | 1350.7 | 999999 | |
| 8 | 73 | 4 | 38 | -12.80 | 350.12 | 2.03 | 185.92 | 0.3367 | 1175.0 | 434.0 | |
| 12 | -9 | 6 | -9 | -12.88 | 349.52 | 1.43 | 184.17 | 0.3372 | -772.2 | 999999 | |
| 0 | 9 | 0 | 5 | -12.55 | 348.96 | 0.87 | 182.59 | 0.3312 | 669.0 | 457.7 | |
| 0 | 5 | 0 | 3 | -11.85 | 348.68 | 0.59 | 181.83 | 0.3194 | 563.0 | 445.5 | |
| 6 | 14 | 3 | 8 | -12.71 | 348.36 | 0.28 | 180.82 | 0.3336 | -782.6 | -377.7 | |
| 0 | 4 | 0 | 2 | -11.69 | 347.69 | -0.40 | 178.76 | 0.3166 | 595.0 | 490.0 | |
| 0 | 5 | 0 | 3 | -15.08 | 347.56 | -0.52 | 178.63 | 0.3725 | 653.0 | 540.9 | |
| 0 | 7 | 0 | 4 | -13.75 | 347.40 | -0.68 | 178.10 | 0.3508 | 821.0 | 669.6 | |
| 0 | 8 | 0 | 4 | -12.51 | 347.33 | -0.76 | 177.75 | 0.3304 | 794.0 | 508.7 | |
| 0 | 14 | 0 | 7 | -12.80 | 346.77 | -1.32 | 176.15 | 0.3357 | 747.0 | 484.4 | |
| 42 | 326 | 22 | 170 | -11.73 | 346.30 | -1.79 | 174.47 | 0.3187 | 1893.3 | 837.9 | |
| 16 | -19 | 8 | -19 | -12.59 | 346.29 | -1.79 | 174.71 | 0.3329 | 1233.9 | 999999 | |
| -19 | -19 | -19 | -19 | -11.28 | 346.26 | -1.83 | 174.21 | 0.3113 | 999999 | 999999 | |
| -20 | -19 | -20 | -19 | -12.43 | 346.09 | -1.99 | 174.08 | 0.3305 | 999999 | 999999 | |
| 9 | -19 | 5 | -19 | -10.96 | 345.87 | -2.22 | 172.84 | 0.3066 | 1919.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
