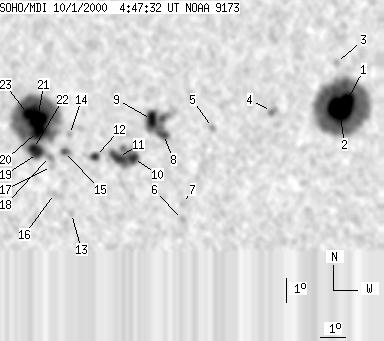

SOHO MDI 2000-10-01 04:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 175 | 945 | 94 | 498 | -11.49 | 352.23 | 5.03 | 194.62 | 0.3367 | 103.4 | 99.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-01 04:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 384 | 8 | 203 | -10.56 | 358.59 | 11.38 | 213.42 | 0.3538 | -2053.0 | -666.3 | |
| 43 | -1 | 23 | -1 | -10.96 | 358.28 | 11.08 | 212.09 | 0.3566 | -2054.5 | 999999 | |
| 0 | 5 | 0 | 3 | -9.05 | 358.10 | 10.89 | 214.76 | 0.3287 | -734.0 | -578.6 | |
| 0 | 9 | 0 | 5 | -10.98 | 355.55 | 8.34 | 205.25 | 0.3355 | -1072.0 | -893.8 | |
| 0 | 6 | 0 | 3 | -11.60 | 353.21 | 6.00 | 198.12 | 0.3308 | 640.0 | 533.2 | |
| 0 | 5 | 0 | 3 | -15.40 | 352.09 | 4.88 | 192.33 | 0.3860 | -791.0 | -695.6 | |
| 0 | 9 | 0 | 5 | -14.73 | 352.08 | 4.87 | 192.69 | 0.3754 | -287.0 | -328.1 | |
| 7 | 92 | 4 | 48 | -11.87 | 351.26 | 4.05 | 192.28 | 0.3266 | -367.2 | 684.1 | |
| 15 | -8 | 8 | -8 | -11.25 | 350.77 | 3.57 | 191.23 | 0.3150 | 1451.4 | 999999 | |
| 8 | 69 | 4 | 37 | -12.85 | 350.08 | 2.87 | 188.32 | 0.3391 | 1232.5 | 406.4 | |
| 13 | -10 | 7 | -10 | -12.80 | 349.48 | 2.27 | 186.61 | 0.3371 | -602.1 | 999999 | |
| 5 | 11 | 2 | 6 | -12.76 | 348.56 | 1.35 | 183.96 | 0.3350 | -675.3 | -436.4 | |
| 0 | 5 | 0 | 3 | -15.12 | 347.61 | 0.40 | 181.04 | 0.3731 | 698.0 | 592.3 | |
| 0 | 5 | 0 | 3 | -11.85 | 347.52 | 0.32 | 180.98 | 0.3192 | 399.0 | 292.3 | |
| 3 | 12 | 2 | 6 | -12.55 | 347.32 | 0.12 | 180.35 | 0.3308 | 750.3 | 375.4 | |
| 0 | 3 | 0 | 2 | -14.29 | 346.92 | -0.28 | 179.24 | 0.3594 | 676.0 | 614.5 | |
| 0 | 3 | 0 | 1 | -13.17 | 346.81 | -0.40 | 178.85 | 0.3410 | 584.0 | 541.5 | |
| 0 | 6 | 0 | 3 | -12.76 | 346.73 | -0.48 | 178.59 | 0.3343 | 867.0 | 701.4 | |
| 7 | 321 | 4 | 167 | -12.63 | 346.25 | -0.96 | 177.18 | 0.3325 | 1143.7 | 834.1 | |
| 44 | -19 | 23 | -19 | -11.73 | 346.25 | -0.95 | 177.04 | 0.3175 | 1897.1 | 999999 | |
| -20 | -19 | -20 | -19 | -11.24 | 346.25 | -0.95 | 176.97 | 0.3094 | 999999 | 999999 | |
| 7 | -19 | 4 | -19 | -12.43 | 346.09 | -1.12 | 176.67 | 0.3293 | 1194.9 | 999999 | |
| 9 | -19 | 5 | -19 | -10.99 | 345.86 | -1.35 | 175.65 | 0.3057 | 1882.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
