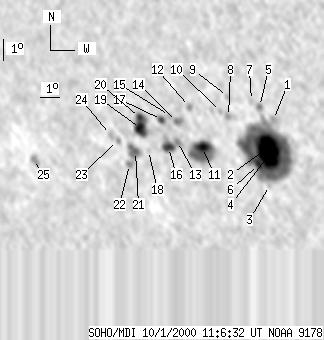

SOHO MDI 2000-10-01 11:06:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 105 | 586 | 69 | 379 | -21.72 | 314.91 | -28.83 | 136.01 | 0.6460 | -623.2 | -216.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-01 11:06:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 4 | -20.40 | 317.41 | -26.32 | 136.87 | 0.6102 | -368.0 | -388.9 | |
| 25 | 344 | 16 | 219 | -21.55 | 317.05 | -26.68 | 137.84 | 0.6246 | -1974.9 | -560.8 | |
| 0 | 1 | 0 | 1 | -23.35 | 316.62 | -27.11 | 139.42 | 0.6455 | -420.0 | -382.7 | |
| 31 | -2 | 20 | -2 | -22.05 | 316.81 | -26.93 | 138.16 | 0.6315 | -1256.7 | 999999 | |
| 0 | 7 | 0 | 4 | -19.86 | 316.86 | -26.87 | 135.65 | 0.6104 | 414.0 | 274.7 | |
| 6 | -2 | 4 | -2 | -22.44 | 316.30 | -27.43 | 138.08 | 0.6397 | -468.8 | 999999 | |
| 0 | 3 | 0 | 2 | -19.62 | 316.53 | -27.20 | 135.01 | 0.6113 | 212.0 | 194.6 | |
| 0 | 5 | 0 | 3 | -20.39 | 315.31 | -28.43 | 134.71 | 0.6301 | -659.0 | -474.4 | |
| 0 | 3 | 0 | 2 | -19.51 | 315.43 | -28.30 | 133.77 | 0.6211 | 423.0 | 292.8 | |
| 0 | 4 | 0 | 2 | -20.19 | 314.97 | -28.76 | 134.14 | 0.6316 | -475.0 | -306.6 | |
| 9 | 69 | 6 | 45 | -21.84 | 313.75 | -29.98 | 134.93 | 0.6576 | -1056.2 | -286.7 | |
| 0 | 6 | 0 | 4 | -20.06 | 313.52 | -30.21 | 132.61 | 0.6446 | -434.0 | -297.5 | |
| 0 | 9 | 0 | 6 | -21.65 | 312.58 | -31.16 | 133.65 | 0.6669 | 702.0 | 619.9 | |
| 0 | 10 | 0 | 6 | -20.76 | 312.74 | -31.00 | 132.75 | 0.6581 | 640.0 | 714.4 | |
| 0 | 3 | 0 | 2 | -20.52 | 312.45 | -31.28 | 132.20 | 0.6588 | 837.0 | 718.7 | |
| 8 | 17 | 5 | 11 | -21.94 | 312.06 | -31.67 | 133.54 | 0.6742 | 900.3 | 813.8 | |
| 4 | 10 | 3 | 7 | -20.72 | 312.01 | -31.72 | 132.06 | 0.6647 | 781.0 | 632.6 | |
| 0 | 2 | 0 | 1 | -22.15 | 311.02 | -32.72 | 132.88 | 0.6855 | 633.0 | 523.8 | |
| 14 | 42 | 10 | 28 | -21.19 | 310.86 | -32.87 | 131.64 | 0.6795 | 862.8 | 579.4 | |
| 5 | -19 | 3 | -19 | -20.71 | 310.93 | -32.80 | 131.12 | 0.6750 | 610.3 | 999999 | |
| 3 | 21 | 2 | 14 | -22.24 | 310.34 | -33.39 | 132.42 | 0.6925 | 957.6 | 647.9 | |
| 0 | 5 | 0 | 4 | -22.84 | 309.87 | -33.87 | 132.73 | 0.7015 | 635.0 | 415.2 | |
| 0 | 4 | 0 | 3 | -21.81 | 309.55 | -34.19 | 131.28 | 0.6966 | 459.0 | 344.3 | |
| 0 | 6 | 0 | 4 | -21.56 | 309.26 | -34.48 | 130.77 | 0.6975 | 285.0 | 357.6 | |
| 0 | 9 | 0 | 7 | -23.00 | 304.77 | -38.97 | 129.14 | 0.7487 | 769.0 | 581.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
