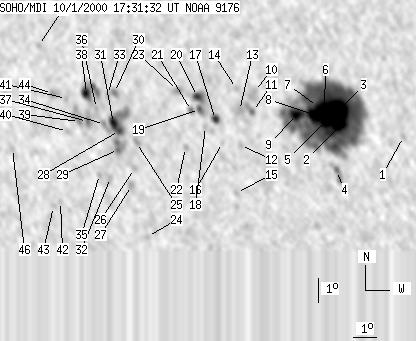

SOHO MDI 2000-10-01 17:31:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141 | 1085 | 75 | 590 | -8.09 | 321.52 | -18.69 | 128.76 | 0.4055 | -1195.0 | -362.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-01 17:31:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 2 | -8.60 | 327.36 | -12.85 | 139.79 | 0.3421 | 880.0 | 700.3 | |
| 16 | 691 | 9 | 368 | -8.23 | 324.78 | -15.43 | 133.81 | 0.3666 | -1673.2 | -733.5 | |
| 37 | -2 | 20 | -2 | -7.67 | 324.72 | -15.49 | 132.57 | 0.3610 | -2405.3 | 999999 | |
| 0 | 20 | 0 | 11 | -10.05 | 324.57 | -15.64 | 136.86 | 0.3898 | -713.0 | -308.2 | |
| 12 | -2 | 6 | -2 | -8.05 | 324.25 | -15.96 | 132.49 | 0.3707 | -1744.5 | 999999 | |
| 9 | -2 | 5 | -2 | -7.53 | 324.19 | -16.02 | 131.32 | 0.3658 | -1965.4 | 999999 | |
| 4 | -2 | 2 | -2 | -7.50 | 323.91 | -16.30 | 130.75 | 0.3689 | -1426.6 | 999999 | |
| 19 | -2 | 10 | -2 | -7.86 | 323.81 | -16.40 | 131.32 | 0.3740 | -1368.7 | 999999 | |
| 11 | -2 | 6 | -2 | -7.85 | 323.03 | -17.18 | 129.97 | 0.3834 | -1317.2 | 999999 | |
| 0 | 16 | 0 | 8 | -6.99 | 321.34 | -18.87 | 125.57 | 0.3964 | -965.0 | -833.2 | |
| 0 | 11 | 0 | 6 | -7.79 | 321.22 | -18.99 | 127.03 | 0.4056 | -1138.0 | -983.7 | |
| 0 | 6 | 0 | 3 | -9.19 | 320.64 | -19.56 | 128.85 | 0.4263 | -641.0 | -534.9 | |
| 0 | 12 | 0 | 6 | -7.78 | 320.68 | -19.53 | 126.21 | 0.4123 | -853.0 | -773.6 | |
| 0 | 5 | 0 | 3 | -6.90 | 320.59 | -19.61 | 124.33 | 0.4053 | -555.0 | -332.0 | |
| 0 | 6 | 0 | 3 | -11.10 | 320.35 | -19.86 | 131.82 | 0.4491 | -479.0 | -407.6 | |
| 0 | 3 | 0 | 2 | -9.09 | 319.89 | -20.31 | 127.63 | 0.4346 | -462.0 | -324.4 | |
| 5 | 11 | 3 | 6 | -8.18 | 319.65 | -20.55 | 125.58 | 0.4291 | -859.4 | -668.3 | |
| 0 | 12 | 0 | 7 | -8.48 | 319.22 | -20.99 | 125.57 | 0.4374 | -589.0 | -494.4 | |
| 2 | 41 | 1 | 23 | -7.80 | 319.00 | -21.21 | 124.01 | 0.4342 | -763.3 | -790.4 | |
| 4 | -19 | 2 | -19 | -7.29 | 318.94 | -21.26 | 122.93 | 0.4304 | -968.0 | 999999 | |
| 0 | 6 | 0 | 3 | -7.86 | 318.66 | -21.55 | 123.69 | 0.4391 | -493.0 | -276.5 | |
| 0 | 5 | 0 | 3 | -9.36 | 318.31 | -21.89 | 126.04 | 0.4569 | 375.0 | 356.8 | |
| 0 | 5 | 0 | 3 | -7.08 | 318.11 | -22.10 | 121.52 | 0.4398 | -612.0 | -692.0 | |
| 0 | 4 | 0 | 2 | -13.09 | 316.36 | -23.84 | 129.80 | 0.5146 | 753.0 | 559.7 | |
| 0 | 7 | 0 | 4 | -9.26 | 316.22 | -23.98 | 123.37 | 0.4824 | 1019.0 | 847.4 | |
| 0 | 5 | 0 | 3 | -10.32 | 316.05 | -24.15 | 125.00 | 0.4935 | 754.0 | 681.9 | |
| 0 | 7 | 0 | 4 | -11.02 | 315.86 | -24.34 | 125.95 | 0.5019 | 831.0 | 682.1 | |
| 4 | 57 | 2 | 33 | -8.81 | 315.52 | -24.69 | 121.82 | 0.4877 | 931.5 | 909.3 | |
| 0 | 18 | 0 | 10 | -9.58 | 315.42 | -24.79 | 123.05 | 0.4953 | 1190.0 | 1018.7 | |
| 0 | 7 | 0 | 4 | -7.29 | 315.40 | -24.80 | 118.97 | 0.4776 | 928.0 | 792.9 | |
| 10 | -28 | 5 | -28 | -8.54 | 315.28 | -24.93 | 121.10 | 0.4887 | 1453.2 | 999999 | |
| 0 | 7 | 0 | 4 | -10.74 | 314.97 | -25.23 | 124.52 | 0.5104 | 726.0 | 592.0 | |
| 0 | 4 | 0 | 2 | -7.39 | 315.10 | -25.11 | 118.83 | 0.4824 | 709.0 | 565.2 | |
| 0 | 4 | 0 | 3 | -8.60 | 314.88 | -25.32 | 120.80 | 0.4944 | 908.0 | 773.4 | |
| 0 | 4 | 0 | 2 | -10.64 | 314.50 | -25.71 | 123.86 | 0.5155 | 589.0 | 573.8 | |
| 0 | 3 | 0 | 2 | -7.97 | 314.58 | -25.63 | 119.38 | 0.4936 | 622.0 | 662.0 | |
| 0 | 13 | 0 | 8 | -8.52 | 314.15 | -26.06 | 119.92 | 0.5033 | 998.0 | 866.2 | |
| 8 | 35 | 4 | 20 | -7.39 | 314.18 | -26.03 | 117.97 | 0.4947 | 1167.9 | 903.7 | |
| 0 | 24 | 0 | 14 | -8.54 | 313.80 | -26.41 | 119.61 | 0.5080 | 952.0 | 758.1 | |
| 0 | 5 | 0 | 3 | -8.97 | 313.23 | -26.98 | 119.82 | 0.5185 | 476.0 | 466.3 | |
| 0 | 3 | 0 | 2 | -7.64 | 313.29 | -26.92 | 117.58 | 0.5083 | 590.0 | 515.1 | |
| 0 | 3 | 0 | 2 | -11.85 | 312.65 | -27.56 | 123.91 | 0.5478 | 534.0 | 542.6 | |
| 0 | 4 | 0 | 2 | -12.07 | 312.31 | -27.90 | 123.92 | 0.5536 | 524.0 | 406.8 | |
| 0 | 9 | 0 | 5 | -7.47 | 312.68 | -27.53 | 116.76 | 0.5153 | 970.0 | 747.5 | |
| 0 | 3 | 0 | 2 | -5.59 | 312.18 | -28.03 | 112.99 | 0.5101 | 789.0 | 686.7 | |
| 0 | 4 | 0 | 2 | -9.80 | 310.69 | -29.51 | 118.94 | 0.5569 | 737.0 | 683.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
