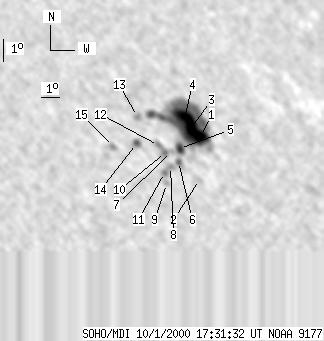

SOHO MDI 2000-10-01 17:31:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61 | 352 | 42 | 244 | 27.99 | 20.98 | 40.78 | 303.99 | 0.6978 | 837.1 | 204.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-01 17:31:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 282 | 13 | 196 | 27.85 | 21.84 | 41.63 | 303.42 | 0.7060 | 956.3 | 288.2 | |
| 0 | 5 | 0 | 4 | 26.10 | 20.99 | 40.79 | 301.41 | 0.6897 | 402.0 | 382.5 | |
| 33 | -1 | 23 | -1 | 28.22 | 21.42 | 41.21 | 304.09 | 0.7034 | 1188.2 | 999999 | |
| -3 | -1 | -3 | -1 | 28.70 | 21.29 | 41.09 | 304.78 | 0.7042 | 999999 | 999999 | |
| 6 | -1 | 4 | -1 | 27.45 | 20.43 | 40.22 | 303.50 | 0.6896 | -392.1 | 999999 | |
| 0 | 9 | 0 | 6 | 26.92 | 20.14 | 39.93 | 302.92 | 0.6841 | -90.0 | -96.5 | |
| 0 | 4 | 0 | 3 | 27.35 | 19.93 | 39.72 | 303.61 | 0.6839 | 331.0 | 273.8 | |
| 0 | 3 | 0 | 2 | 26.74 | 19.61 | 39.41 | 302.92 | 0.6777 | -344.0 | -336.6 | |
| 0 | 5 | 0 | 3 | 26.07 | 19.11 | 38.91 | 302.22 | 0.6692 | -579.0 | -561.4 | |
| 0 | 10 | 0 | 7 | 27.34 | 19.58 | 39.37 | 303.76 | 0.6801 | 391.0 | 380.3 | |
| 0 | 6 | 0 | 4 | 26.52 | 19.18 | 38.98 | 302.82 | 0.6721 | -768.0 | -634.7 | |
| 0 | 5 | 0 | 4 | 27.65 | 19.32 | 39.11 | 304.31 | 0.6788 | -434.0 | -424.6 | |
| 0 | 7 | 0 | 5 | 28.92 | 18.68 | 38.47 | 306.37 | 0.6786 | -343.0 | -31.5 | |
| 3 | 9 | 2 | 6 | 27.81 | 18.15 | 37.94 | 305.14 | 0.6673 | -495.6 | -352.6 | |
| 0 | 7 | 0 | 4 | 27.77 | 16.86 | 36.65 | 305.78 | 0.6533 | -400.0 | -547.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
