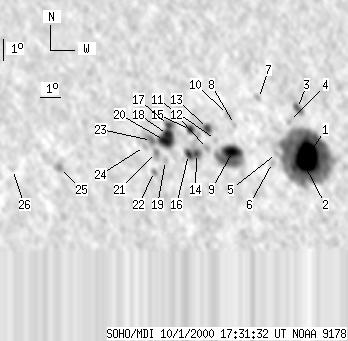

SOHO MDI 2000-10-01 17:31:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124 | 625 | 78 | 394 | -21.69 | 314.88 | -25.33 | 139.60 | 0.6140 | -523.1 | -155.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-01 17:31:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59 | 353 | 37 | 217 | -21.59 | 317.30 | -22.91 | 142.08 | 0.5912 | -1699.9 | -571.9 | |
| -1 | -1 | -1 | -1 | -22.13 | 316.98 | -23.23 | 142.30 | 0.5997 | 999999 | 999999 | |
| 4 | 13 | 2 | 8 | -19.68 | 317.07 | -23.14 | 139.59 | 0.5731 | 731.2 | 340.2 | |
| 0 | 3 | 0 | 2 | -20.26 | 316.61 | -23.60 | 139.75 | 0.5834 | -464.0 | -412.7 | |
| 0 | 3 | 0 | 2 | -21.71 | 315.77 | -24.44 | 140.44 | 0.6058 | -337.0 | -256.2 | |
| 0 | 4 | 0 | 3 | -22.12 | 315.51 | -24.70 | 140.61 | 0.6123 | -386.0 | -334.7 | |
| 0 | 5 | 0 | 3 | -19.33 | 315.36 | -24.85 | 137.18 | 0.5857 | 600.0 | 376.7 | |
| 0 | 3 | 0 | 2 | -20.53 | 314.05 | -26.16 | 137.18 | 0.6098 | 688.0 | 490.5 | |
| 16 | 74 | 10 | 47 | -21.73 | 313.72 | -26.48 | 138.24 | 0.6243 | -1092.5 | -209.1 | |
| 0 | 5 | 0 | 3 | -20.11 | 313.80 | -26.41 | 136.42 | 0.6081 | -476.0 | -330.7 | |
| 0 | 4 | 0 | 3 | -21.24 | 313.02 | -27.18 | 136.95 | 0.6261 | 481.0 | 425.3 | |
| 0 | 5 | 0 | 3 | -21.66 | 312.56 | -27.65 | 136.97 | 0.6343 | 839.0 | 704.8 | |
| 6 | 12 | 4 | 7 | -20.77 | 312.74 | -27.47 | 136.12 | 0.6244 | 969.2 | 792.3 | |
| 3 | 36 | 2 | 23 | -21.91 | 311.98 | -28.22 | 136.69 | 0.6419 | 1195.7 | 774.8 | |
| 5 | 12 | 3 | 8 | -20.87 | 311.92 | -28.29 | 135.40 | 0.6330 | 815.5 | 559.0 | |
| 5 | -14 | 3 | -14 | -21.98 | 311.59 | -28.62 | 136.38 | 0.6461 | 867.1 | 999999 | |
| 3 | 46 | 2 | 30 | -20.75 | 310.90 | -29.31 | 134.28 | 0.6417 | 844.3 | 698.1 | |
| 23 | -17 | 15 | -17 | -21.15 | 310.76 | -29.44 | 134.63 | 0.6465 | 1062.8 | 999999 | |
| 0 | 4 | 0 | 3 | -22.32 | 310.40 | -29.81 | 135.64 | 0.6600 | 662.0 | 537.7 | |
| -18 | -17 | -18 | -17 | -21.43 | 310.56 | -29.65 | 134.76 | 0.6508 | 999999 | 999999 | |
| 0 | 9 | 0 | 6 | -21.99 | 310.04 | -30.16 | 134.93 | 0.6604 | 684.0 | 490.1 | |
| 0 | 4 | 0 | 3 | -22.85 | 309.74 | -30.47 | 135.63 | 0.6706 | 286.0 | 330.2 | |
| 0 | 17 | 0 | 11 | -21.47 | 309.92 | -30.29 | 134.21 | 0.6571 | 868.0 | 748.1 | |
| 0 | 3 | 0 | 2 | -21.76 | 309.51 | -30.69 | 134.18 | 0.6634 | 344.0 | 290.1 | |
| 0 | 8 | 0 | 6 | -23.00 | 304.91 | -35.30 | 131.77 | 0.7155 | 855.0 | 625.2 | |
| 0 | 2 | 0 | 2 | -23.27 | 302.34 | -37.87 | 130.19 | 0.7406 | 546.0 | 497.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
