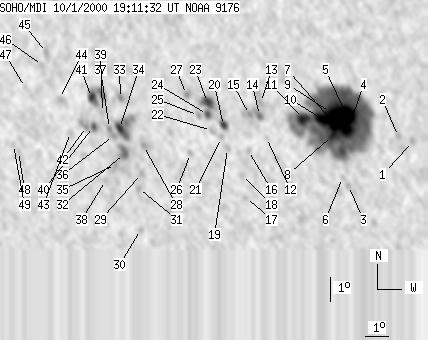

SOHO MDI 2000-10-01 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 152 | 1033 | 82 | 558 | -8.07 | 321.51 | -17.78 | 130.23 | 0.3945 | -1225.0 | -372.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-01 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -8.62 | 327.40 | -11.89 | 142.01 | 0.3324 | 862.0 | 681.3 | |
| 0 | 6 | 0 | 3 | -8.43 | 326.85 | -12.44 | 140.37 | 0.3357 | 478.0 | 305.7 | |
| 0 | 5 | 0 | 3 | -10.47 | 324.74 | -14.55 | 139.63 | 0.3832 | 70.0 | 18.2 | |
| 14 | 657 | 8 | 348 | -8.24 | 324.79 | -14.50 | 135.64 | 0.3559 | -1686.8 | -749.5 | |
| 55 | -4 | 29 | -4 | -7.60 | 324.78 | -14.52 | 134.30 | 0.3487 | -2255.3 | 999999 | |
| 0 | 3 | 0 | 2 | -10.15 | 324.51 | -14.78 | 138.63 | 0.3817 | -760.0 | -648.1 | |
| -5 | -4 | -5 | -4 | -8.02 | 324.31 | -14.98 | 134.25 | 0.3588 | 999999 | 999999 | |
| 6 | -4 | 3 | -4 | -8.46 | 324.17 | -15.12 | 134.86 | 0.3655 | -1102.2 | 999999 | |
| 11 | -4 | 6 | -4 | -7.54 | 324.13 | -15.16 | 132.92 | 0.3556 | -1901.9 | 999999 | |
| 17 | -4 | 9 | -4 | -7.83 | 323.79 | -15.50 | 132.88 | 0.3629 | -1420.1 | 999999 | |
| 11 | -4 | 6 | -4 | -7.82 | 323.02 | -16.27 | 131.45 | 0.3720 | -1298.5 | 999999 | |
| 0 | 3 | 0 | 2 | -8.64 | 321.46 | -17.83 | 130.45 | 0.3996 | -657.0 | -600.2 | |
| 0 | 14 | 0 | 8 | -7.24 | 321.28 | -18.02 | 127.37 | 0.3878 | -975.0 | -877.9 | |
| 0 | 12 | 0 | 6 | -7.76 | 321.21 | -18.08 | 128.34 | 0.3937 | -1163.0 | -994.7 | |
| 0 | 12 | 0 | 7 | -7.74 | 320.80 | -18.49 | 127.65 | 0.3987 | -955.0 | -756.7 | |
| 0 | 5 | 0 | 3 | -9.19 | 320.68 | -18.61 | 130.28 | 0.4146 | -692.0 | -523.2 | |
| 0 | 4 | 0 | 2 | -11.11 | 320.44 | -18.85 | 133.31 | 0.4375 | -585.0 | -466.0 | |
| 0 | 7 | 0 | 4 | -10.22 | 320.33 | -18.96 | 131.60 | 0.4294 | -425.0 | -525.4 | |
| 0 | 5 | 0 | 3 | -9.14 | 319.81 | -19.48 | 128.89 | 0.4248 | -343.0 | -281.7 | |
| 6 | 11 | 3 | 6 | -8.22 | 319.70 | -19.60 | 126.98 | 0.4173 | -844.5 | -607.1 | |
| 0 | 4 | 0 | 2 | -8.71 | 319.59 | -19.71 | 127.75 | 0.4234 | -535.0 | -467.1 | |
| 0 | 6 | 0 | 3 | -8.44 | 319.18 | -20.11 | 126.69 | 0.4259 | -329.0 | -443.5 | |
| 9 | 36 | 5 | 19 | -7.32 | 319.07 | -20.22 | 124.36 | 0.4170 | -1153.5 | -835.3 | |
| 4 | -23 | 2 | -23 | -7.81 | 319.05 | -20.24 | 125.28 | 0.4217 | -786.6 | 999999 | |
| 0 | 4 | 0 | 2 | -7.86 | 318.67 | -20.62 | 124.88 | 0.4271 | -434.0 | -402.5 | |
| 0 | 4 | 0 | 2 | -9.41 | 318.24 | -21.05 | 127.20 | 0.4468 | 631.0 | 467.4 | |
| 0 | 10 | 0 | 6 | -7.04 | 318.21 | -21.09 | 122.67 | 0.4259 | -741.0 | -641.6 | |
| 0 | 7 | 0 | 4 | -9.18 | 316.26 | -23.03 | 124.31 | 0.4696 | 1053.0 | 976.1 | |
| 0 | 6 | 0 | 3 | -10.32 | 316.09 | -23.20 | 126.09 | 0.4817 | 756.0 | 664.5 | |
| 0 | 6 | 0 | 3 | -12.62 | 315.84 | -23.45 | 129.54 | 0.5056 | 645.0 | 607.2 | |
| 0 | 4 | 0 | 2 | -10.94 | 315.91 | -23.38 | 126.92 | 0.4894 | 882.0 | 773.3 | |
| 3 | 20 | 2 | 11 | -9.54 | 315.41 | -23.88 | 123.98 | 0.4833 | 1140.1 | 968.5 | |
| 0 | 6 | 0 | 3 | -7.33 | 315.39 | -23.90 | 119.96 | 0.4658 | 1021.0 | 776.8 | |
| 6 | 45 | 3 | 25 | -8.54 | 315.27 | -24.02 | 122.05 | 0.4769 | 1480.7 | 1019.9 | |
| 0 | 8 | 0 | 4 | -10.01 | 314.99 | -24.30 | 124.30 | 0.4926 | 973.0 | 752.9 | |
| 0 | 8 | 0 | 5 | -8.83 | 314.99 | -24.30 | 122.27 | 0.4829 | 965.0 | 717.6 | |
| 0 | 8 | 0 | 4 | -8.56 | 314.84 | -24.45 | 121.62 | 0.4827 | 837.0 | 744.0 | |
| 0 | 4 | 0 | 3 | -10.68 | 314.50 | -24.79 | 124.89 | 0.5044 | 636.0 | 515.2 | |
| 0 | 4 | 0 | 2 | -7.93 | 314.58 | -24.71 | 120.22 | 0.4812 | 719.0 | 643.7 | |
| 3 | 10 | 2 | 6 | -8.51 | 314.15 | -25.14 | 120.82 | 0.4913 | 980.2 | 776.5 | |
| 7 | 36 | 4 | 20 | -7.35 | 314.14 | -25.15 | 118.72 | 0.4827 | 1201.2 | 918.3 | |
| 0 | 10 | 0 | 6 | -8.53 | 313.84 | -25.45 | 120.54 | 0.4954 | 1104.0 | 732.7 | |
| 0 | 7 | 0 | 4 | -8.81 | 313.12 | -26.17 | 120.31 | 0.5069 | 527.0 | 499.2 | |
| 0 | 7 | 0 | 4 | -7.46 | 312.73 | -26.56 | 117.59 | 0.5022 | 876.0 | 777.1 | |
| 0 | 8 | 0 | 5 | -5.65 | 312.27 | -27.02 | 113.91 | 0.4966 | 758.0 | 615.2 | |
| 0 | 6 | 0 | 4 | -6.18 | 312.07 | -27.23 | 114.71 | 0.5027 | 803.0 | 619.8 | |
| 0 | 2 | 0 | 1 | -7.11 | 311.26 | -28.03 | 115.68 | 0.5196 | 476.0 | 402.8 | |
| 0 | 4 | 0 | 3 | -9.71 | 310.73 | -28.56 | 119.60 | 0.5441 | 810.0 | 670.0 | |
| 0 | 4 | 0 | 2 | -9.44 | 310.54 | -28.76 | 118.99 | 0.5447 | 480.0 | 506.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
