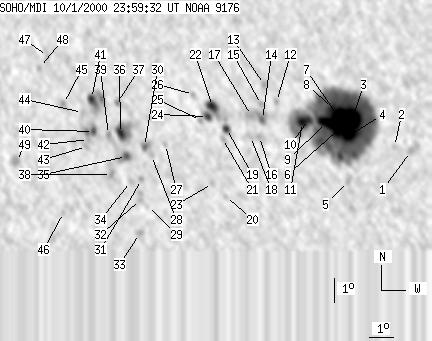

SOHO MDI 2000-10-01 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 160 | 1089 | 84 | 578 | -8.09 | 321.67 | -14.99 | 135.30 | 0.3616 | -1276.7 | -353.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-01 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 15 | 0 | 8 | -8.93 | 327.20 | -9.45 | 148.70 | 0.3137 | 879.0 | 732.8 | |
| 0 | 4 | 0 | 2 | -8.74 | 326.57 | -10.09 | 146.69 | 0.3167 | 295.0 | 223.9 | |
| 69 | 684 | 36 | 358 | -7.66 | 324.92 | -11.74 | 140.49 | 0.3183 | -2196.1 | -710.1 | |
| 20 | -3 | 11 | -3 | -8.30 | 324.82 | -11.84 | 141.52 | 0.3276 | -1619.5 | 999999 | |
| 0 | 9 | 0 | 5 | -10.21 | 324.63 | -12.02 | 144.48 | 0.3545 | -691.0 | -516.4 | |
| -3 | -3 | -3 | -3 | -8.03 | 324.42 | -12.23 | 140.07 | 0.3283 | 999999 | 999999 | |
| -3 | -3 | -3 | -3 | -7.55 | 324.32 | -12.34 | 138.86 | 0.3234 | 999999 | 999999 | |
| 4 | -3 | 2 | -3 | -7.28 | 324.12 | -12.53 | 137.85 | 0.3221 | -1526.0 | 999999 | |
| 17 | -3 | 9 | -3 | -7.84 | 323.87 | -12.79 | 138.43 | 0.3319 | -1455.2 | 999999 | |
| 4 | -3 | 2 | -3 | -7.74 | 323.14 | -13.51 | 136.65 | 0.3387 | -1429.5 | 999999 | |
| 9 | -3 | 5 | -3 | -7.87 | 322.90 | -13.76 | 136.38 | 0.3430 | -1323.0 | 999999 | |
| 0 | 4 | 0 | 2 | -7.06 | 321.87 | -14.78 | 132.62 | 0.3456 | -728.0 | -548.3 | |
| 0 | 6 | 0 | 3 | -6.39 | 321.41 | -15.25 | 130.28 | 0.3440 | -812.0 | -586.6 | |
| 0 | 11 | 0 | 6 | -7.80 | 321.28 | -15.38 | 133.03 | 0.3609 | -1212.0 | -1048.1 | |
| 0 | 4 | 0 | 2 | -7.20 | 321.26 | -15.39 | 131.74 | 0.3545 | -908.0 | -664.6 | |
| 0 | 3 | 0 | 2 | -8.49 | 321.13 | -15.52 | 134.12 | 0.3704 | -556.0 | -629.6 | |
| 0 | 21 | 0 | 11 | -7.65 | 320.84 | -15.82 | 131.91 | 0.3646 | -833.0 | -763.5 | |
| 0 | 6 | 0 | 3 | -8.50 | 320.76 | -15.89 | 133.47 | 0.3748 | -703.0 | -653.6 | |
| 4 | 72 | 2 | 39 | -8.21 | 319.79 | -16.86 | 131.19 | 0.3832 | -864.7 | -726.7 | |
| 0 | 4 | 0 | 2 | -10.97 | 319.61 | -17.05 | 135.94 | 0.4157 | -457.0 | -369.5 | |
| 0 | 6 | 0 | 3 | -8.62 | 319.61 | -17.05 | 131.68 | 0.3898 | -578.0 | -496.8 | |
| 8 | -19 | 4 | -19 | -7.35 | 319.25 | -17.40 | 128.55 | 0.3809 | -1254.2 | 999999 | |
| 0 | 6 | 0 | 3 | -10.46 | 319.10 | -17.56 | 134.22 | 0.4157 | -617.0 | -494.1 | |
| 4 | -19 | 2 | -19 | -7.75 | 319.03 | -17.62 | 129.02 | 0.3879 | -820.8 | 999999 | |
| 0 | 4 | 0 | 2 | -7.93 | 318.73 | -17.92 | 128.90 | 0.3933 | -425.0 | -330.8 | |
| 0 | 4 | 0 | 2 | -6.89 | 318.49 | -18.17 | 126.41 | 0.3862 | -711.0 | -582.0 | |
| 0 | 4 | 0 | 2 | -8.95 | 317.23 | -19.43 | 128.59 | 0.4221 | -346.0 | -202.3 | |
| 0 | 6 | 0 | 3 | -9.42 | 316.61 | -20.04 | 128.58 | 0.4342 | 789.0 | 790.8 | |
| 0 | 2 | 0 | 1 | -11.50 | 316.30 | -20.35 | 131.76 | 0.4588 | 664.0 | 615.3 | |
| 0 | 11 | 0 | 6 | -9.07 | 316.34 | -20.31 | 127.55 | 0.4342 | 1128.0 | 916.8 | |
| 0 | 4 | 0 | 2 | -10.41 | 316.13 | -20.52 | 129.67 | 0.4498 | 683.0 | 627.5 | |
| 0 | 11 | 0 | 6 | -11.23 | 316.03 | -20.63 | 130.92 | 0.4592 | 700.0 | 584.3 | |
| 0 | 6 | 0 | 3 | -12.63 | 315.87 | -20.78 | 132.98 | 0.4752 | 740.0 | 670.5 | |
| 0 | 5 | 0 | 3 | -10.51 | 315.66 | -21.00 | 129.20 | 0.4565 | 591.0 | 671.8 | |
| 3 | 20 | 2 | 11 | -9.50 | 315.56 | -21.10 | 127.29 | 0.4481 | 1216.2 | 847.8 | |
| 9 | 39 | 5 | 22 | -8.58 | 315.36 | -21.29 | 125.35 | 0.4421 | 1397.1 | 970.2 | |
| 0 | 4 | 0 | 2 | -7.34 | 315.30 | -21.35 | 122.91 | 0.4319 | 821.0 | 630.1 | |
| 0 | 6 | 0 | 3 | -10.26 | 314.87 | -21.79 | 127.73 | 0.4637 | 1078.0 | 857.5 | |
| 0 | 5 | 0 | 3 | -8.65 | 314.85 | -21.80 | 124.82 | 0.4492 | 1016.0 | 851.8 | |
| 3 | 18 | 1 | 10 | -8.55 | 314.22 | -22.44 | 123.88 | 0.4565 | 1089.1 | 883.5 | |
| 6 | 39 | 3 | 21 | -7.23 | 314.21 | -22.44 | 121.38 | 0.4455 | 1090.1 | 1001.6 | |
| 0 | 3 | 0 | 2 | -8.89 | 313.98 | -22.67 | 124.20 | 0.4624 | 736.0 | 659.6 | |
| 0 | 5 | 0 | 3 | -9.17 | 313.88 | -22.78 | 124.59 | 0.4662 | 727.0 | 602.9 | |
| 0 | 7 | 0 | 4 | -7.81 | 313.79 | -22.86 | 122.00 | 0.4557 | 686.0 | 702.0 | |
| 0 | 4 | 0 | 2 | -7.49 | 313.00 | -23.65 | 120.51 | 0.4636 | 1000.0 | 788.9 | |
| 0 | 3 | 0 | 2 | -11.91 | 312.66 | -23.99 | 127.78 | 0.5054 | 569.0 | 574.2 | |
| 0 | 9 | 0 | 5 | -5.64 | 312.41 | -24.24 | 116.36 | 0.4580 | 777.0 | 640.1 | |
| 0 | 3 | 0 | 2 | -6.10 | 312.04 | -24.61 | 116.89 | 0.4662 | 822.0 | 661.6 | |
| 0 | 12 | 0 | 7 | -9.93 | 310.79 | -25.87 | 122.50 | 0.5116 | 804.0 | 729.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
