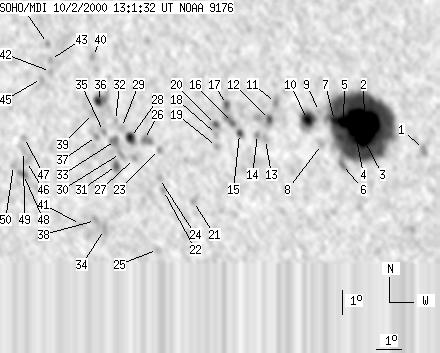

SOHO MDI 2000-10-02 13:01:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131 | 942 | 67 | 489 | -8.32 | 321.57 | -7.92 | 153.69 | 0.2982 | -1433.2 | -391.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-02 13:01:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 11 | 0 | 6 | -8.91 | 327.23 | -2.26 | 171.72 | 0.2715 | 865.0 | 671.0 | |
| 78 | 543 | 40 | 279 | -7.84 | 324.92 | -4.57 | 162.42 | 0.2625 | -2209.0 | -819.5 | |
| -2 | -2 | -2 | -2 | -8.48 | 324.87 | -4.62 | 162.98 | 0.2731 | 999999 | 999999 | |
| 11 | -2 | 6 | -2 | -8.12 | 324.52 | -4.97 | 161.35 | 0.2692 | -1783.4 | 999999 | |
| 10 | -2 | 5 | -2 | -7.85 | 324.09 | -5.40 | 159.50 | 0.2672 | -1471.5 | 999999 | |
| 0 | 10 | 0 | 5 | -9.54 | 324.03 | -5.46 | 161.33 | 0.2944 | -813.0 | -495.0 | |
| 5 | -2 | 2 | -2 | -7.77 | 323.74 | -5.75 | 158.17 | 0.2681 | -1146.1 | 999999 | |
| 0 | 6 | 0 | 3 | -8.74 | 323.21 | -6.28 | 157.74 | 0.2866 | -46.0 | -143.4 | |
| 0 | 3 | 0 | 2 | -7.42 | 323.15 | -6.34 | 155.64 | 0.2665 | -544.0 | -524.9 | |
| 11 | 40 | 6 | 20 | -7.75 | 322.68 | -6.81 | 154.56 | 0.2749 | -1425.0 | -882.4 | |
| 0 | 8 | 0 | 4 | -7.08 | 321.42 | -8.07 | 149.41 | 0.2749 | -944.0 | -773.9 | |
| 2 | 33 | 1 | 17 | -7.77 | 321.17 | -8.32 | 149.88 | 0.2870 | -1121.2 | -860.7 | |
| 0 | 8 | 0 | 4 | -8.58 | 321.00 | -8.49 | 150.74 | 0.3002 | -891.0 | -743.3 | |
| 0 | 5 | 0 | 2 | -8.38 | 320.68 | -8.81 | 149.51 | 0.2999 | -771.0 | -698.7 | |
| 2 | 8 | 1 | 4 | -8.35 | 319.97 | -9.52 | 147.47 | 0.3057 | -711.2 | -549.3 | |
| 0 | 14 | 0 | 8 | -7.92 | 319.70 | -9.79 | 145.94 | 0.3021 | -896.0 | -809.1 | |
| 0 | 9 | 0 | 5 | -7.20 | 319.48 | -10.01 | 143.94 | 0.2944 | -1008.0 | -793.6 | |
| 0 | 5 | 0 | 2 | -8.41 | 319.05 | -10.44 | 145.13 | 0.3150 | -742.0 | -614.3 | |
| 0 | 6 | 0 | 3 | -8.90 | 319.03 | -10.46 | 145.96 | 0.3217 | -639.0 | -410.5 | |
| 0 | 9 | 0 | 4 | -8.01 | 319.02 | -10.47 | 144.31 | 0.3098 | -816.0 | -629.5 | |
| 0 | 6 | 0 | 3 | -11.15 | 318.03 | -11.46 | 147.23 | 0.3617 | 675.0 | 576.3 | |
| 0 | 5 | 0 | 3 | -10.73 | 316.83 | -12.66 | 143.91 | 0.3670 | 758.0 | 552.3 | |
| 0 | 5 | 0 | 2 | -9.07 | 316.74 | -12.75 | 140.82 | 0.3466 | 1041.0 | 809.4 | |
| 0 | 5 | 0 | 3 | -10.25 | 316.69 | -12.80 | 142.80 | 0.3621 | 813.0 | 699.1 | |
| 0 | 8 | 0 | 4 | -13.16 | 316.47 | -13.02 | 146.81 | 0.4024 | 649.0 | 453.4 | |
| 0 | 15 | 0 | 8 | -8.69 | 316.15 | -13.34 | 138.81 | 0.3480 | 1198.0 | 908.4 | |
| 0 | 5 | 0 | 3 | -9.46 | 315.71 | -13.78 | 139.35 | 0.3622 | 832.0 | 751.7 | |
| 7 | 17 | 4 | 9 | -8.62 | 315.58 | -13.91 | 137.50 | 0.3533 | 1383.2 | 998.0 | |
| 0 | 7 | 0 | 4 | -8.23 | 315.23 | -14.26 | 136.02 | 0.3525 | 879.0 | 711.1 | |
| 0 | 5 | 0 | 3 | -9.28 | 315.15 | -14.34 | 137.87 | 0.3660 | 1016.0 | 802.0 | |
| 0 | 12 | 0 | 6 | -9.77 | 314.97 | -14.52 | 138.40 | 0.3739 | 1121.0 | 892.8 | |
| 0 | 3 | 0 | 2 | -7.95 | 315.00 | -14.49 | 135.00 | 0.3520 | 768.0 | 791.6 | |
| 0 | 12 | 0 | 6 | -8.76 | 314.97 | -14.52 | 136.53 | 0.3618 | 1326.0 | 1074.2 | |
| 0 | 9 | 0 | 5 | -12.40 | 314.34 | -15.15 | 141.57 | 0.4125 | 882.0 | 693.5 | |
| 0 | 4 | 0 | 2 | -8.41 | 314.49 | -14.99 | 134.92 | 0.3631 | 951.0 | 774.5 | |
| 5 | 22 | 2 | 11 | -7.21 | 314.34 | -15.15 | 132.17 | 0.3515 | 1319.4 | 972.7 | |
| 0 | 4 | 0 | 2 | -8.62 | 314.20 | -15.29 | 134.78 | 0.3689 | 969.0 | 711.5 | |
| 0 | 5 | 0 | 3 | -12.04 | 313.99 | -15.50 | 140.37 | 0.4116 | 804.0 | 677.1 | |
| 0 | 4 | 0 | 2 | -7.70 | 314.07 | -15.41 | 132.70 | 0.3600 | 961.0 | 820.2 | |
| 0 | 7 | 0 | 4 | -5.42 | 314.15 | -15.34 | 127.81 | 0.3349 | 945.0 | 760.9 | |
| 0 | 4 | 0 | 2 | -12.23 | 313.36 | -16.13 | 139.54 | 0.4203 | 528.0 | 419.3 | |
| 0 | 5 | 0 | 3 | -6.08 | 312.42 | -17.07 | 126.32 | 0.3639 | 808.0 | 667.6 | |
| 0 | 4 | 0 | 2 | -5.60 | 312.43 | -17.06 | 125.27 | 0.3591 | 970.0 | 786.5 | |
| 0 | 5 | 0 | 3 | -4.97 | 312.33 | -17.16 | 123.64 | 0.3546 | 693.0 | 648.3 | |
| 0 | 6 | 0 | 3 | -6.37 | 312.04 | -17.45 | 126.35 | 0.3716 | 664.0 | 626.6 | |
| 0 | 10 | 0 | 5 | -9.73 | 311.27 | -18.22 | 131.81 | 0.4153 | 817.0 | 737.0 | |
| 0 | 5 | 0 | 3 | -8.76 | 311.24 | -18.25 | 129.96 | 0.4056 | 924.0 | 693.0 | |
| 0 | 10 | 0 | 6 | -10.26 | 311.11 | -18.38 | 132.52 | 0.4227 | 995.0 | 789.1 | |
| 0 | 10 | 0 | 6 | -9.33 | 311.17 | -18.32 | 130.91 | 0.4123 | 776.0 | 671.9 | |
| 0 | 5 | 0 | 3 | -9.91 | 310.72 | -18.77 | 131.29 | 0.4237 | 642.0 | 620.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
