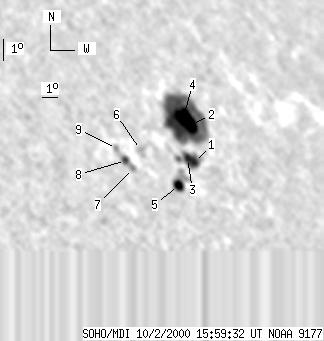

SOHO MDI 2000-10-02 15:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55 | 355 | 47 | 301 | 28.18 | 20.32 | 52.46 | 300.25 | 0.8110 | 371.4 | 274.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-02 15:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8 | 42 | 7 | 35 | 26.94 | 20.33 | 52.47 | 298.74 | 0.8085 | 40.4 | 394.3 | |
| 13 | 249 | 11 | 214 | 28.49 | 21.19 | 53.33 | 300.40 | 0.8195 | 744.3 | 376.4 | |
| 6 | -1 | 5 | -1 | 27.15 | 19.96 | 52.10 | 299.07 | 0.8057 | 503.7 | 999999 | |
| 18 | -2 | 15 | -2 | 28.86 | 20.87 | 53.01 | 300.92 | 0.8176 | 834.3 | 999999 | |
| 7 | 33 | 6 | 27 | 26.11 | 18.68 | 50.82 | 298.13 | 0.7915 | -550.6 | -3.2 | |
| 0 | 12 | 0 | 10 | 27.77 | 17.09 | 49.24 | 300.61 | 0.7809 | -550.0 | -338.1 | |
| 0 | 6 | 0 | 5 | 27.05 | 16.13 | 48.27 | 299.99 | 0.7697 | -648.0 | -490.9 | |
| 3 | 8 | 3 | 6 | 27.41 | 15.88 | 48.02 | 300.51 | 0.7683 | -721.8 | -642.9 | |
| 0 | 5 | 0 | 4 | 27.94 | 15.59 | 47.74 | 301.27 | 0.7673 | -573.0 | -496.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
