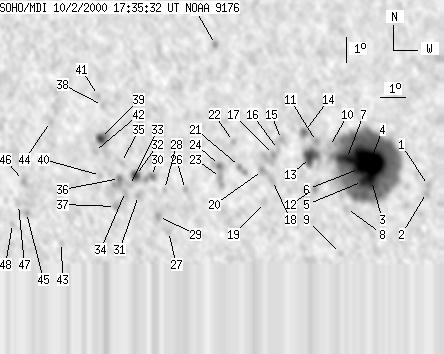

SOHO MDI 2000-10-02 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 145 | 956 | 74 | 494 | -8.13 | 322.39 | -4.59 | 163.85 | 0.2734 | -1436.4 | -447.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-02 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -8.87 | 327.28 | 0.30 | 181.11 | 0.2680 | 697.0 | 563.6 | |
| 0 | 6 | 0 | 3 | -9.15 | 327.20 | 0.22 | 180.80 | 0.2727 | 520.0 | 450.2 | |
| 14 | 593 | 7 | 304 | -8.67 | 325.04 | -1.94 | 172.75 | 0.2667 | -1399.1 | -754.9 | |
| 64 | -3 | 33 | -3 | -7.87 | 325.00 | -1.98 | 172.21 | 0.2532 | -2325.7 | 999999 | |
| 8 | -3 | 4 | -3 | -8.72 | 324.68 | -2.30 | 171.47 | 0.2682 | -1300.1 | 999999 | |
| 14 | -3 | 7 | -3 | -8.19 | 324.57 | -2.41 | 170.74 | 0.2597 | -1707.7 | 999999 | |
| 18 | -3 | 9 | -3 | -7.79 | 324.06 | -2.92 | 168.52 | 0.2546 | -1389.6 | 999999 | |
| 0 | 2 | 0 | 1 | -9.81 | 324.05 | -2.93 | 169.87 | 0.2881 | -693.0 | -675.7 | |
| 0 | 4 | 0 | 2 | -11.64 | 323.79 | -3.19 | 170.12 | 0.3190 | -441.0 | -383.9 | |
| 0 | 4 | 0 | 2 | -7.32 | 323.40 | -3.58 | 165.54 | 0.2493 | -457.0 | -533.4 | |
| 0 | 9 | 0 | 4 | -7.12 | 322.89 | -4.09 | 163.36 | 0.2484 | -378.0 | -337.6 | |
| 0 | 7 | 0 | 4 | -9.01 | 322.79 | -4.19 | 164.97 | 0.2795 | 78.0 | 100.2 | |
| 15 | 40 | 8 | 21 | -7.76 | 322.65 | -4.33 | 163.19 | 0.2600 | -1358.2 | -955.3 | |
| 0 | 11 | 0 | 6 | -6.73 | 322.42 | -4.56 | 161.07 | 0.2444 | 484.0 | 244.8 | |
| 0 | 12 | 0 | 6 | -7.05 | 321.51 | -5.47 | 158.13 | 0.2549 | -880.0 | -705.0 | |
| 0 | 6 | 0 | 3 | -7.46 | 321.39 | -5.59 | 158.27 | 0.2620 | -778.0 | -722.0 | |
| 0 | 28 | 0 | 14 | -7.66 | 321.19 | -5.79 | 157.87 | 0.2665 | -1173.0 | -837.1 | |
| 0 | 12 | 0 | 6 | -8.70 | 321.14 | -5.84 | 159.09 | 0.2832 | -763.0 | -634.5 | |
| 0 | 4 | 0 | 2 | -9.60 | 320.81 | -6.17 | 159.14 | 0.2991 | -809.0 | -571.0 | |
| 0 | 9 | 0 | 5 | -8.31 | 320.75 | -6.23 | 157.28 | 0.2794 | -861.0 | -705.5 | |
| 0 | 11 | 0 | 5 | -8.16 | 319.84 | -7.14 | 154.15 | 0.2834 | -712.0 | -565.9 | |
| 0 | 4 | 0 | 2 | -7.16 | 319.62 | -7.36 | 151.79 | 0.2700 | -712.0 | -564.8 | |
| 0 | 13 | 0 | 7 | -8.61 | 319.08 | -7.90 | 152.52 | 0.2959 | -874.0 | -621.5 | |
| 0 | 15 | 0 | 8 | -8.13 | 319.05 | -7.93 | 151.66 | 0.2890 | -897.0 | -641.6 | |
| 0 | 6 | 0 | 3 | -3.32 | 318.96 | -8.02 | 140.86 | 0.2216 | 340.0 | 268.1 | |
| 0 | 4 | 0 | 2 | -9.12 | 317.68 | -9.30 | 149.36 | 0.3146 | 695.0 | 511.9 | |
| 0 | 3 | 0 | 2 | -10.84 | 316.94 | -10.04 | 150.12 | 0.3451 | 647.0 | 387.9 | |
| 0 | 4 | 0 | 2 | -9.14 | 316.84 | -10.14 | 147.17 | 0.3221 | 727.0 | 542.2 | |
| 0 | 7 | 0 | 4 | -10.24 | 316.56 | -10.42 | 148.27 | 0.3399 | 972.0 | 792.2 | |
| 0 | 14 | 0 | 7 | -8.63 | 316.33 | -10.65 | 144.97 | 0.3197 | 1140.0 | 871.1 | |
| 0 | 5 | 0 | 2 | -9.40 | 315.79 | -11.19 | 145.00 | 0.3354 | 699.0 | 664.0 | |
| 6 | 15 | 3 | 8 | -8.60 | 315.69 | -11.29 | 143.33 | 0.3255 | 1315.1 | 1008.1 | |
| 0 | 4 | 0 | 2 | -9.01 | 315.44 | -11.54 | 143.47 | 0.3335 | 958.0 | 862.7 | |
| 0 | 7 | 0 | 4 | -9.26 | 315.27 | -11.71 | 143.51 | 0.3384 | 796.0 | 771.8 | |
| 0 | 3 | 0 | 2 | -8.09 | 315.15 | -11.83 | 141.05 | 0.3244 | 885.0 | 818.0 | |
| 0 | 15 | 0 | 8 | -8.74 | 315.05 | -11.93 | 142.04 | 0.3338 | 1291.0 | 1070.6 | |
| 0 | 7 | 0 | 4 | -9.87 | 314.84 | -12.14 | 143.61 | 0.3506 | 966.0 | 732.6 | |
| 0 | 3 | 0 | 1 | -5.83 | 314.44 | -12.53 | 134.54 | 0.3043 | 668.0 | 727.5 | |
| 6 | 20 | 3 | 10 | -7.15 | 314.33 | -12.65 | 137.23 | 0.3214 | 1171.6 | 865.2 | |
| 0 | 4 | 0 | 2 | -8.63 | 314.28 | -12.70 | 140.11 | 0.3403 | 675.0 | 708.5 | |
| 0 | 3 | 0 | 2 | -5.44 | 314.29 | -12.69 | 133.26 | 0.3015 | 844.0 | 828.3 | |
| 0 | 7 | 0 | 4 | -7.68 | 314.07 | -12.91 | 137.75 | 0.3307 | 907.0 | 778.0 | |
| 0 | 4 | 0 | 2 | -11.40 | 312.58 | -14.40 | 141.41 | 0.3925 | 520.0 | 541.9 | |
| 0 | 6 | 0 | 3 | -6.53 | 312.34 | -14.64 | 131.64 | 0.3376 | 944.0 | 788.1 | |
| 0 | 5 | 0 | 3 | -10.22 | 311.21 | -15.77 | 136.82 | 0.3926 | 957.0 | 826.0 | |
| 0 | 7 | 0 | 4 | -8.93 | 311.15 | -15.83 | 134.34 | 0.3785 | 930.0 | 743.4 | |
| 0 | 5 | 0 | 3 | -9.91 | 310.90 | -16.08 | 135.70 | 0.3925 | 667.0 | 613.3 | |
| 0 | 3 | 0 | 2 | -10.69 | 310.61 | -16.37 | 136.57 | 0.4046 | 546.0 | 474.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
