SOHO MDI 2000-10-02 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123 | 863 | 71 | 501 | -21.79 | 314.61 | -12.37 | 157.48 | 0.5170 | -948.3 | -75.0 | |
|
previous
or next observation for the same group /

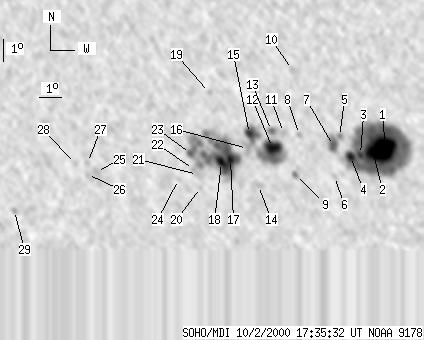

back to the solar disc SOHO MDI 2000-10-02 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40 | 416 | 23 | 237 | -21.50 | 318.16 | -8.82 | 163.10 | 0.4929 | -1970.9 | -657.4 | |
| 21 | -1 | 12 | -1 | -21.73 | 317.63 | -9.35 | 162.31 | 0.4986 | -1452.0 | 999999 | |
| 3 | -1 | 2 | -1 | -21.78 | 317.08 | -9.90 | 161.37 | 0.5020 | -997.5 | 999999 | |
| 7 | -1 | 4 | -1 | -21.88 | 316.64 | -10.33 | 160.69 | 0.5055 | -973.3 | 999999 | |
| 0 | 4 | 0 | 2 | -21.01 | 316.24 | -10.74 | 159.35 | 0.4953 | -825.0 | -684.7 | |
| 0 | 6 | 0 | 4 | -22.79 | 315.89 | -11.09 | 160.06 | 0.5220 | -468.0 | -286.9 | |
| 7 | 19 | 4 | 11 | -21.41 | 315.96 | -11.02 | 159.16 | 0.5024 | -868.6 | -682.3 | |
| 0 | 5 | 0 | 3 | -20.96 | 314.54 | -12.43 | 156.40 | 0.5043 | 454.0 | 382.0 | |
| 0 | 6 | 0 | 3 | -22.74 | 314.21 | -12.77 | 157.31 | 0.5304 | -604.0 | -512.6 | |
| 0 | 3 | 0 | 2 | -18.15 | 314.47 | -12.51 | 153.68 | 0.4661 | -343.0 | -309.0 | |
| 0 | 5 | 0 | 3 | -20.89 | 313.87 | -13.11 | 155.21 | 0.5075 | 527.0 | 475.6 | |
| 22 | 84 | 13 | 49 | -21.57 | 313.33 | -13.65 | 154.93 | 0.5199 | -1229.3 | -260.4 | |
| 0 | 10 | 0 | 6 | -20.82 | 313.36 | -13.62 | 154.31 | 0.5097 | 695.0 | 435.4 | |
| 0 | 4 | 0 | 3 | -23.28 | 312.55 | -14.43 | 155.18 | 0.5474 | 456.0 | 355.0 | |
| 6 | 29 | 3 | 17 | -20.98 | 312.40 | -14.58 | 152.92 | 0.5182 | 605.2 | 52.3 | |
| 0 | 13 | 0 | 8 | -21.65 | 312.25 | -14.73 | 153.29 | 0.5280 | 208.0 | 127.4 | |
| 8 | 222 | 5 | 131 | -22.16 | 311.45 | -15.53 | 152.55 | 0.5399 | 1548.8 | 943.4 | |
| 6 | -17 | 4 | -17 | -22.31 | 311.04 | -15.94 | 152.07 | 0.5446 | 1412.9 | 999999 | |
| 0 | 3 | 0 | 2 | -19.25 | 310.86 | -16.12 | 148.73 | 0.5071 | 722.0 | 589.9 | |
| 0 | 3 | 0 | 2 | -23.46 | 309.97 | -17.01 | 151.60 | 0.5663 | 392.0 | 318.6 | |
| 0 | 2 | 0 | 1 | -22.88 | 309.92 | -17.06 | 150.99 | 0.5595 | 442.0 | 438.9 | |
| 0 | 4 | 0 | 2 | -22.66 | 309.77 | -17.21 | 150.57 | 0.5579 | 447.0 | 448.1 | |
| 3 | -17 | 1 | -17 | -21.95 | 309.73 | -17.25 | 149.83 | 0.5495 | 896.3 | 999999 | |
| 0 | 1 | 0 | 1 | -23.13 | 309.04 | -17.94 | 150.01 | 0.5689 | 189.0 | 219.9 | |
| 0 | 7 | 0 | 4 | -22.93 | 305.39 | -21.59 | 145.08 | 0.5943 | 683.0 | 691.5 | |
| 0 | 3 | 0 | 2 | -23.08 | 304.95 | -22.03 | 144.71 | 0.5995 | 440.0 | 472.6 | |
| 0 | 4 | 0 | 2 | -22.55 | 305.05 | -21.93 | 144.26 | 0.5928 | 683.0 | 575.0 | |
| 0 | 4 | 0 | 2 | -22.62 | 304.49 | -22.49 | 143.66 | 0.5982 | 499.0 | 456.0 | |
| 0 | 6 | 0 | 4 | -24.89 | 301.19 | -25.79 | 142.38 | 0.6488 | 710.0 | 566.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
