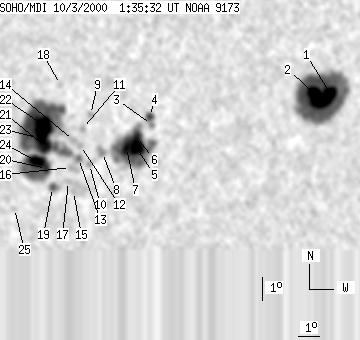

SOHO MDI 2000-10-03 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 165 | 1030 | 99 | 616 | -12.06 | 351.13 | 28.54 | 236.05 | 0.5617 | -78.0 | 62.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-03 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47 | 324 | 30 | 210 | -11.11 | 359.01 | 36.43 | 244.18 | 0.6496 | -1441.2 | -534.3 | |
| -1 | -1 | -1 | -1 | -11.23 | 358.44 | 35.85 | 243.65 | 0.6434 | 999999 | 999999 | |
| 0 | 5 | 0 | 3 | -11.84 | 350.69 | 28.10 | 236.70 | 0.5538 | -546.0 | -419.0 | |
| 4 | 9 | 2 | 5 | -11.51 | 350.56 | 27.97 | 237.10 | 0.5496 | -1013.9 | -712.6 | |
| 17 | 177 | 10 | 105 | -12.75 | 350.12 | 27.53 | 234.77 | 0.5541 | -1255.7 | -526.2 | |
| 4 | -5 | 3 | -5 | -12.30 | 350.06 | 27.48 | 235.40 | 0.5498 | -1359.0 | 999999 | |
| 14 | -5 | 9 | -5 | -12.73 | 349.66 | 27.08 | 234.35 | 0.5486 | -1579.3 | 999999 | |
| 0 | 11 | 0 | 7 | -12.88 | 348.61 | 26.03 | 233.04 | 0.5374 | -62.0 | 91.2 | |
| 0 | 4 | 0 | 2 | -11.29 | 347.91 | 25.33 | 234.80 | 0.5156 | -465.0 | -327.7 | |
| 0 | 6 | 0 | 3 | -13.35 | 348.09 | 25.50 | 231.78 | 0.5354 | 434.0 | 426.9 | |
| 0 | 6 | 0 | 3 | -11.84 | 347.62 | 25.03 | 233.58 | 0.5167 | -492.0 | -428.8 | |
| 0 | 4 | 0 | 2 | -12.54 | 347.60 | 25.02 | 232.47 | 0.5226 | 590.0 | 586.4 | |
| 0 | 7 | 0 | 4 | -13.07 | 347.57 | 24.99 | 231.62 | 0.5270 | 836.0 | 687.3 | |
| 0 | 6 | 0 | 3 | -12.32 | 347.27 | 24.69 | 232.45 | 0.5168 | 550.0 | 540.2 | |
| 0 | 3 | 0 | 2 | -14.43 | 347.50 | 24.92 | 229.52 | 0.5386 | 456.0 | 539.8 | |
| 0 | 9 | 0 | 5 | -13.43 | 347.26 | 24.67 | 230.73 | 0.5266 | 717.0 | 621.3 | |
| 0 | 5 | 0 | 3 | -14.01 | 347.23 | 24.65 | 229.84 | 0.5316 | 434.0 | 463.8 | |
| 0 | 4 | 0 | 2 | -10.00 | 346.50 | 23.91 | 235.37 | 0.4871 | 424.0 | 323.8 | |
| 2 | 14 | 1 | 8 | -14.22 | 346.55 | 23.97 | 228.73 | 0.5260 | 837.8 | 543.2 | |
| 6 | 431 | 3 | 246 | -13.42 | 346.20 | 23.62 | 229.52 | 0.5145 | 760.9 | 786.6 | |
| 27 | -20 | 16 | -20 | -12.55 | 346.11 | 23.53 | 230.75 | 0.5053 | 1388.9 | 999999 | |
| 26 | -20 | 15 | -20 | -11.64 | 345.90 | 23.32 | 231.95 | 0.4943 | 1906.0 | 999999 | |
| -21 | -20 | -21 | -20 | -12.16 | 345.77 | 23.19 | 230.95 | 0.4977 | 999999 | 999999 | |
| 18 | -20 | 10 | -20 | -13.11 | 345.74 | 23.15 | 229.43 | 0.5062 | 1357.3 | 999999 | |
| 0 | 5 | 0 | 3 | -15.02 | 344.98 | 22.40 | 225.65 | 0.5168 | 527.0 | 452.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
