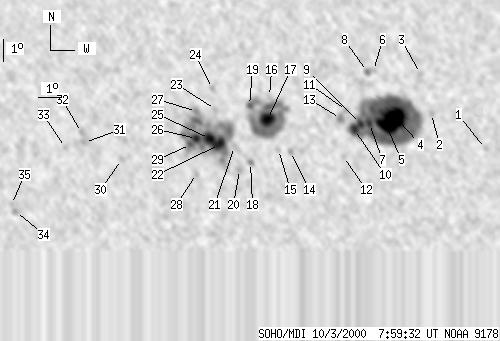

SOHO MDI 2000-10-03 07:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119 | 995 | 67 | 565 | -21.88 | 314.28 | -4.79 | 171.02 | 0.4873 | -756.6 | -57.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-03 07:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -22.73 | 322.29 | 3.22 | 186.05 | 0.4940 | 361.0 | 293.6 | |
| 0 | 5 | 0 | 3 | -21.17 | 320.00 | 0.94 | 181.87 | 0.4676 | -563.0 | -384.3 | |
| 0 | 4 | 0 | 2 | -19.43 | 319.54 | 0.47 | 181.01 | 0.4402 | 556.0 | 465.4 | |
| 30 | 412 | 17 | 232 | -21.30 | 318.50 | -0.57 | 178.87 | 0.4695 | -2159.8 | -676.6 | |
| 24 | -4 | 13 | -4 | -21.70 | 318.12 | -0.94 | 178.15 | 0.4758 | -1405.5 | 999999 | |
| 0 | 1 | 0 | 1 | -19.30 | 317.60 | -1.46 | 176.84 | 0.4388 | 740.0 | 751.5 | |
| 5 | -4 | 3 | -4 | -21.62 | 317.41 | -1.65 | 176.75 | 0.4750 | -1011.1 | 999999 | |
| 0 | 6 | 0 | 3 | -19.34 | 317.35 | -1.71 | 176.31 | 0.4397 | 712.0 | 581.9 | |
| 4 | -4 | 2 | -4 | -21.62 | 317.04 | -2.03 | 176.01 | 0.4754 | -1247.3 | 999999 | |
| 8 | -4 | 5 | -4 | -21.88 | 316.78 | -2.29 | 175.56 | 0.4797 | -885.8 | 999999 | |
| 0 | 5 | 0 | 3 | -21.05 | 316.46 | -2.61 | 174.77 | 0.4673 | -325.0 | -455.9 | |
| 0 | 3 | 0 | 2 | -23.09 | 316.30 | -2.77 | 174.86 | 0.4987 | -606.0 | -440.9 | |
| 0 | 9 | 0 | 5 | -21.40 | 316.20 | -2.86 | 174.34 | 0.4731 | -1043.0 | -913.4 | |
| 0 | 5 | 0 | 3 | -22.88 | 314.06 | -5.01 | 170.70 | 0.4998 | -501.0 | -458.7 | |
| 0 | 4 | 0 | 2 | -22.80 | 313.55 | -5.51 | 169.75 | 0.4999 | -360.0 | -245.9 | |
| 0 | 4 | 0 | 2 | -20.46 | 313.27 | -5.80 | 168.22 | 0.4656 | -132.0 | -256.7 | |
| 17 | 186 | 10 | 105 | -21.47 | 313.14 | -5.92 | 168.44 | 0.4812 | -1324.0 | -283.9 | |
| 0 | 4 | 0 | 2 | -23.40 | 312.34 | -6.73 | 167.83 | 0.5123 | 724.0 | 625.6 | |
| 2 | -17 | 1 | -17 | -20.87 | 312.42 | -6.65 | 166.76 | 0.4746 | 722.3 | 999999 | |
| 0 | 7 | 0 | 4 | -23.72 | 311.85 | -7.22 | 167.13 | 0.5186 | 577.0 | 396.9 | |
| 0 | 7 | 0 | 4 | -22.69 | 311.69 | -7.37 | 166.36 | 0.5041 | 374.0 | 178.4 | |
| 12 | 289 | 7 | 166 | -22.61 | 311.06 | -8.01 | 165.20 | 0.5053 | 1283.1 | 868.7 | |
| 0 | 4 | 0 | 2 | -21.07 | 310.98 | -8.09 | 164.16 | 0.4830 | 685.0 | 600.9 | |
| 0 | 4 | 0 | 2 | -20.15 | 310.90 | -8.16 | 163.45 | 0.4698 | -507.0 | -443.6 | |
| 9 | -22 | 5 | -22 | -22.35 | 310.65 | -8.42 | 164.33 | 0.5031 | 1623.9 | 999999 | |
| 6 | -22 | 3 | -22 | -22.36 | 310.10 | -8.97 | 163.36 | 0.5056 | 1305.3 | 999999 | |
| 0 | 3 | 0 | 2 | -21.17 | 310.17 | -8.89 | 162.74 | 0.4880 | 1068.0 | 1008.2 | |
| 0 | 3 | 0 | 2 | -23.93 | 309.99 | -9.08 | 164.10 | 0.5285 | 586.0 | 442.5 | |
| 2 | -22 | 1 | -22 | -22.64 | 309.82 | -9.24 | 163.05 | 0.5107 | 847.8 | 999999 | |
| 0 | 5 | 0 | 3 | -23.38 | 306.80 | -12.27 | 158.56 | 0.5358 | 612.0 | 533.8 | |
| 0 | 5 | 0 | 3 | -22.66 | 305.26 | -13.80 | 155.59 | 0.5349 | 743.0 | 740.4 | |
| 0 | 5 | 0 | 3 | -22.22 | 305.18 | -13.89 | 155.09 | 0.5296 | 875.0 | 780.8 | |
| 0 | 3 | 0 | 2 | -22.91 | 304.41 | -14.66 | 154.50 | 0.5435 | 657.0 | 534.5 | |
| 0 | 6 | 0 | 4 | -25.90 | 301.80 | -17.27 | 153.35 | 0.5976 | 495.0 | 499.7 | |
| 0 | 2 | 0 | 1 | -25.58 | 301.67 | -17.40 | 152.91 | 0.5946 | 634.0 | 577.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
