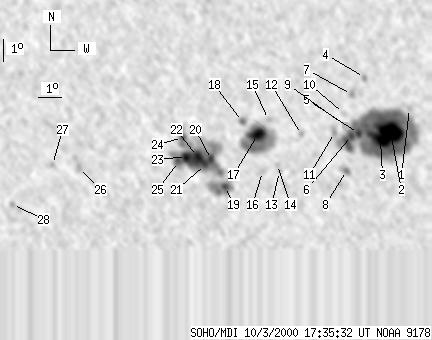

SOHO MDI 2000-10-03 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132 | 894 | 73 | 503 | -21.85 | 314.87 | 1.08 | 182.24 | 0.4815 | -597.8 | -118.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-03 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -20.35 | 319.33 | 5.54 | 191.33 | 0.4628 | -537.0 | -585.9 | |
| 39 | 437 | 22 | 246 | -21.35 | 318.57 | 4.78 | 189.43 | 0.4758 | -1950.8 | -651.1 | |
| 23 | -2 | 13 | -2 | -21.70 | 318.16 | 4.37 | 188.52 | 0.4802 | -1436.4 | 999999 | |
| 0 | 5 | 0 | 3 | -18.99 | 317.43 | 3.64 | 187.93 | 0.4368 | 613.0 | 476.4 | |
| 5 | -2 | 3 | -2 | -21.42 | 317.24 | 3.45 | 186.81 | 0.4741 | -1389.8 | 999999 | |
| 4 | -2 | 2 | -2 | -21.51 | 316.94 | 3.16 | 186.22 | 0.4749 | -1378.6 | 999999 | |
| 0 | 5 | 0 | 3 | -19.72 | 316.91 | 3.12 | 186.60 | 0.4472 | 483.0 | 523.5 | |
| 0 | 6 | 0 | 3 | -23.06 | 316.77 | 2.98 | 185.53 | 0.4983 | -895.0 | -663.2 | |
| 0 | 3 | 0 | 2 | -21.02 | 316.60 | 2.81 | 185.65 | 0.4669 | -110.0 | -131.4 | |
| 0 | 4 | 0 | 2 | -20.54 | 316.59 | 2.80 | 185.74 | 0.4595 | -569.0 | -399.8 | |
| 0 | 9 | 0 | 5 | -21.37 | 316.23 | 2.44 | 184.84 | 0.4718 | -1003.0 | -719.2 | |
| 0 | 4 | 0 | 2 | -21.46 | 314.85 | 1.06 | 182.11 | 0.4718 | -861.0 | -660.6 | |
| 0 | 2 | 0 | 1 | -23.10 | 313.94 | 0.15 | 180.28 | 0.4967 | -671.0 | -507.6 | |
| 0 | 4 | 0 | 2 | -22.79 | 313.85 | 0.06 | 180.12 | 0.4919 | -808.0 | -666.7 | |
| 0 | 4 | 0 | 2 | -20.80 | 313.48 | -0.31 | 179.37 | 0.4613 | -669.0 | -615.0 | |
| 0 | 8 | 0 | 4 | -23.10 | 313.22 | -0.57 | 178.94 | 0.4967 | -378.0 | -368.7 | |
| 15 | 116 | 8 | 65 | -21.46 | 313.02 | -0.77 | 178.47 | 0.4716 | -1375.2 | -355.5 | |
| 0 | 7 | 0 | 4 | -20.89 | 312.40 | -1.39 | 177.18 | 0.4632 | 692.0 | 660.7 | |
| 5 | 41 | 3 | 24 | -23.78 | 311.65 | -2.14 | 176.12 | 0.5080 | 1095.4 | 960.3 | |
| 6 | 211 | 3 | 120 | -22.57 | 311.08 | -2.71 | 174.86 | 0.4904 | 1215.1 | 847.2 | |
| 6 | -20 | 3 | -20 | -22.80 | 310.82 | -2.97 | 174.43 | 0.4942 | 1156.9 | 999999 | |
| 12 | -20 | 7 | -20 | -22.44 | 310.49 | -3.30 | 173.73 | 0.4894 | 1741.1 | 999999 | |
| 10 | -20 | 6 | -20 | -22.45 | 310.02 | -3.77 | 172.86 | 0.4902 | 1471.0 | 999999 | |
| 3 | -20 | 1 | -20 | -21.60 | 309.88 | -3.91 | 172.34 | 0.4778 | 1140.4 | 999999 | |
| 4 | -20 | 2 | -20 | -22.67 | 309.68 | -4.11 | 172.28 | 0.4943 | 983.1 | 999999 | |
| 0 | 15 | 0 | 8 | -22.99 | 305.47 | -8.32 | 164.84 | 0.5117 | 773.0 | 681.7 | |
| 0 | 4 | 0 | 2 | -22.88 | 304.32 | -9.47 | 162.81 | 0.5149 | 605.0 | 511.9 | |
| 0 | 4 | 0 | 2 | -24.73 | 302.44 | -11.35 | 160.93 | 0.5493 | 543.0 | 455.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
