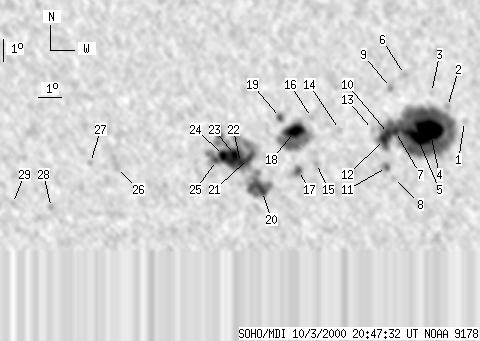

SOHO MDI 2000-10-03 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143 | 935 | 82 | 528 | -21.95 | 314.47 | 2.44 | 184.83 | 0.4844 | -859.7 | -76.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-03 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -21.05 | 320.07 | 8.03 | 195.77 | 0.4821 | -306.0 | -337.1 | |
| 0 | 4 | 0 | 2 | -20.38 | 319.32 | 7.29 | 194.74 | 0.4692 | -853.0 | -644.2 | |
| 0 | 4 | 0 | 2 | -19.76 | 318.62 | 6.59 | 193.73 | 0.4573 | -564.0 | -514.3 | |
| 42 | 427 | 24 | 241 | -21.33 | 318.61 | 6.58 | 192.88 | 0.4808 | -1932.4 | -646.3 | |
| 27 | -4 | 15 | -4 | -21.72 | 318.12 | 6.09 | 191.77 | 0.4851 | -1408.3 | 999999 | |
| 0 | 4 | 0 | 2 | -18.97 | 317.48 | 5.45 | 191.79 | 0.4413 | 691.0 | 480.5 | |
| 3 | -4 | 2 | -4 | -21.45 | 317.19 | 5.16 | 190.12 | 0.4782 | -1384.3 | 999999 | |
| 0 | 4 | 0 | 2 | -23.54 | 317.18 | 5.15 | 189.33 | 0.5095 | -606.0 | -517.9 | |
| 0 | 5 | 0 | 3 | -19.52 | 316.92 | 4.88 | 190.36 | 0.4481 | 939.0 | 710.3 | |
| 5 | -4 | 3 | -4 | -21.53 | 316.90 | 4.87 | 189.53 | 0.4787 | -1371.5 | 999999 | |
| 0 | 11 | 0 | 6 | -23.04 | 316.87 | 4.83 | 188.94 | 0.5014 | -743.0 | -597.1 | |
| 7 | -4 | 4 | -4 | -21.80 | 316.74 | 4.71 | 189.13 | 0.4823 | -1174.1 | 999999 | |
| 0 | 3 | 0 | 2 | -21.35 | 316.22 | 4.19 | 188.28 | 0.4744 | -842.0 | -778.9 | |
| 0 | 5 | 0 | 3 | -21.34 | 314.84 | 2.81 | 185.58 | 0.4716 | -654.0 | -573.4 | |
| 0 | 9 | 0 | 5 | -22.84 | 313.90 | 1.87 | 183.51 | 0.4935 | -657.0 | -522.6 | |
| 0 | 4 | 0 | 2 | -20.81 | 313.67 | 1.64 | 183.33 | 0.4620 | -586.0 | -473.6 | |
| 3 | 11 | 2 | 6 | -23.15 | 313.15 | 1.11 | 182.07 | 0.4977 | -647.8 | -385.1 | |
| 23 | 107 | 13 | 60 | -21.42 | 312.96 | 0.93 | 181.85 | 0.4710 | -1280.5 | -314.2 | |
| 3 | 7 | 1 | 4 | -20.80 | 312.38 | 0.35 | 180.71 | 0.4613 | 990.3 | 611.1 | |
| 2 | 299 | 1 | 170 | -24.10 | 311.62 | -0.41 | 179.27 | 0.5117 | 986.4 | 813.9 | |
| 5 | -20 | 3 | -20 | -22.62 | 311.04 | -0.99 | 178.12 | 0.4894 | 1118.4 | 999999 | |
| 5 | -20 | 3 | -20 | -22.80 | 310.70 | -1.33 | 177.49 | 0.4924 | 1176.5 | 999999 | |
| 5 | -20 | 3 | -20 | -22.44 | 310.45 | -1.58 | 176.98 | 0.4871 | 1726.9 | 999999 | |
| 10 | -20 | 6 | -20 | -22.49 | 309.99 | -2.05 | 176.11 | 0.4882 | 1430.0 | 999999 | |
| 3 | -20 | 2 | -20 | -22.71 | 309.69 | -2.34 | 175.58 | 0.4920 | 854.9 | 999999 | |
| 0 | 14 | 0 | 8 | -23.11 | 305.44 | -6.59 | 167.94 | 0.5072 | 679.0 | 588.9 | |
| 0 | 4 | 0 | 2 | -22.86 | 304.35 | -7.68 | 165.89 | 0.5072 | 634.0 | 510.0 | |
| 0 | 5 | 0 | 3 | -24.92 | 302.53 | -9.50 | 163.96 | 0.5437 | 454.0 | 345.7 | |
| 0 | 3 | 0 | 2 | -24.77 | 300.85 | -11.18 | 161.22 | 0.5490 | 508.0 | 304.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
