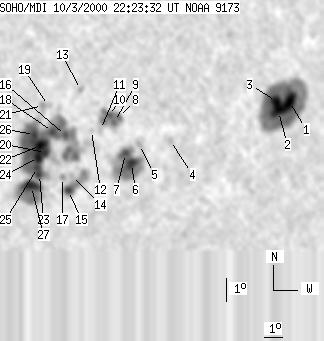

SOHO MDI 2000-10-03 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143 | 984 | 97 | 675 | -11.99 | 350.77 | 39.62 | 244.54 | 0.6898 | 115.1 | 84.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-03 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16 | 281 | 12 | 217 | -11.09 | 358.81 | 47.65 | 249.84 | 0.7749 | -761.2 | -415.6 | |
| 14 | -1 | 11 | -1 | -11.45 | 358.24 | 47.08 | 249.17 | 0.7703 | -1087.9 | 999999 | |
| 10 | -1 | 7 | -1 | -11.02 | 358.03 | 46.88 | 249.61 | 0.7666 | -1444.9 | 999999 | |
| 0 | 5 | 0 | 4 | -12.15 | 352.38 | 41.23 | 245.57 | 0.7100 | 579.0 | 464.1 | |
| 0 | 7 | 0 | 5 | -12.19 | 350.76 | 39.61 | 244.64 | 0.6920 | -679.0 | -512.1 | |
| 13 | 115 | 9 | 78 | -12.94 | 350.49 | 39.34 | 243.48 | 0.6928 | -872.3 | -464.6 | |
| 5 | -6 | 4 | -6 | -12.50 | 350.10 | 38.95 | 243.83 | 0.6861 | -1149.8 | 999999 | |
| 3 | 52 | 2 | 35 | -10.99 | 349.49 | 38.33 | 245.53 | 0.6713 | -923.7 | -771.4 | |
| 2 | -8 | 1 | -8 | -11.14 | 349.31 | 38.16 | 245.22 | 0.6700 | -1010.1 | 999999 | |
| 3 | -8 | 2 | -8 | -10.88 | 349.02 | 37.86 | 245.42 | 0.6652 | -1115.1 | 999999 | |
| 0 | 5 | 0 | 3 | -11.42 | 348.65 | 37.49 | 244.45 | 0.6636 | -592.0 | -420.3 | |
| 0 | 4 | 0 | 2 | -11.43 | 348.20 | 37.05 | 244.17 | 0.6584 | -549.0 | -423.1 | |
| 0 | 5 | 0 | 3 | -9.71 | 347.41 | 36.26 | 246.13 | 0.6399 | -659.0 | -560.8 | |
| 0 | 3 | 0 | 2 | -13.22 | 347.50 | 36.35 | 241.26 | 0.6604 | 780.0 | 727.4 | |
| 6 | 44 | 4 | 29 | -13.83 | 347.46 | 36.31 | 240.40 | 0.6636 | 812.4 | 535.5 | |
| 4 | 449 | 3 | 288 | -11.54 | 346.93 | 35.78 | 243.21 | 0.6441 | 751.0 | 667.8 | |
| 0 | 5 | 0 | 3 | -13.27 | 347.06 | 35.91 | 240.90 | 0.6557 | 699.0 | 649.1 | |
| 7 | -16 | 4 | -16 | -11.33 | 346.27 | 35.12 | 243.07 | 0.6349 | 1023.0 | 999999 | |
| 0 | 2 | 0 | 1 | -10.26 | 345.93 | 34.78 | 244.40 | 0.6246 | 570.0 | 549.0 | |
| 6 | -16 | 4 | -16 | -12.18 | 346.05 | 34.90 | 241.73 | 0.6373 | 1109.6 | 999999 | |
| 0 | 7 | 0 | 5 | -10.24 | 345.64 | 34.49 | 244.24 | 0.6210 | 558.0 | 579.4 | |
| 15 | -16 | 10 | -16 | -11.87 | 345.76 | 34.61 | 241.96 | 0.6321 | 1482.6 | 999999 | |
| 5 | -16 | 3 | -16 | -13.07 | 345.90 | 34.75 | 240.38 | 0.6410 | 998.5 | 999999 | |
| 9 | -16 | 6 | -16 | -12.36 | 345.74 | 34.59 | 241.25 | 0.6348 | 1576.1 | 999999 | |
| 5 | -16 | 3 | -16 | -12.77 | 345.75 | 34.60 | 240.69 | 0.6375 | 1157.1 | 999999 | |
| 5 | -16 | 3 | -16 | -11.40 | 345.41 | 34.26 | 242.39 | 0.6250 | 1624.0 | 999999 | |
| 15 | -16 | 9 | -16 | -13.54 | 345.59 | 34.44 | 239.50 | 0.6404 | 1147.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
