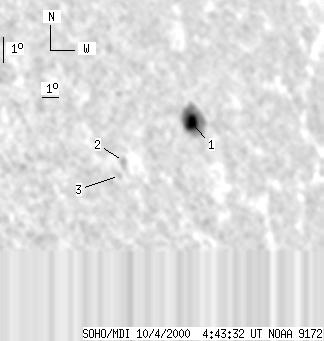

SOHO MDI 2000-10-04 04:43:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 97 | 15 | 76 | 13.04 | 358.53 | 50.85 | 281.54 | 0.7731 | 966.2 | 192.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 04:43:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 82 | 15 | 65 | 13.23 | 359.19 | 51.51 | 281.76 | 0.7806 | 1005.6 | 311.1 | |
| 0 | 11 | 0 | 8 | 12.07 | 354.71 | 47.04 | 280.46 | 0.7301 | -675.0 | -586.7 | |
| 0 | 4 | 0 | 3 | 11.55 | 354.36 | 46.69 | 279.76 | 0.7257 | -349.0 | -297.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
