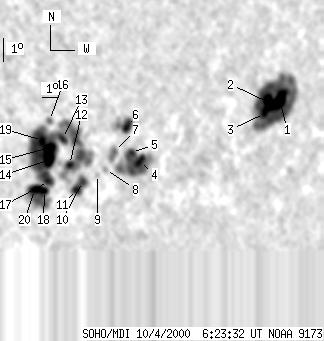

SOHO MDI 2000-10-04 06:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 143 | 934 | 105 | 686 | -12.16 | 350.62 | 43.87 | 246.57 | 0.7372 | 44.9 | 93.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 06:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 260 | 17 | 220 | -11.08 | 358.66 | 51.91 | 251.42 | 0.8170 | -759.7 | -342.4 | |
| 15 | -1 | 13 | -1 | -11.14 | 357.97 | 51.22 | 251.12 | 0.8106 | -1260.3 | 999999 | |
| 9 | -1 | 7 | -1 | -11.57 | 357.83 | 51.07 | 250.55 | 0.8105 | -915.0 | 999999 | |
| 10 | 101 | 8 | 74 | -12.91 | 350.75 | 43.99 | 245.99 | 0.7435 | -667.3 | -393.2 | |
| 3 | -4 | 2 | -4 | -12.50 | 350.21 | 43.46 | 246.25 | 0.7360 | -1021.2 | 999999 | |
| 10 | 34 | 8 | 24 | -11.40 | 349.78 | 43.02 | 247.44 | 0.7265 | -843.6 | -759.6 | |
| 0 | 18 | 0 | 13 | -12.38 | 349.26 | 42.51 | 245.93 | 0.7251 | -437.0 | -404.9 | |
| 0 | 5 | 0 | 3 | -13.09 | 348.92 | 42.17 | 244.85 | 0.7247 | 53.0 | 27.4 | |
| 0 | 4 | 0 | 3 | -13.27 | 348.53 | 41.77 | 244.42 | 0.7212 | 426.0 | 374.6 | |
| 6 | 32 | 4 | 23 | -13.49 | 347.78 | 41.02 | 243.72 | 0.7141 | 712.2 | 571.1 | |
| 6 | -10 | 4 | -10 | -13.80 | 347.52 | 40.77 | 243.19 | 0.7129 | 625.4 | 999999 | |
| 5 | 473 | 3 | 322 | -12.73 | 346.94 | 40.18 | 244.25 | 0.7011 | 804.0 | 544.0 | |
| 5 | -12 | 4 | -12 | -11.63 | 346.37 | 39.62 | 245.40 | 0.6892 | 889.5 | 999999 | |
| 13 | -12 | 9 | -12 | -12.45 | 345.85 | 39.09 | 244.01 | 0.6873 | 1357.4 | 999999 | |
| 14 | -12 | 9 | -12 | -11.95 | 345.76 | 39.00 | 244.63 | 0.6838 | 1345.9 | 999999 | |
| 0 | 7 | 0 | 4 | -10.84 | 345.58 | 38.82 | 246.04 | 0.6761 | 829.0 | 646.1 | |
| 5 | -12 | 3 | -12 | -13.36 | 345.97 | 39.21 | 242.88 | 0.6934 | 872.9 | 999999 | |
| 5 | -12 | 3 | -12 | -13.72 | 345.83 | 39.08 | 242.32 | 0.6938 | 786.5 | 999999 | |
| 5 | -12 | 3 | -12 | -11.63 | 345.35 | 38.59 | 244.82 | 0.6775 | 1589.7 | 999999 | |
| 12 | -12 | 8 | -12 | -13.64 | 345.30 | 38.54 | 242.11 | 0.6875 | 1126.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
