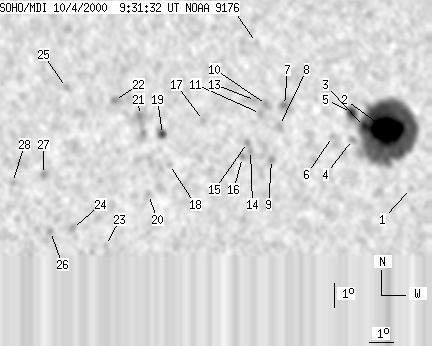

SOHO MDI 2000-10-04 09:31:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79 | 718 | 43 | 391 | -8.69 | 323.49 | 18.45 | 229.89 | 0.4085 | -1579.3 | -448.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 09:31:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -11.18 | 326.80 | 21.77 | 230.88 | 0.4709 | 792.0 | 713.6 | |
| 64 | 528 | 35 | 290 | -8.78 | 325.66 | 20.63 | 233.62 | 0.4343 | -1936.2 | -619.9 | |
| 6 | -2 | 3 | -2 | -8.58 | 324.69 | 19.66 | 232.65 | 0.4202 | -1672.7 | 999999 | |
| 0 | 6 | 0 | 3 | -9.09 | 324.22 | 19.18 | 231.01 | 0.4192 | -667.0 | -634.9 | |
| 6 | -2 | 3 | -2 | -8.00 | 324.12 | 19.08 | 232.96 | 0.4074 | -1324.2 | 999999 | |
| 0 | 3 | 0 | 2 | -8.93 | 323.38 | 18.34 | 230.03 | 0.4074 | -704.0 | -586.9 | |
| 0 | 6 | 0 | 3 | -7.62 | 321.34 | 16.31 | 229.28 | 0.3688 | -1035.0 | -868.9 | |
| 0 | 10 | 0 | 6 | -8.41 | 321.17 | 16.14 | 227.37 | 0.3754 | -775.0 | -594.2 | |
| 0 | 6 | 0 | 3 | -9.78 | 320.91 | 15.87 | 224.31 | 0.3876 | -742.0 | -739.3 | |
| 0 | 11 | 0 | 6 | -7.55 | 320.61 | 15.57 | 228.09 | 0.3592 | -900.0 | -796.4 | |
| 0 | 5 | 0 | 3 | -7.91 | 320.38 | 15.34 | 226.93 | 0.3603 | -891.0 | -742.0 | |
| 0 | 3 | 0 | 2 | -5.07 | 320.13 | 15.09 | 232.80 | 0.3270 | -757.0 | -665.8 | |
| 0 | 12 | 0 | 7 | -7.38 | 320.15 | 15.12 | 227.61 | 0.3518 | -659.0 | -617.5 | |
| 0 | 5 | 0 | 3 | -9.38 | 320.03 | 15.00 | 223.39 | 0.3733 | -928.0 | -878.4 | |
| 0 | 8 | 0 | 4 | -9.06 | 319.89 | 14.86 | 223.74 | 0.3679 | -854.0 | -800.5 | |
| 0 | 5 | 0 | 2 | -9.66 | 319.72 | 14.68 | 222.28 | 0.3731 | -793.0 | -637.9 | |
| 0 | 5 | 0 | 3 | -8.12 | 318.08 | 13.04 | 221.82 | 0.3366 | -803.0 | -647.8 | |
| 0 | 5 | 0 | 2 | -9.86 | 316.77 | 11.74 | 215.64 | 0.3455 | 422.0 | 457.7 | |
| 3 | 13 | 2 | 7 | -8.64 | 316.45 | 11.41 | 217.05 | 0.3262 | 781.3 | 541.9 | |
| 0 | 7 | 0 | 4 | -11.06 | 315.97 | 10.93 | 211.83 | 0.3545 | 765.0 | 632.0 | |
| 0 | 45 | 0 | 24 | -7.86 | 315.51 | 10.47 | 216.17 | 0.3065 | 1036.0 | 698.1 | |
| 0 | 7 | 0 | 3 | -7.24 | 314.50 | 9.46 | 214.63 | 0.2883 | 1037.0 | 859.1 | |
| 0 | 1 | 0 | 0 | -13.12 | 314.31 | 9.28 | 205.15 | 0.3711 | 602.0 | 602.0 | |
| 0 | 6 | 0 | 3 | -12.39 | 312.96 | 7.92 | 202.64 | 0.3514 | 895.0 | 740.7 | |
| 0 | 4 | 0 | 2 | -6.69 | 312.59 | 7.55 | 209.87 | 0.2633 | 949.0 | 789.7 | |
| 0 | 4 | 0 | 2 | -12.50 | 312.08 | 7.04 | 200.23 | 0.3478 | 1062.0 | 976.5 | |
| 0 | 6 | 0 | 3 | -10.17 | 311.74 | 6.71 | 201.88 | 0.3099 | 789.0 | 762.3 | |
| 0 | 4 | 0 | 2 | -10.48 | 310.52 | 5.48 | 197.86 | 0.3078 | 678.0 | 623.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
