SOHO MDI 2000-10-04 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 142 | 818 | 110 | 635 | -12.27 | 350.90 | 46.78 | 247.78 | 0.7681 | 92.8 | 102.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 11:11:32 UT |

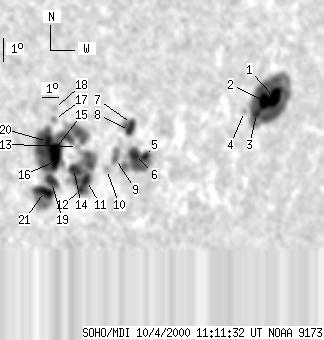

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 238 | 16 | 214 | -11.08 | 358.63 | 54.51 | 252.26 | 0.8411 | -574.3 | -291.6 | |
| 14 | -1 | 13 | -1 | -11.18 | 357.98 | 53.86 | 251.94 | 0.8354 | -1119.0 | 999999 | |
| 7 | -1 | 6 | -1 | -11.63 | 357.56 | 53.45 | 251.29 | 0.8328 | -779.4 | 999999 | |
| 0 | 4 | 0 | 3 | -11.47 | 356.72 | 52.61 | 251.20 | 0.8247 | -687.0 | -512.3 | |
| 5 | 83 | 4 | 64 | -12.79 | 350.94 | 46.82 | 247.44 | 0.7724 | -486.4 | -400.4 | |
| 13 | -5 | 10 | -5 | -12.65 | 350.27 | 46.15 | 247.32 | 0.7650 | -946.7 | 999999 | |
| 4 | 28 | 3 | 21 | -11.35 | 349.81 | 45.69 | 248.73 | 0.7552 | -732.9 | -702.2 | |
| 5 | -7 | 4 | -7 | -11.63 | 349.75 | 45.63 | 248.36 | 0.7557 | -729.9 | 999999 | |
| 0 | 15 | 0 | 11 | -12.72 | 349.20 | 45.08 | 246.75 | 0.7541 | -451.0 | -481.8 | |
| 0 | 5 | 0 | 4 | -13.14 | 348.79 | 44.67 | 246.04 | 0.7515 | -16.0 | -19.5 | |
| 9 | 119 | 7 | 87 | -13.50 | 347.75 | 43.64 | 245.08 | 0.7422 | 648.0 | 404.7 | |
| 5 | -11 | 3 | -11 | -13.86 | 347.56 | 43.44 | 244.54 | 0.7417 | 439.0 | 999999 | |
| 0 | 3 | 0 | 2 | -12.05 | 346.95 | 42.83 | 246.53 | 0.7271 | 587.0 | 539.6 | |
| 3 | -11 | 2 | -11 | -12.94 | 346.91 | 42.80 | 245.37 | 0.7308 | 926.7 | 999999 | |
| 10 | 313 | 7 | 222 | -12.07 | 345.71 | 41.60 | 245.88 | 0.7136 | 1296.5 | 605.3 | |
| 17 | -15 | 12 | -15 | -12.57 | 345.81 | 41.69 | 245.29 | 0.7170 | 1170.2 | 999999 | |
| 0 | 5 | 0 | 3 | -10.84 | 345.49 | 41.37 | 247.39 | 0.7055 | 739.0 | 646.1 | |
| 0 | 5 | 0 | 4 | -10.38 | 345.41 | 41.30 | 247.96 | 0.7027 | 595.0 | 536.5 | |
| 10 | -15 | 7 | -15 | -13.39 | 345.82 | 41.70 | 244.23 | 0.7210 | 934.1 | 999999 | |
| 8 | -15 | 6 | -15 | -11.71 | 345.27 | 41.16 | 246.13 | 0.7071 | 1464.0 | 999999 | |
| 14 | -15 | 10 | -15 | -13.78 | 345.53 | 41.41 | 243.58 | 0.7197 | 895.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
