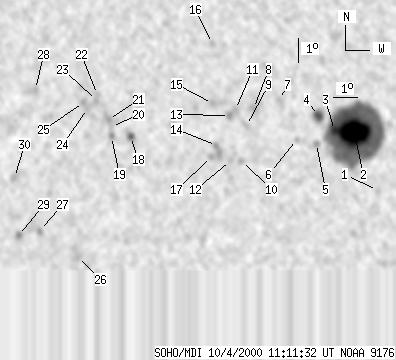

SOHO MDI 2000-10-04 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83 | 637 | 46 | 349 | -8.79 | 323.42 | 19.30 | 231.00 | 0.4201 | -1607.1 | -456.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 6 | 0 | 4 | -11.18 | 326.83 | 22.71 | 232.08 | 0.4822 | 649.0 | 576.8 | |
| 66 | 434 | 37 | 240 | -8.82 | 325.68 | 21.56 | 234.77 | 0.4465 | -1916.8 | -639.9 | |
| 8 | -2 | 4 | -2 | -8.66 | 324.83 | 20.71 | 233.95 | 0.4342 | -1758.0 | 999999 | |
| 7 | 17 | 4 | 9 | -8.03 | 324.12 | 20.01 | 234.21 | 0.4194 | -1312.6 | -953.0 | |
| 0 | 5 | 0 | 3 | -9.16 | 324.10 | 19.98 | 232.04 | 0.4298 | -781.0 | -696.5 | |
| 0 | 4 | 0 | 2 | -8.96 | 323.26 | 19.14 | 231.18 | 0.4174 | -670.0 | -558.8 | |
| 0 | 12 | 0 | 6 | -7.33 | 322.47 | 18.35 | 233.23 | 0.3916 | -704.0 | -549.9 | |
| 0 | 8 | 0 | 4 | -7.65 | 321.41 | 17.30 | 230.90 | 0.3814 | -880.0 | -778.7 | |
| 0 | 8 | 0 | 4 | -8.32 | 321.16 | 17.04 | 229.11 | 0.3852 | -848.0 | -728.2 | |
| 0 | 4 | 0 | 2 | -9.77 | 321.02 | 16.90 | 226.13 | 0.3992 | -861.0 | -816.7 | |
| 0 | 8 | 0 | 4 | -7.67 | 320.68 | 16.56 | 229.63 | 0.3724 | -1001.0 | -855.4 | |
| 0 | 6 | 0 | 3 | -9.71 | 320.57 | 16.45 | 225.45 | 0.3933 | -676.0 | -582.6 | |
| 0 | 9 | 0 | 5 | -7.90 | 320.44 | 16.32 | 228.74 | 0.3720 | -959.0 | -811.4 | |
| 0 | 14 | 0 | 7 | -9.09 | 319.96 | 15.84 | 225.54 | 0.3794 | -1042.0 | -849.9 | |
| 0 | 5 | 0 | 3 | -7.40 | 319.73 | 15.61 | 228.50 | 0.3579 | -807.0 | -714.1 | |
| 0 | 4 | 0 | 2 | -5.01 | 319.66 | 15.54 | 233.78 | 0.3322 | -803.0 | -695.2 | |
| 0 | 6 | 0 | 3 | -9.53 | 319.78 | 15.66 | 224.38 | 0.3823 | -820.0 | -622.9 | |
| 2 | 10 | 1 | 6 | -8.63 | 316.46 | 12.34 | 219.26 | 0.3353 | 749.2 | 541.4 | |
| 0 | 5 | 0 | 3 | -8.61 | 315.69 | 11.58 | 217.51 | 0.3273 | 827.0 | 611.6 | |
| 0 | 7 | 0 | 4 | -8.21 | 315.68 | 11.56 | 218.25 | 0.3219 | 725.0 | 566.7 | |
| 0 | 9 | 0 | 5 | -7.92 | 315.55 | 11.44 | 218.49 | 0.3169 | 1027.0 | 879.5 | |
| 0 | 3 | 0 | 2 | -6.91 | 315.09 | 10.97 | 219.40 | 0.2990 | 819.0 | 744.1 | |
| 0 | 5 | 0 | 3 | -7.15 | 315.05 | 10.94 | 218.81 | 0.3017 | 898.0 | 796.6 | |
| 0 | 8 | 0 | 4 | -7.46 | 314.70 | 10.58 | 217.25 | 0.3022 | 926.0 | 846.8 | |
| 0 | 6 | 0 | 3 | -7.22 | 314.54 | 10.42 | 217.31 | 0.2973 | 1121.0 | 875.7 | |
| 0 | 9 | 0 | 5 | -13.51 | 314.51 | 10.39 | 207.25 | 0.3847 | 881.0 | 725.7 | |
| 0 | 5 | 0 | 3 | -12.37 | 312.93 | 8.81 | 204.91 | 0.3568 | 998.0 | 795.9 | |
| 0 | 6 | 0 | 3 | -6.66 | 312.62 | 8.50 | 212.95 | 0.2713 | 824.0 | 698.8 | |
| 0 | 8 | 0 | 4 | -12.56 | 312.09 | 7.97 | 202.58 | 0.3542 | 1114.0 | 831.1 | |
| 0 | 6 | 0 | 3 | -10.19 | 311.86 | 7.75 | 204.86 | 0.3169 | 906.0 | 730.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
