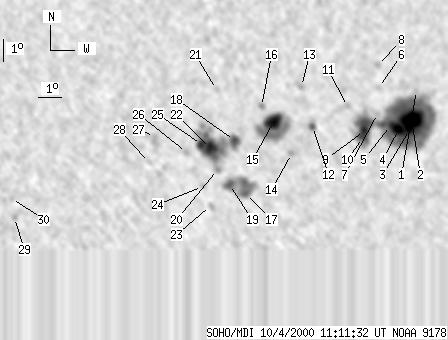

SOHO MDI 2000-10-04 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 132 | 824 | 76 | 475 | -22.03 | 314.80 | 10.69 | 199.73 | 0.5115 | -635.6 | -168.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -20.14 | 318.75 | 14.63 | 208.05 | 0.5063 | -813.0 | -717.9 | |
| 29 | 419 | 17 | 243 | -21.40 | 318.66 | 14.54 | 206.70 | 0.5223 | -1899.2 | -716.2 | |
| 10 | -2 | 6 | -2 | -21.84 | 318.62 | 14.50 | 206.24 | 0.5278 | -1214.7 | 999999 | |
| 12 | -2 | 7 | -2 | -21.83 | 318.14 | 14.02 | 205.50 | 0.5245 | -1441.7 | 999999 | |
| 4 | -2 | 2 | -2 | -21.64 | 317.78 | 13.66 | 205.09 | 0.5197 | -1368.3 | 999999 | |
| 0 | 4 | 0 | 2 | -19.96 | 317.11 | 12.99 | 205.51 | 0.4928 | -462.0 | -290.2 | |
| 0 | 4 | 0 | 2 | -21.10 | 317.17 | 13.05 | 204.58 | 0.5086 | -739.0 | -660.5 | |
| 0 | 6 | 0 | 3 | -19.01 | 316.99 | 12.87 | 206.20 | 0.4791 | 570.0 | 485.1 | |
| 6 | -2 | 4 | -2 | -21.83 | 316.68 | 12.56 | 203.15 | 0.5156 | -1207.8 | 999999 | |
| 5 | -2 | 3 | -2 | -22.14 | 316.62 | 12.50 | 202.80 | 0.5194 | -931.8 | 999999 | |
| 0 | 5 | 0 | 3 | -20.76 | 315.86 | 11.74 | 202.66 | 0.4960 | -796.0 | -665.5 | |
| 3 | 8 | 2 | 5 | -21.60 | 314.44 | 10.32 | 199.54 | 0.5002 | 799.6 | 507.8 | |
| 0 | 5 | 0 | 3 | -19.84 | 313.86 | 9.74 | 199.79 | 0.4720 | -702.0 | -708.2 | |
| 0 | 5 | 0 | 3 | -22.78 | 313.63 | 9.51 | 197.35 | 0.5131 | -506.0 | -438.8 | |
| 23 | 101 | 13 | 57 | -21.35 | 312.77 | 8.66 | 196.74 | 0.4886 | -1243.7 | -277.0 | |
| 0 | 4 | 0 | 2 | -20.68 | 312.23 | 8.11 | 196.15 | 0.4765 | 694.0 | 604.3 | |
| 4 | 70 | 2 | 41 | -24.55 | 311.77 | 7.66 | 193.24 | 0.5311 | 1021.0 | 638.9 | |
| 8 | 16 | 4 | 9 | -22.16 | 311.17 | 7.05 | 193.36 | 0.4942 | 291.3 | 280.7 | |
| 6 | -17 | 4 | -17 | -24.13 | 311.06 | 6.94 | 192.24 | 0.5227 | 722.4 | 999999 | |
| 0 | 6 | 0 | 4 | -23.44 | 310.51 | 6.40 | 191.58 | 0.5110 | 726.0 | 520.0 | |
| 0 | 4 | 0 | 2 | -19.91 | 310.32 | 6.20 | 192.87 | 0.4577 | 745.0 | 674.4 | |
| 17 | 123 | 9 | 70 | -22.50 | 310.17 | 6.05 | 191.38 | 0.4961 | 1498.9 | 994.2 | |
| 0 | 6 | 0 | 4 | -25.07 | 310.29 | 6.18 | 190.56 | 0.5342 | -308.0 | -436.9 | |
| 0 | 5 | 0 | 3 | -24.20 | 309.91 | 5.79 | 190.23 | 0.5205 | 711.0 | 605.4 | |
| 5 | -22 | 3 | -22 | -22.32 | 309.78 | 5.67 | 190.74 | 0.4922 | 1323.8 | 999999 | |
| 0 | 6 | 0 | 3 | -22.67 | 309.16 | 5.05 | 189.46 | 0.4958 | 883.0 | 719.4 | |
| 0 | 12 | 0 | 7 | -21.94 | 307.79 | 3.68 | 187.12 | 0.4819 | 866.0 | 830.6 | |
| 0 | 4 | 0 | 2 | -23.10 | 307.61 | 3.50 | 186.48 | 0.4990 | 457.0 | 358.9 | |
| 0 | 5 | 0 | 3 | -25.58 | 301.87 | -2.25 | 176.18 | 0.5345 | 713.0 | 498.1 | |
| 0 | 3 | 0 | 2 | -24.72 | 301.75 | -2.36 | 175.86 | 0.5217 | 810.0 | 710.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
