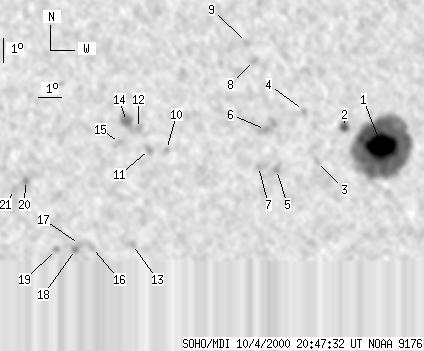

SOHO MDI 2000-10-04 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67 | 610 | 39 | 346 | -8.88 | 323.58 | 24.74 | 237.72 | 0.4891 | -1561.6 | -413.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62 | 440 | 36 | 254 | -8.89 | 325.81 | 26.97 | 240.54 | 0.5166 | -1789.2 | -582.3 | |
| 5 | 13 | 3 | 7 | -8.09 | 324.13 | 25.29 | 240.34 | 0.4887 | -1023.4 | -711.2 | |
| 0 | 5 | 0 | 3 | -9.40 | 323.01 | 24.17 | 236.84 | 0.4845 | -777.0 | -630.1 | |
| 0 | 5 | 0 | 3 | -7.32 | 322.32 | 23.47 | 239.87 | 0.4587 | -798.0 | -735.2 | |
| 0 | 6 | 0 | 3 | -9.64 | 321.31 | 22.47 | 234.45 | 0.4651 | -899.0 | -774.3 | |
| 0 | 31 | 0 | 17 | -8.01 | 320.74 | 21.90 | 236.75 | 0.4435 | -1021.0 | -739.0 | |
| 0 | 5 | 0 | 3 | -9.49 | 320.53 | 21.69 | 233.76 | 0.4539 | -854.0 | -788.7 | |
| 0 | 8 | 0 | 4 | -5.23 | 320.15 | 21.31 | 241.63 | 0.4130 | -912.0 | -775.9 | |
| 0 | 5 | 0 | 2 | -4.51 | 319.79 | 20.95 | 242.80 | 0.4024 | -778.0 | -839.0 | |
| 0 | 4 | 0 | 2 | -8.65 | 316.64 | 17.80 | 229.76 | 0.3976 | 607.0 | 457.3 | |
| 0 | 9 | 0 | 5 | -8.62 | 315.94 | 17.10 | 228.66 | 0.3888 | 621.0 | 555.0 | |
| 0 | 6 | 0 | 3 | -7.76 | 315.45 | 16.61 | 229.55 | 0.3738 | 812.0 | 741.2 | |
| 0 | 5 | 0 | 3 | -12.46 | 315.45 | 16.61 | 221.09 | 0.4265 | 698.0 | 656.4 | |
| 0 | 21 | 0 | 11 | -7.47 | 314.95 | 16.11 | 229.29 | 0.3645 | 1113.0 | 964.2 | |
| 0 | 9 | 0 | 5 | -8.30 | 314.69 | 15.85 | 227.13 | 0.3704 | 807.0 | 593.5 | |
| 0 | 8 | 0 | 5 | -12.53 | 313.80 | 14.96 | 218.04 | 0.4108 | 523.0 | 495.2 | |
| 0 | 4 | 0 | 2 | -12.39 | 313.26 | 14.42 | 217.23 | 0.4037 | 824.0 | 750.4 | |
| 0 | 5 | 0 | 3 | -12.60 | 313.11 | 14.27 | 216.63 | 0.4048 | 958.0 | 820.1 | |
| 0 | 5 | 0 | 2 | -12.57 | 312.33 | 13.49 | 215.13 | 0.3972 | 894.0 | 800.0 | |
| 0 | 7 | 0 | 4 | -9.73 | 310.94 | 12.10 | 216.75 | 0.3468 | 970.0 | 865.4 | |
| 0 | 9 | 0 | 5 | -10.08 | 310.51 | 11.67 | 215.15 | 0.3474 | 431.0 | 567.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
