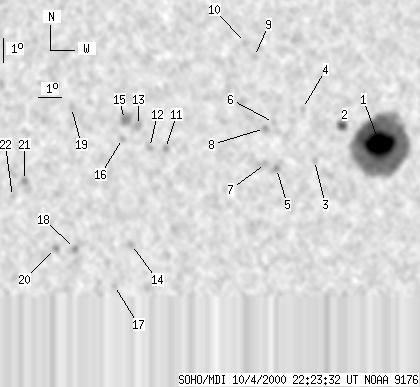

SOHO MDI 2000-10-04 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65 | 556 | 37 | 318 | -8.91 | 323.89 | 25.92 | 239.00 | 0.5043 | -1543.8 | -439.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59 | 419 | 34 | 244 | -8.91 | 325.82 | 27.86 | 241.33 | 0.5283 | -1793.0 | -607.6 | |
| 6 | 12 | 3 | 7 | -8.10 | 324.13 | 26.16 | 241.18 | 0.5003 | -975.2 | -678.4 | |
| 0 | 5 | 0 | 3 | -9.45 | 323.01 | 25.04 | 237.70 | 0.4960 | -637.0 | -479.4 | |
| 0 | 5 | 0 | 3 | -7.33 | 322.34 | 24.38 | 240.81 | 0.4709 | -842.0 | -632.9 | |
| 0 | 6 | 0 | 3 | -9.69 | 321.38 | 23.42 | 235.49 | 0.4774 | -814.0 | -759.5 | |
| 0 | 5 | 0 | 3 | -7.83 | 321.13 | 23.17 | 238.57 | 0.4587 | -848.0 | -779.6 | |
| 0 | 11 | 0 | 6 | -9.47 | 320.89 | 22.93 | 235.31 | 0.4693 | -925.0 | -781.2 | |
| 0 | 6 | 0 | 3 | -8.06 | 320.76 | 22.80 | 237.73 | 0.4556 | -881.0 | -841.5 | |
| 0 | 5 | 0 | 3 | -5.16 | 320.19 | 22.23 | 242.83 | 0.4254 | -827.0 | -824.0 | |
| 0 | 3 | 0 | 1 | -4.59 | 319.80 | 21.83 | 243.61 | 0.4156 | -925.0 | -852.3 | |
| 0 | 4 | 0 | 2 | -8.69 | 316.63 | 18.67 | 231.06 | 0.4087 | 487.0 | 372.5 | |
| 0 | 6 | 0 | 3 | -8.62 | 315.97 | 18.01 | 230.15 | 0.3998 | 705.0 | 588.2 | |
| 0 | 12 | 0 | 6 | -7.72 | 315.47 | 17.51 | 231.15 | 0.3845 | 817.0 | 723.7 | |
| 0 | 5 | 0 | 3 | -12.54 | 315.46 | 17.50 | 222.45 | 0.4367 | 763.0 | 700.0 | |
| 0 | 15 | 0 | 8 | -7.46 | 314.89 | 16.93 | 230.72 | 0.3746 | 1091.0 | 997.6 | |
| 0 | 5 | 0 | 3 | -8.22 | 314.84 | 16.88 | 229.09 | 0.3818 | 919.0 | 782.2 | |
| 0 | 3 | 0 | 2 | -14.21 | 314.87 | 16.91 | 218.96 | 0.4503 | 522.0 | 512.0 | |
| 0 | 8 | 0 | 4 | -12.63 | 313.10 | 15.14 | 218.22 | 0.4136 | 945.0 | 786.9 | |
| 0 | 6 | 0 | 3 | -6.91 | 312.71 | 14.75 | 227.95 | 0.3419 | 776.0 | 603.0 | |
| 0 | 5 | 0 | 3 | -12.61 | 312.32 | 14.35 | 216.79 | 0.4057 | 806.0 | 807.4 | |
| 0 | 6 | 0 | 3 | -9.80 | 310.92 | 12.95 | 218.53 | 0.3562 | 1156.0 | 910.1 | |
| 0 | 4 | 0 | 2 | -10.43 | 310.46 | 12.49 | 216.43 | 0.3599 | 664.0 | 610.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
