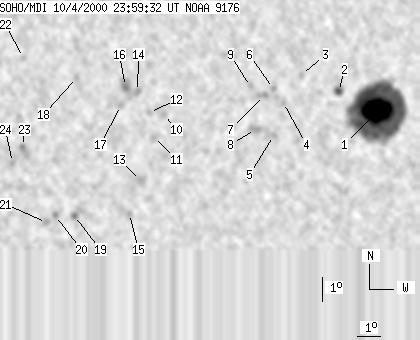

SOHO MDI 2000-10-04 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63 | 572 | 37 | 329 | -9.05 | 323.31 | 26.23 | 238.90 | 0.5095 | -1524.7 | -383.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-04 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60 | 402 | 35 | 237 | -8.96 | 325.88 | 28.80 | 242.05 | 0.5408 | -1773.4 | -610.7 | |
| 3 | 10 | 2 | 6 | -8.10 | 324.08 | 27.00 | 241.94 | 0.5113 | -1137.4 | -806.7 | |
| 0 | 4 | 0 | 3 | -7.34 | 322.41 | 25.33 | 241.75 | 0.4837 | -648.0 | -597.9 | |
| 0 | 4 | 0 | 2 | -8.42 | 321.70 | 24.62 | 239.06 | 0.4824 | -758.0 | -601.5 | |
| 0 | 5 | 0 | 3 | -9.74 | 321.37 | 24.28 | 236.39 | 0.4887 | -735.0 | -767.2 | |
| 0 | 4 | 0 | 2 | -7.84 | 321.23 | 24.15 | 239.63 | 0.4717 | -935.0 | -829.3 | |
| 0 | 9 | 0 | 5 | -8.10 | 320.86 | 23.78 | 238.75 | 0.4689 | -875.0 | -671.0 | |
| 0 | 13 | 0 | 7 | -9.46 | 320.57 | 23.49 | 235.99 | 0.4762 | -833.0 | -729.7 | |
| 0 | 5 | 0 | 3 | -7.71 | 320.24 | 23.16 | 238.79 | 0.4576 | -927.0 | -785.9 | |
| 0 | 8 | 0 | 5 | -8.69 | 316.67 | 19.59 | 232.41 | 0.4200 | 361.0 | 266.9 | |
| 0 | 11 | 0 | 6 | -9.60 | 316.26 | 19.18 | 230.12 | 0.4239 | 801.0 | 678.6 | |
| 0 | 5 | 0 | 3 | -8.58 | 316.04 | 18.96 | 231.69 | 0.4111 | 672.0 | 578.9 | |
| 0 | 13 | 0 | 7 | -11.32 | 315.83 | 18.75 | 226.42 | 0.4368 | 675.0 | 499.3 | |
| 0 | 6 | 0 | 3 | -7.72 | 315.50 | 18.42 | 232.59 | 0.3959 | 871.0 | 733.1 | |
| 0 | 4 | 0 | 2 | -12.66 | 315.46 | 18.38 | 223.68 | 0.4474 | 646.0 | 547.9 | |
| 0 | 17 | 0 | 9 | -7.50 | 315.00 | 17.91 | 232.25 | 0.3873 | 1229.0 | 924.4 | |
| 0 | 6 | 0 | 3 | -8.26 | 314.82 | 17.74 | 230.45 | 0.3927 | 881.0 | 759.2 | |
| 0 | 4 | 0 | 2 | -7.07 | 312.97 | 15.89 | 229.75 | 0.3575 | 747.0 | 649.5 | |
| 0 | 6 | 0 | 3 | -12.66 | 313.17 | 16.09 | 219.89 | 0.4235 | 902.0 | 827.3 | |
| 0 | 5 | 0 | 3 | -12.64 | 312.38 | 15.30 | 218.52 | 0.4153 | 981.0 | 722.3 | |
| 0 | 8 | 0 | 4 | -12.91 | 312.03 | 14.95 | 217.45 | 0.4153 | 713.0 | 625.7 | |
| 0 | 5 | 0 | 2 | -6.21 | 310.80 | 13.72 | 227.45 | 0.3215 | 483.0 | 472.8 | |
| 0 | 14 | 0 | 7 | -9.78 | 310.89 | 13.80 | 220.35 | 0.3647 | 960.0 | 844.3 | |
| 0 | 4 | 0 | 2 | -10.42 | 310.51 | 13.42 | 218.45 | 0.3688 | 900.0 | 732.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
