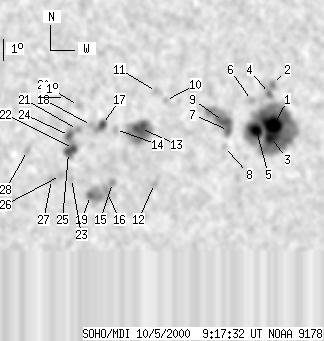

SOHO MDI 2000-10-05 09:17:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99 | 598 | 61 | 369 | -21.84 | 315.86 | 23.89 | 218.74 | 0.6015 | -700.1 | -291.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 09:17:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 300 | 15 | 190 | -21.57 | 318.75 | 26.78 | 222.42 | 0.6235 | -1424.7 | -559.4 | |
| 0 | 7 | 0 | 4 | -19.76 | 318.36 | 26.39 | 224.16 | 0.6027 | 183.0 | -33.1 | |
| 15 | -1 | 10 | -1 | -22.09 | 318.76 | 26.79 | 221.83 | 0.6286 | -836.8 | 999999 | |
| 0 | 12 | 0 | 8 | -20.15 | 318.29 | 26.32 | 223.62 | 0.6057 | -1055.0 | -859.7 | |
| 13 | -1 | 8 | -1 | -21.74 | 317.99 | 26.02 | 221.42 | 0.6183 | -1359.4 | 999999 | |
| 0 | 5 | 0 | 3 | -20.41 | 317.51 | 25.54 | 222.46 | 0.6008 | -754.0 | -675.7 | |
| 4 | 57 | 2 | 35 | -21.68 | 316.68 | 24.71 | 220.06 | 0.6058 | -815.6 | -562.4 | |
| 0 | 5 | 0 | 3 | -22.38 | 316.63 | 24.66 | 219.21 | 0.6125 | -462.0 | -415.4 | |
| 10 | -7 | 6 | -7 | -21.27 | 316.38 | 24.41 | 220.19 | 0.5989 | -1210.7 | 999999 | |
| 0 | 4 | 0 | 2 | -20.22 | 313.59 | 21.62 | 218.06 | 0.5629 | -460.0 | -393.5 | |
| 0 | 4 | 0 | 2 | -19.81 | 313.13 | 21.16 | 217.95 | 0.5543 | -842.0 | -609.6 | |
| 0 | 5 | 0 | 3 | -23.89 | 313.69 | 21.71 | 214.20 | 0.6042 | -441.0 | -411.9 | |
| 14 | 70 | 8 | 42 | -21.40 | 312.65 | 20.68 | 215.52 | 0.5680 | -942.2 | -320.9 | |
| 0 | 5 | 0 | 3 | -21.40 | 311.54 | 19.57 | 214.06 | 0.5589 | -443.0 | -414.2 | |
| 0 | 5 | 0 | 3 | -23.76 | 311.76 | 19.78 | 211.93 | 0.5880 | -58.0 | -70.3 | |
| 0 | 15 | 0 | 9 | -24.11 | 311.54 | 19.57 | 211.31 | 0.5905 | 886.0 | 649.3 | |
| 4 | 15 | 3 | 9 | -21.16 | 310.93 | 18.96 | 213.50 | 0.5511 | 784.6 | 515.4 | |
| 0 | 4 | 0 | 2 | -21.18 | 310.45 | 18.48 | 212.81 | 0.5476 | 798.0 | 749.6 | |
| 3 | 30 | 2 | 18 | -24.31 | 310.85 | 18.88 | 210.23 | 0.5879 | 1101.0 | 545.9 | |
| 0 | 5 | 0 | 3 | -20.28 | 309.77 | 17.80 | 212.80 | 0.5314 | 842.0 | 735.7 | |
| 0 | 5 | 0 | 3 | -21.33 | 309.86 | 17.88 | 211.81 | 0.5448 | 948.0 | 891.4 | |
| 4 | 16 | 2 | 10 | -22.17 | 309.79 | 17.81 | 210.87 | 0.5544 | 1057.0 | 887.6 | |
| 0 | 5 | 0 | 3 | -23.51 | 309.88 | 17.91 | 209.70 | 0.5714 | 482.0 | 403.5 | |
| 4 | 10 | 2 | 6 | -21.59 | 309.54 | 17.56 | 211.10 | 0.5454 | 974.3 | 784.8 | |
| 4 | -22 | 3 | -22 | -22.34 | 309.59 | 17.62 | 210.42 | 0.5550 | 989.1 | 999999 | |
| 0 | 4 | 0 | 2 | -23.35 | 309.37 | 17.40 | 209.14 | 0.5659 | 528.0 | 531.4 | |
| 0 | 5 | 0 | 3 | -23.52 | 308.99 | 17.02 | 208.47 | 0.5654 | 730.0 | 673.9 | |
| 0 | 5 | 0 | 3 | -22.19 | 307.77 | 15.80 | 207.94 | 0.5402 | 985.0 | 825.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
