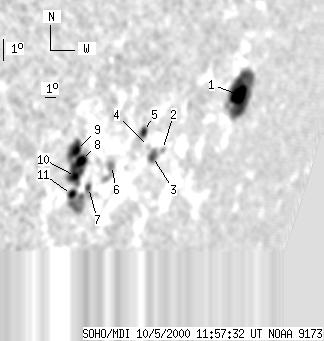

SOHO MDI 2000-10-05 11:57:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44 | 335 | 51 | 385 | -12.06 | 352.38 | 61.88 | 253.08 | 0.8987 | 158.7 | 118.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 11:57:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19 | 135 | 27 | 193 | -11.19 | 358.22 | 67.72 | 255.51 | 0.9391 | -374.8 | -109.6 | |
| 0 | 3 | 0 | 3 | -12.70 | 351.73 | 61.22 | 252.40 | 0.8989 | -223.0 | -107.4 | |
| 0 | 14 | 0 | 15 | -12.91 | 350.99 | 60.48 | 251.98 | 0.8938 | -390.0 | -349.8 | |
| 0 | 1 | 0 | 2 | -12.45 | 350.48 | 59.98 | 252.34 | 0.8892 | -203.0 | -340.3 | |
| 2 | 10 | 2 | 11 | -11.78 | 349.84 | 59.33 | 252.91 | 0.8829 | -484.3 | -325.3 | |
| 0 | 23 | 0 | 23 | -12.96 | 347.82 | 57.31 | 251.03 | 0.8693 | -196.0 | 181.0 | |
| 0 | 14 | 0 | 13 | -13.72 | 346.42 | 55.91 | 249.74 | 0.8596 | 345.0 | 340.2 | |
| 7 | 90 | 6 | 83 | -12.54 | 345.51 | 55.01 | 250.80 | 0.8489 | 824.7 | 653.3 | |
| 8 | -8 | 8 | -8 | -12.08 | 345.02 | 54.52 | 251.16 | 0.8435 | 1009.8 | 999999 | |
| 4 | -8 | 4 | -8 | -13.17 | 345.30 | 54.79 | 250.01 | 0.8487 | 971.8 | 999999 | |
| 4 | 45 | 4 | 42 | -13.90 | 345.28 | 54.77 | 249.17 | 0.8504 | 640.6 | 325.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
