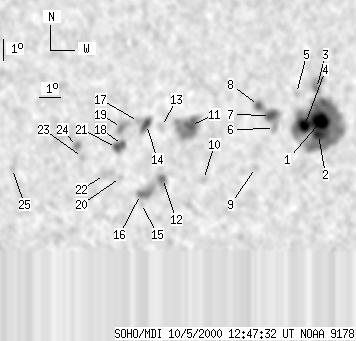

SOHO MDI 2000-10-05 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78 | 603 | 49 | 378 | -21.90 | 315.55 | 25.50 | 220.45 | 0.6164 | -687.6 | -256.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23 | 308 | 15 | 198 | -21.59 | 318.73 | 28.68 | 224.31 | 0.6412 | -1374.9 | -532.7 | |
| 7 | -1 | 4 | -1 | -22.16 | 318.76 | 28.71 | 223.67 | 0.6466 | -829.8 | 999999 | |
| 0 | 22 | 0 | 14 | -20.13 | 318.24 | 28.19 | 225.57 | 0.6234 | -1154.0 | -528.8 | |
| 11 | -1 | 7 | -1 | -21.72 | 318.00 | 27.95 | 223.43 | 0.6356 | -1327.5 | 999999 | |
| 0 | 4 | 0 | 2 | -20.29 | 317.33 | 27.28 | 224.46 | 0.6162 | -722.0 | -599.8 | |
| 0 | 4 | 0 | 2 | -21.78 | 316.60 | 26.55 | 221.94 | 0.6233 | -628.0 | -546.8 | |
| 9 | 18 | 6 | 11 | -21.19 | 316.29 | 26.24 | 222.30 | 0.6149 | -1138.8 | -913.0 | |
| 4 | 13 | 2 | 8 | -20.72 | 315.65 | 25.60 | 222.16 | 0.6044 | -29.6 | -356.7 | |
| 0 | 6 | 0 | 4 | -23.48 | 316.05 | 26.01 | 219.47 | 0.6350 | -555.0 | -480.3 | |
| 0 | 6 | 0 | 4 | -23.89 | 313.71 | 23.66 | 216.46 | 0.6196 | -385.0 | -403.8 | |
| 8 | 63 | 5 | 38 | -21.45 | 312.67 | 22.62 | 217.91 | 0.5850 | -723.1 | -382.2 | |
| 2 | 19 | 1 | 12 | -23.76 | 311.79 | 21.74 | 214.37 | 0.6029 | -159.0 | 169.6 | |
| 0 | 8 | 0 | 5 | -21.44 | 311.36 | 21.31 | 216.31 | 0.5736 | -490.0 | -424.7 | |
| 7 | 23 | 4 | 14 | -21.32 | 310.68 | 20.63 | 215.56 | 0.5665 | 749.0 | 537.4 | |
| 0 | 2 | 0 | 1 | -24.85 | 311.03 | 20.98 | 212.36 | 0.6092 | 592.0 | 485.1 | |
| 0 | 29 | 0 | 18 | -24.44 | 310.91 | 20.86 | 212.61 | 0.6037 | 1052.0 | 521.7 | |
| 0 | 5 | 0 | 3 | -21.17 | 310.30 | 20.25 | 215.23 | 0.5617 | 899.0 | 839.6 | |
| 3 | 18 | 2 | 11 | -22.16 | 309.73 | 19.68 | 213.42 | 0.5685 | 937.5 | 714.3 | |
| 0 | 14 | 0 | 9 | -21.40 | 309.58 | 19.53 | 214.02 | 0.5585 | 959.0 | 849.7 | |
| 0 | 4 | 0 | 2 | -23.63 | 309.86 | 19.82 | 212.10 | 0.5867 | 435.0 | 396.2 | |
| 4 | -18 | 3 | -18 | -22.28 | 309.48 | 19.43 | 212.96 | 0.5680 | 903.8 | 999999 | |
| 0 | 18 | 0 | 11 | -23.47 | 309.12 | 19.07 | 211.30 | 0.5792 | 723.0 | 538.8 | |
| 0 | 5 | 0 | 3 | -22.67 | 308.03 | 17.98 | 210.60 | 0.5616 | 542.0 | 516.8 | |
| 0 | 10 | 0 | 6 | -22.17 | 307.74 | 17.69 | 210.69 | 0.5534 | 906.0 | 740.3 | |
| 0 | 4 | 0 | 2 | -23.05 | 305.00 | 14.95 | 205.89 | 0.5456 | 653.0 | 622.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
