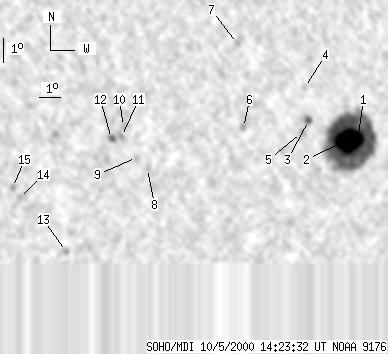

SOHO MDI 2000-10-05 14:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65 | 437 | 42 | 279 | -8.97 | 324.66 | 35.49 | 246.61 | 0.6257 | -1387.7 | -403.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 14:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 358 | 12 | 231 | -9.04 | 326.49 | 37.32 | 247.80 | 0.6490 | -1162.8 | -520.8 | |
| 44 | -1 | 28 | -1 | -9.00 | 325.89 | 36.72 | 247.53 | 0.6414 | -1673.3 | 999999 | |
| 3 | 9 | 2 | 6 | -8.07 | 324.00 | 34.83 | 247.80 | 0.6130 | -831.4 | -675.1 | |
| 0 | 5 | 0 | 3 | -6.73 | 323.68 | 34.51 | 249.68 | 0.6023 | 386.0 | 304.2 | |
| 0 | 8 | 0 | 5 | -8.53 | 323.71 | 34.54 | 246.93 | 0.6117 | -689.0 | -577.1 | |
| 0 | 6 | 0 | 4 | -8.16 | 320.95 | 31.78 | 245.70 | 0.5742 | -972.0 | -832.2 | |
| 0 | 3 | 0 | 2 | -4.79 | 320.43 | 31.26 | 250.96 | 0.5493 | -862.0 | -790.9 | |
| 0 | 4 | 0 | 3 | -9.56 | 316.72 | 27.55 | 240.02 | 0.5287 | 559.0 | 537.6 | |
| 0 | 4 | 0 | 2 | -9.09 | 316.20 | 27.03 | 240.32 | 0.5185 | 739.0 | 638.2 | |
| 0 | 9 | 0 | 5 | -7.81 | 315.53 | 26.36 | 241.92 | 0.5006 | 677.0 | 604.7 | |
| 0 | 4 | 0 | 3 | -8.21 | 315.47 | 26.30 | 241.16 | 0.5026 | 874.0 | 755.8 | |
| 0 | 7 | 0 | 4 | -8.27 | 315.03 | 25.86 | 240.64 | 0.4973 | 1022.0 | 902.8 | |
| 0 | 7 | 0 | 4 | -12.77 | 313.46 | 24.29 | 231.48 | 0.5149 | 730.0 | 634.4 | |
| 0 | 9 | 0 | 5 | -10.47 | 311.23 | 22.06 | 232.56 | 0.4671 | 819.0 | 596.6 | |
| 0 | 4 | 0 | 2 | -10.05 | 310.90 | 21.73 | 232.87 | 0.4592 | 981.0 | 740.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
