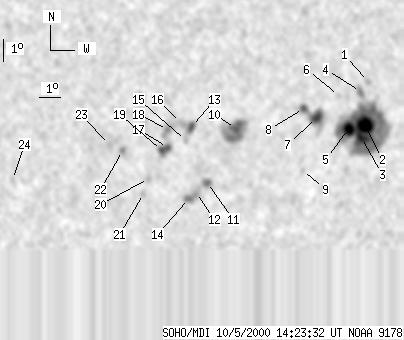

SOHO MDI 2000-10-05 14:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 81 | 583 | 53 | 370 | -21.77 | 315.81 | 26.64 | 221.83 | 0.6251 | -795.0 | -258.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 14:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -19.68 | 318.49 | 29.32 | 227.22 | 0.6305 | -120.0 | -107.2 | |
| 23 | 310 | 15 | 201 | -21.60 | 318.76 | 29.59 | 225.16 | 0.6497 | -1390.3 | -475.2 | |
| 10 | -2 | 7 | -2 | -22.12 | 318.68 | 29.51 | 224.48 | 0.6536 | -872.2 | 999999 | |
| 0 | 10 | 0 | 6 | -20.09 | 318.19 | 29.02 | 226.43 | 0.6312 | -875.0 | -763.5 | |
| 17 | -2 | 11 | -2 | -21.69 | 317.96 | 28.79 | 224.30 | 0.6431 | -1265.7 | 999999 | |
| 0 | 4 | 0 | 2 | -20.20 | 317.18 | 28.01 | 225.30 | 0.6223 | -612.0 | -497.8 | |
| 12 | 63 | 8 | 39 | -21.11 | 316.33 | 27.16 | 223.35 | 0.6226 | -1025.1 | -498.6 | |
| 3 | -7 | 2 | -7 | -20.68 | 315.64 | 26.47 | 223.14 | 0.6121 | 107.4 | 999999 | |
| 0 | 4 | 0 | 3 | -23.44 | 316.16 | 26.99 | 220.52 | 0.6430 | -528.0 | -446.3 | |
| 5 | 70 | 3 | 43 | -21.41 | 312.64 | 23.47 | 218.97 | 0.5919 | -757.9 | -355.2 | |
| 0 | 9 | 0 | 6 | -23.76 | 311.78 | 22.61 | 215.40 | 0.6097 | 30.0 | 21.0 | |
| 0 | 13 | 0 | 8 | -24.19 | 311.35 | 22.18 | 214.46 | 0.6110 | 315.0 | 346.8 | |
| 5 | 11 | 3 | 7 | -21.23 | 310.63 | 21.46 | 216.72 | 0.5725 | 714.6 | 611.4 | |
| 0 | 12 | 0 | 7 | -24.44 | 311.03 | 21.86 | 213.82 | 0.6113 | 990.0 | 685.2 | |
| 0 | 6 | 0 | 4 | -21.83 | 310.45 | 21.28 | 215.83 | 0.5777 | 430.0 | 416.4 | |
| 0 | 8 | 0 | 5 | -21.03 | 310.10 | 20.93 | 216.28 | 0.5658 | 797.0 | 818.0 | |
| 3 | 17 | 2 | 11 | -22.11 | 309.69 | 20.52 | 214.56 | 0.5746 | 908.8 | 717.6 | |
| 0 | 11 | 0 | 7 | -21.31 | 309.57 | 20.40 | 215.27 | 0.5645 | 1068.0 | 816.2 | |
| 3 | -17 | 2 | -17 | -22.23 | 309.44 | 20.27 | 214.11 | 0.5739 | 883.2 | 999999 | |
| 0 | 6 | 0 | 4 | -23.46 | 309.04 | 19.87 | 212.35 | 0.5850 | 555.0 | 591.6 | |
| 0 | 5 | 0 | 3 | -24.13 | 308.92 | 19.75 | 211.54 | 0.5919 | 648.0 | 590.8 | |
| 0 | 10 | 0 | 6 | -22.16 | 307.69 | 18.52 | 211.86 | 0.5595 | 889.0 | 680.0 | |
| 0 | 5 | 0 | 3 | -21.87 | 307.08 | 17.91 | 211.30 | 0.5514 | 311.0 | 396.7 | |
| 0 | 4 | 0 | 2 | -23.29 | 303.00 | 13.83 | 204.01 | 0.5418 | 562.0 | 518.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
