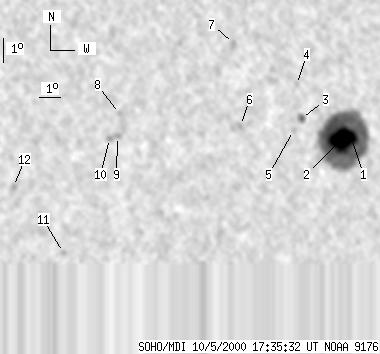

SOHO MDI 2000-10-05 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54 | 407 | 36 | 265 | -8.90 | 325.24 | 37.83 | 248.17 | 0.6541 | -1343.2 | -457.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13 | 352 | 8 | 233 | -8.98 | 326.58 | 39.17 | 248.88 | 0.6711 | -1103.3 | -524.1 | |
| 39 | -1 | 26 | -1 | -9.02 | 326.03 | 38.62 | 248.54 | 0.6646 | -1571.9 | 999999 | |
| 2 | 10 | 2 | 6 | -8.04 | 323.97 | 36.56 | 248.86 | 0.6347 | -724.0 | -633.0 | |
| 0 | 3 | 0 | 2 | -6.65 | 323.60 | 36.19 | 250.73 | 0.6235 | 393.0 | 261.0 | |
| 0 | 4 | 0 | 2 | -8.49 | 323.63 | 36.22 | 248.00 | 0.6327 | -573.0 | -472.6 | |
| 0 | 3 | 0 | 2 | -8.12 | 321.05 | 33.64 | 247.00 | 0.5980 | -1008.0 | -860.7 | |
| 0 | 8 | 0 | 5 | -4.82 | 320.48 | 33.06 | 251.95 | 0.5740 | -769.0 | -686.3 | |
| 0 | 5 | 0 | 3 | -7.31 | 315.45 | 28.04 | 244.28 | 0.5196 | 717.0 | 590.6 | |
| 0 | 6 | 0 | 3 | -8.23 | 315.43 | 28.02 | 242.68 | 0.5254 | 908.0 | 858.0 | |
| 0 | 5 | 0 | 3 | -8.29 | 315.08 | 27.67 | 242.27 | 0.5212 | 827.0 | 729.6 | |
| 0 | 5 | 0 | 3 | -12.83 | 313.47 | 26.06 | 233.34 | 0.5361 | 655.0 | 536.5 | |
| 0 | 6 | 0 | 3 | -10.02 | 311.02 | 23.61 | 235.21 | 0.4822 | 704.0 | 712.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
