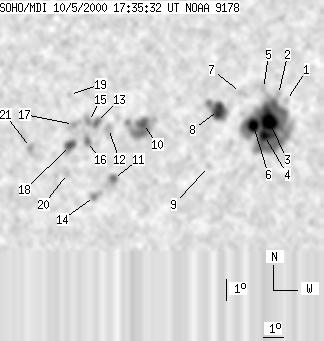

SOHO MDI 2000-10-05 17:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72 | 575 | 47 | 369 | -21.68 | 315.93 | 28.52 | 223.86 | 0.6410 | -830.0 | -284.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 17:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -20.71 | 319.36 | 31.95 | 228.35 | 0.6648 | -483.0 | -432.3 | |
| 0 | 6 | 0 | 4 | -20.42 | 318.90 | 31.49 | 228.30 | 0.6581 | -266.0 | -278.8 | |
| 21 | 296 | 14 | 196 | -21.63 | 318.75 | 31.34 | 226.72 | 0.6664 | -1331.3 | -490.9 | |
| 9 | -3 | 6 | -3 | -22.19 | 318.64 | 31.23 | 225.97 | 0.6701 | -869.8 | 999999 | |
| 0 | 8 | 0 | 5 | -20.11 | 318.11 | 30.70 | 227.97 | 0.6477 | -933.0 | -761.3 | |
| 11 | -3 | 7 | -3 | -21.71 | 317.99 | 30.58 | 225.95 | 0.6599 | -1267.2 | 999999 | |
| 0 | 9 | 0 | 6 | -20.22 | 317.03 | 29.62 | 226.84 | 0.6380 | -387.0 | -483.1 | |
| 18 | 49 | 11 | 32 | -20.95 | 316.14 | 28.72 | 225.11 | 0.6358 | -846.7 | -462.0 | |
| 0 | 5 | 0 | 3 | -23.42 | 316.21 | 28.80 | 222.35 | 0.6586 | -524.0 | -450.3 | |
| 7 | 77 | 5 | 48 | -21.33 | 312.70 | 25.29 | 221.12 | 0.6074 | -804.5 | -268.3 | |
| 0 | 19 | 0 | 12 | -23.72 | 311.77 | 24.36 | 217.44 | 0.6234 | -164.0 | 78.1 | |
| 0 | 19 | 0 | 11 | -21.47 | 311.12 | 23.71 | 219.18 | 0.5946 | -688.0 | -459.6 | |
| 0 | 8 | 0 | 5 | -21.18 | 310.53 | 23.11 | 218.81 | 0.5863 | 892.0 | 679.0 | |
| 0 | 10 | 0 | 6 | -24.49 | 311.04 | 23.63 | 215.82 | 0.6255 | 831.0 | 617.9 | |
| 0 | 11 | 0 | 6 | -21.12 | 310.15 | 22.74 | 218.44 | 0.5824 | 830.0 | 807.9 | |
| 0 | 11 | 0 | 7 | -22.00 | 310.26 | 22.84 | 217.57 | 0.5927 | 769.0 | 571.5 | |
| 0 | 10 | 0 | 6 | -21.22 | 309.49 | 22.08 | 217.52 | 0.5777 | 1037.0 | 865.1 | |
| 6 | 20 | 4 | 12 | -22.14 | 309.51 | 22.10 | 216.51 | 0.5879 | 991.7 | 654.3 | |
| 0 | 4 | 0 | 2 | -19.90 | 309.11 | 21.70 | 218.57 | 0.5599 | 705.0 | 626.8 | |
| 0 | 3 | 0 | 2 | -23.39 | 309.59 | 22.17 | 215.28 | 0.6021 | 584.0 | 593.9 | |
| 0 | 6 | 0 | 3 | -22.15 | 307.71 | 20.30 | 214.24 | 0.5732 | 788.0 | 744.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
