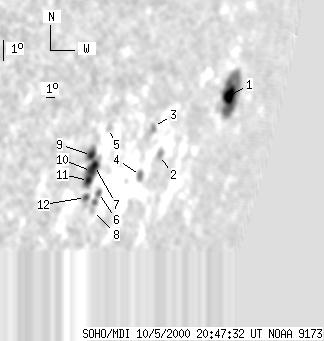

SOHO MDI 2000-10-05 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 203 | 48 | 290 | -11.97 | 353.20 | 67.55 | 254.52 | 0.9351 | 194.3 | 93.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 20:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 92 | 26 | 167 | -11.22 | 358.06 | 72.41 | 256.38 | 0.9633 | -299.0 | -47.7 | |
| 0 | 8 | 0 | 10 | -12.91 | 351.16 | 65.51 | 253.24 | 0.9280 | -213.0 | -293.7 | |
| 0 | 6 | 0 | 8 | -11.61 | 349.98 | 64.33 | 254.34 | 0.9186 | -320.0 | -337.5 | |
| 0 | 9 | 0 | 11 | -13.57 | 349.70 | 64.04 | 252.19 | 0.9197 | -309.0 | -286.8 | |
| 0 | 7 | 0 | 7 | -11.28 | 345.98 | 60.32 | 253.73 | 0.8895 | -157.0 | -203.4 | |
| 0 | 13 | 0 | 15 | -13.90 | 346.21 | 60.55 | 250.93 | 0.8963 | 396.0 | 356.2 | |
| 6 | 56 | 6 | 60 | -12.72 | 345.39 | 59.74 | 251.99 | 0.8878 | 692.6 | 599.2 | |
| 0 | 5 | 0 | 5 | -14.63 | 346.04 | 60.39 | 250.11 | 0.8965 | 147.0 | 187.0 | |
| 5 | -7 | 5 | -7 | -12.27 | 344.98 | 59.33 | 252.37 | 0.8838 | 857.4 | 999999 | |
| 5 | -7 | 5 | -7 | -12.95 | 345.24 | 59.59 | 251.70 | 0.8872 | 881.5 | 999999 | |
| 5 | -7 | 5 | -7 | -13.31 | 345.15 | 59.49 | 251.29 | 0.8872 | 816.4 | 999999 | |
| 1 | 7 | 1 | 7 | -14.01 | 345.20 | 59.55 | 250.54 | 0.8890 | 491.5 | 431.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
