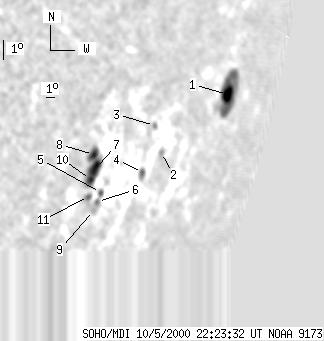

SOHO MDI 2000-10-05 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 199 | 45 | 300 | -11.98 | 353.47 | 68.70 | 254.76 | 0.9416 | 232.6 | 77.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11 | 96 | 22 | 182 | -11.23 | 358.01 | 73.24 | 256.52 | 0.9670 | -293.8 | -70.5 | |
| 0 | 6 | 0 | 9 | -12.84 | 351.24 | 66.47 | 253.52 | 0.9338 | -347.0 | -281.0 | |
| 0 | 4 | 0 | 5 | -11.61 | 349.95 | 65.18 | 254.53 | 0.9241 | -265.0 | -284.4 | |
| 0 | 10 | 0 | 13 | -13.50 | 349.72 | 64.95 | 252.49 | 0.9254 | -310.0 | -314.1 | |
| 0 | 6 | 0 | 6 | -13.95 | 346.18 | 61.41 | 251.12 | 0.9025 | 308.0 | 332.4 | |
| 0 | 5 | 0 | 6 | -14.31 | 346.10 | 61.33 | 250.71 | 0.9026 | 305.0 | 351.4 | |
| 12 | 61 | 13 | 66 | -12.88 | 345.31 | 60.53 | 252.04 | 0.8941 | 763.3 | 548.6 | |
| 6 | -7 | 6 | -7 | -12.27 | 344.90 | 60.13 | 252.59 | 0.8899 | 710.0 | 999999 | |
| 0 | 5 | 0 | 6 | -14.66 | 345.93 | 61.16 | 250.28 | 0.9020 | 215.0 | 153.1 | |
| 4 | -7 | 4 | -7 | -13.31 | 345.07 | 60.30 | 251.51 | 0.8932 | 748.7 | 999999 | |
| 0 | 6 | 0 | 7 | -14.01 | 345.22 | 60.44 | 250.78 | 0.8957 | 488.0 | 418.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
