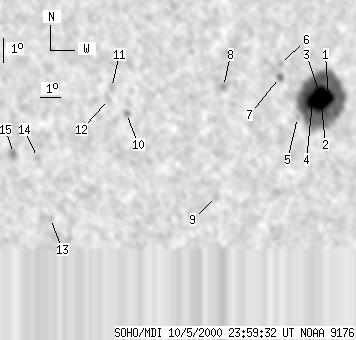

SOHO MDI 2000-10-05 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51 | 395 | 36 | 273 | -9.06 | 325.00 | 41.11 | 249.59 | 0.6940 | -1267.0 | -382.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-10-05 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 331 | 17 | 232 | -8.94 | 326.65 | 42.76 | 250.65 | 0.7132 | -1034.3 | -464.2 | |
| -1 | -1 | -1 | -1 | -9.24 | 326.32 | 42.43 | 250.11 | 0.7105 | 999999 | 999999 | |
| 13 | -1 | 9 | -1 | -8.74 | 326.14 | 42.25 | 250.69 | 0.7065 | -1556.2 | 999999 | |
| 14 | -1 | 10 | -1 | -9.08 | 325.82 | 41.93 | 250.09 | 0.7041 | -1699.6 | 999999 | |
| 0 | 3 | 0 | 2 | -9.67 | 325.11 | 41.22 | 248.97 | 0.6983 | -769.0 | -680.9 | |
| 0 | 4 | 0 | 3 | -7.42 | 323.94 | 40.04 | 251.53 | 0.6750 | -730.0 | -536.1 | |
| 0 | 5 | 0 | 4 | -7.98 | 323.95 | 40.06 | 250.74 | 0.6774 | -755.0 | -638.8 | |
| 0 | 7 | 0 | 5 | -8.14 | 321.15 | 37.26 | 249.11 | 0.6438 | -920.0 | -865.2 | |
| 0 | 8 | 0 | 5 | -12.60 | 321.43 | 37.54 | 242.97 | 0.6698 | -315.0 | -205.4 | |
| 0 | 5 | 0 | 3 | -8.92 | 316.57 | 32.68 | 245.16 | 0.5900 | 846.0 | 692.2 | |
| 0 | 6 | 0 | 4 | -7.82 | 315.77 | 31.88 | 246.33 | 0.5735 | 568.0 | 526.8 | |
| 0 | 8 | 0 | 5 | -8.30 | 315.68 | 31.78 | 245.51 | 0.5749 | 680.0 | 610.2 | |
| 0 | 3 | 0 | 2 | -12.99 | 313.53 | 29.64 | 236.57 | 0.5796 | 554.0 | 491.7 | |
| 0 | 6 | 0 | 3 | -10.46 | 312.65 | 28.75 | 239.67 | 0.5502 | 650.0 | 540.0 | |
| 0 | 9 | 0 | 5 | -10.24 | 311.55 | 27.65 | 239.04 | 0.5348 | 1112.0 | 847.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
